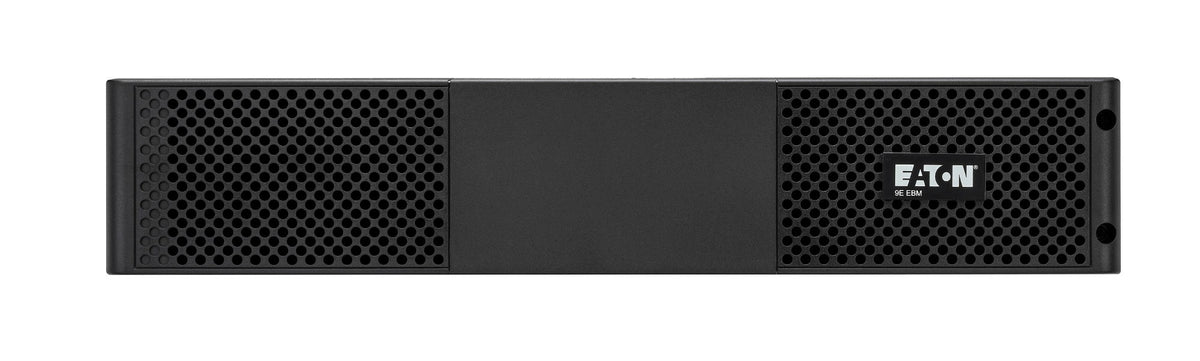

Eaton 9EEBM72R | 9E Extended Battery Module, 72V, 2U Rack, 2kVA/3kVA UPS

Eaton 9EEBM72R | 9E Extended Battery Module, 72V, 2U Rack, 2kVA/3kVA UPS

9EEBM72R

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 9E Extended Battery Module (EBM) is a 2U rack-mounted UPS battery expansion unit designed to significantly extend the runtime of Eaton 9E 2kVA and 3kVA rack UPS systems. Housing 12 sealed lead-acid (VRLA) batteries at a nominal 72V DC, this module installs in any standard 19-inch rack enclosure and connects directly to compatible 9E UPS units to deliver the additional backup time critical infrastructure demands.

Built for reliability and compliance, the 9EEBM72R is CE Marked and TUV certified, meeting IEC/EN 62040-1 and IEC/EN 62040-2 safety standards. The compact 2U chassis minimises rack space consumption while its replaceable batteries support long-term serviceability. Includes a rack-mounting kit, quickstart guide, and safety documentation for straightforward deployment. Available now at iptrading.com.au — competitive prices and local support.

Features

- Extends runtime of compatible Eaton 9E 2kVA and 3kVA rack UPS systems
- Houses 12 replaceable 12V/9Ah sealed lead-acid (VRLA) batteries in a single 2U chassis
- Designed for standard 19-inch rack installation with included rack-mounting kit
- Supports hot-swap battery replacement for extended serviceability
- Compact 2U form factor minimises rack space consumption
- CE Marked and TUV certified for regulatory compliance
- Compliant with IEC/EN 62040-1 and IEC/EN 62040-2 safety standards
- Includes rack-mounting kit, quickstart guide, and safety instructions

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Battery Voltage: 72V DC
- Battery Type: Sealed Lead-Acid (VRLA)
- Individual Battery Rating: 12V / 9Ah (9,000 mAh)
- Number of Batteries: 12
- Form Factor: 2U Rack
- Rack Compatibility: 482.6 mm (19-inch) standard rack
- Dimensions (W x H x D): 438 x 86.5 x 608 mm
- Weight: 41.6 kg
- Operating Temperature: 0°C to 40°C
- Relative Humidity: 0–96% non-condensing
- Colour: Black
- Certifications: CE, TUV, IEC/EN 62040-1, IEC/EN 62040-2

FAQs

Q: Which Eaton UPS models is the 9EEBM72R compatible with?
A: The 9EEBM72R is designed specifically to extend the runtime of Eaton 9E 2kVA and 3kVA rack-mount UPS systems. It is not compatible with other Eaton UPS families such as the 5PX or 9PX.

Q: How much additional runtime does the 9EEBM72R provide?
A: The additional runtime depends on your connected load. At lighter loads, the extended battery module can significantly multiply runtime beyond the internal UPS batteries. For accurate runtime estimates at your specific load level, refer to the Eaton runtime calculator or contact our team.

Q: How many EBMs can I connect to a single Eaton 9E UPS?
A: The number of EBMs that can be connected depends on the specific 9E UPS model. Refer to your UPS documentation or contact Eaton or IP Trading for guidance on the maximum number of supported modules for your configuration.

Q: Are the batteries inside the 9EEBM72R replaceable?
A: Yes. The 9EEBM72R supports hot-swap battery replacement. The module houses 12 individual 12V/9Ah sealed lead-acid batteries that can be replaced to extend the service life of the unit without purchasing an entirely new EBM.

Q: Is the 9EEBM72R available in Australia and can I get local support?
A: Yes. The Eaton 9EEBM72R is available through iptrading.com.au with competitive pricing and local Australian support. Contact our team for stock availability, volume pricing, and pre-sales technical assistance.

Q: Does the 9EEBM72R require special rack hardware to install?
A: No special tools are required beyond what is supplied. The 9EEBM72R includes a rack-mounting kit for installation into any standard 19-inch (482.6 mm) rack enclosure, along with a quickstart guide and safety instructions.
