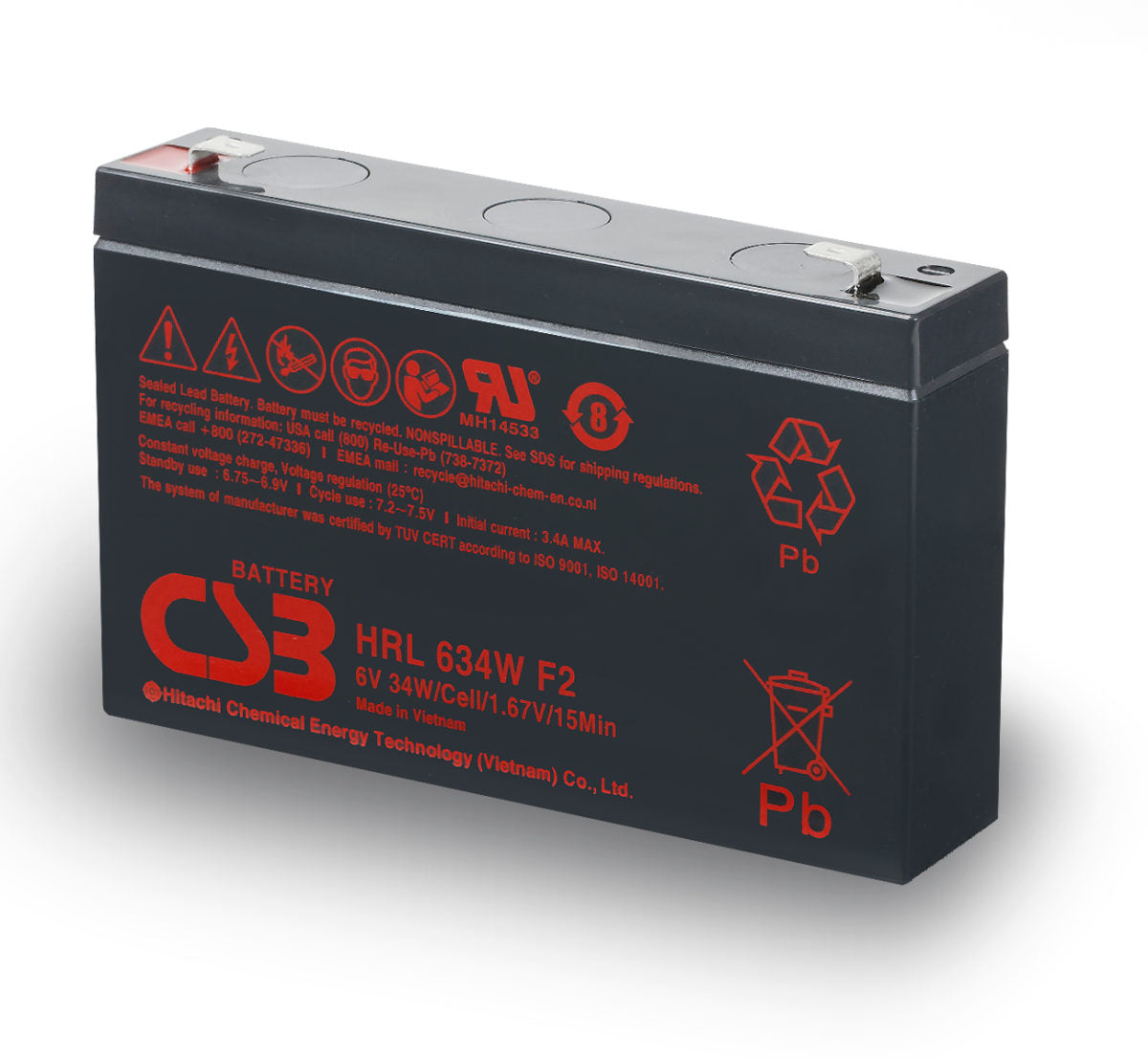

• Eaton HRL634WF2 CSB 6V 9Ah F2 lead-acid battery with red labels
1 1

Eaton

Eaton HRL634WF2 | HRL634W 6V 9Ah UPS Replacement Battery, F2, Top Terminal

Eaton HRL634WF2 | HRL634W 6V 9Ah UPS Replacement Battery, F2, Top Terminal

Authorised Eaton Partner

HRL634WF2

In stock:4

$46.55 inc. GST
$42.32 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton HRL634WF2 is a 6V, 9Ah sealed lead-acid UPS replacement battery from the HRL634W High Rate Long Life series. It features top terminals with an F2 (0.250 inch faston) connection and a flame-retardant casing, and is designed for the high-rate discharge demands of UPS applications.

This service battery is suited to Eaton 5P series rack-mount UPS models, for example the 5P650iR (2 required) and 5P850iR (4 required). Its sealed, maintenance-free construction makes it a practical like-for-like replacement when restoring runtime on an ageing UPS.

Features

- High-rate discharge design for UPS applications
- Long-life construction
- Flame-retardant (FR) casing
- Sealed, maintenance-free lead-acid design
- Top F2 faston terminals for straightforward connection
- Replacement battery for Eaton 5P series UPS

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Nominal voltage: 6V
- Nominal capacity: 9Ah
- Capacity: 34W at the 15-minute rate to 1.67V per cell at 25 C
- Chemistry: Sealed lead-acid (VRLA)
- Cells per unit: 3
- Terminals: Top, F2 (0.250 inch faston)
- Casing: Flame retardant (FR)
- Maximum discharge current: 130A (5 sec)
- Internal resistance: approx. 8.3 mOhm
- Dimensions (L x W x H): approx. 151 x 34 x 98 mm
- Weight: approx. 1.32 kg

FAQs

Q: Which Eaton UPS models use the HRL634WF2 battery?
A: It is compatible with Eaton 5P rack-mount models, for example the 5P650iR (2 batteries required) and 5P850iR (4 batteries required).

Q: What terminal type does the HRL634WF2 use?
A: It has top terminals with an F2 connection, which is a 0.250 inch faston tab.

Q: What are the voltage and capacity of this battery?
A: It is a 6V, 9Ah sealed lead-acid battery, delivering 34W at the 15-minute rate to 1.67V per cell at 25 C.

Q: Is the HRL634WF2 maintenance-free?
A: Yes. It is a sealed lead-acid (VRLA) design that does not require topping up or routine electrolyte maintenance.

Q: Does the battery have a flame-retardant casing?
A: Yes. The HRL634WF2 uses a flame-retardant (FR) casing.

Q: What are the physical dimensions of the battery?
A: Each unit measures approximately 151 x 34 x 98 mm (L x W x H) and weighs approximately 1.32 kg.
