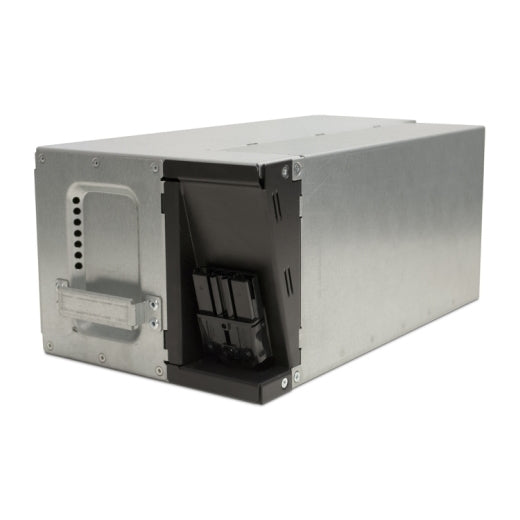

APC APCRBC143 | RBC143 Replacement Battery Cartridge, 120V 5Ah, 2-Year Warranty

APC APCRBC143 | RBC143 Replacement Battery Cartridge, 120V 5Ah, 2-Year Warranty

Authorised APC Partner

APCRBC143

In stock:40

$656.54 inc. GST
$596.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APCRBC143 is a genuine APC Replacement Battery Cartridge #143 for Smart-UPS X units, built around a sealed, maintenance-free 120V 5Ah lead-acid battery. It restores runtime on compatible SMX2200HV, SMX2200HVNC, SMX3000HV, SMX3000HVNC and SMX120BP models, and it is covered by a 2-year repair or replace warranty.

The cartridge is hot-swappable, so protected equipment stays powered while the battery is replaced. It arrives fully assembled and ready to install, uses leak-proof VRLA construction with 10 battery blocks per string, and supports APC-authorised recycling. Expected battery life is 3-5 years.

Features

- Genuine APC RBC tested and certified for compatibility to restore original UPS performance
- Hot-swappable, so protected equipment stays powered during replacement
- Leak-proof sealed lead-acid battery
- Fully assembled and ready for use
- Brand new battery shipped from a strictly managed warehouse
- Supports APC-authorised recycling

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Battery voltage: 120V DC
- Capacity: 5Ah (600 VAh)
- Chemistry: sealed, maintenance-free VRLA lead-acid with suspended electrolyte, leakproof
- Battery blocks per string: 10
- Hot-swappable
- Expected battery life: 3-5 years
- Warranty: 2-year repair or replace
- Net weight: 22.27 kg
- Dimensions (max): 225 mm H x 279 mm W x 481 mm D
- Operating temperature: 0-40 °C; storage: -15 to 45 °C
- Operating humidity: 0-95%
- Operating elevation: 0-3000 m
- RoHS compliant, REACH: contains no SVHCs
- Compatible: SMX2200HV, SMX2200HVNC, SMX3000HV, SMX3000HVNC, SMX120BP

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which UPS models is the APCRBC143 compatible with?
A: It is designed for the APC Smart-UPS X models SMX2200HV, SMX2200HVNC, SMX3000HV, SMX3000HVNC and SMX120BP.

Q: Can the battery be replaced while the UPS is running?
A: Yes. The RBC143 is hot-swappable, so connected equipment stays powered during replacement.

Q: What is the battery voltage and capacity?
A: It is a 120V DC, 5Ah (600 VAh) sealed lead-acid battery made up of 10 battery blocks per string.

Q: How long does the battery last?
A: Expected battery life is 3-5 years, depending on operating conditions.

Q: What type of battery chemistry does it use?
A: It uses a sealed, maintenance-free VRLA lead-acid design with suspended electrolyte, which makes it leakproof.

Q: What warranty does the RBC143 carry?
A: It is covered by a 2-year repair or replace warranty.
