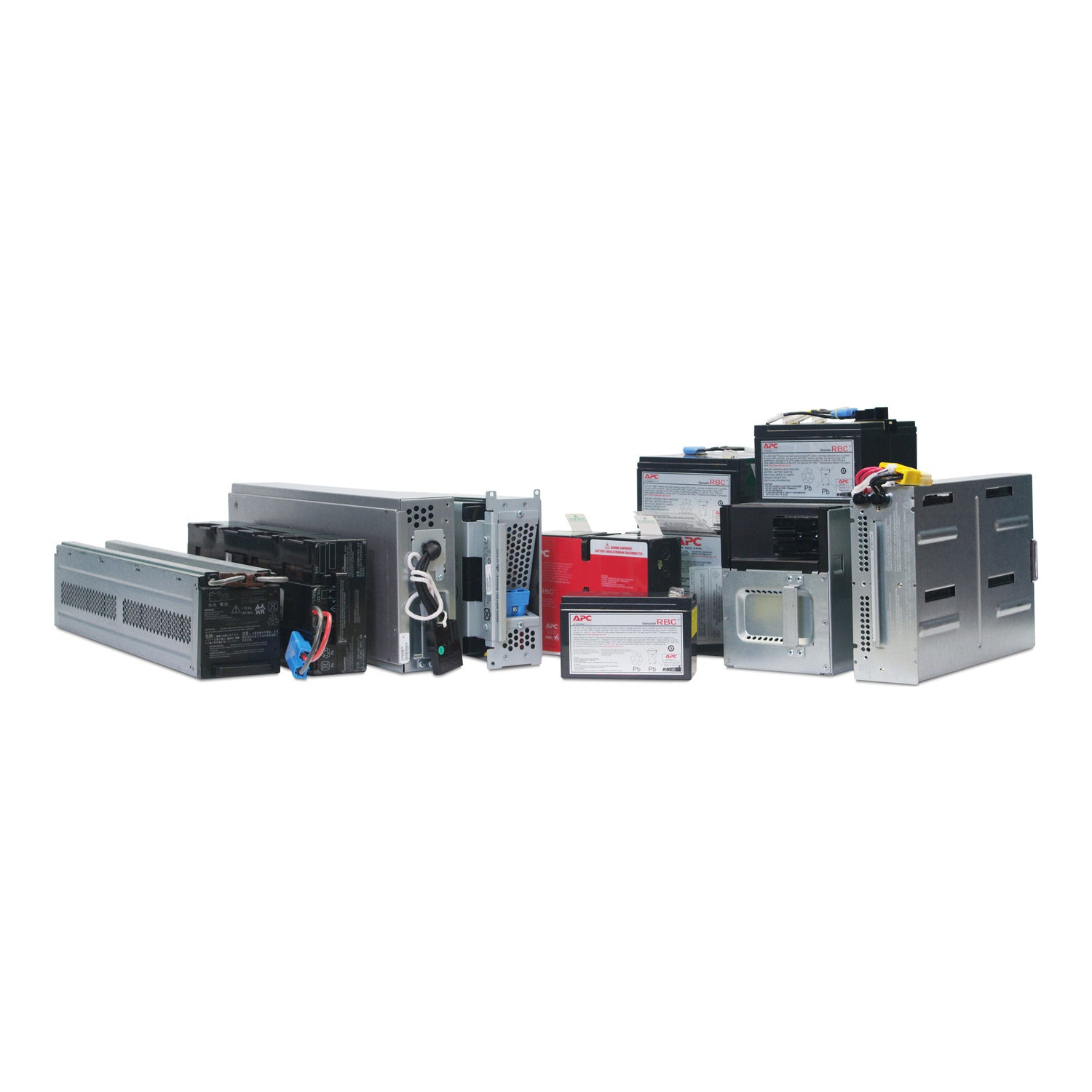

• APC APCRBC140 192V replacement battery cartridge with gray power supplies

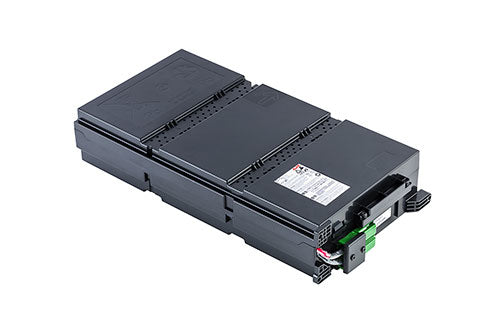

  • APC APCRBC141 black battery module with green terminals and white label
1 2

APC

APC APCRBC141 | RBC #141 Replacement Battery Cartridge, 12V 5.1Ah, 2-Year Warranty

APC APCRBC141 | RBC #141 Replacement Battery Cartridge, 12V 5.1Ah, 2-Year Warranty

Authorised APC Partner

APCRBC141

In stock:30

$530.04 inc. GST
$481.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC RBC #141 replacement battery cartridge is a sealed, maintenance-free, leak-proof lead-acid (VRLA) battery pack rated at 12V 5.1Ah and 360 VAh. It restores runtime on compatible Smart-UPS On-Line (SRT) units and arrives fully assembled and ready to install, backed by a 2-year repair or replace warranty.

The cartridge is hot-swappable, so it can be replaced without taking connected equipment offline. It suits SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLA, SRT2200XLI, SRT72BP and SRT72RMBP units, with an expected battery life of 3-5 years.

Features

- Leak-proof sealed lead-acid battery
- Fully assembled and ready for use
- Hot-swappable, so no network downtime is needed for installation
- Tested and certified for compatibility to restore UPS performance to original specifications
- Supports APC-authorised recycling
- Packaging made with recycled cardboard

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Battery cartridge type: APC RBC #141
- Cell rating: 12V 5.1Ah
- Chemistry: sealed, maintenance-free, leak-proof lead-acid (VRLA)
- Battery energy: 360 VAh
- Hot-swappable
- Expected battery life: 3-5 years
- Warranty: 2-year repair or replace
- Dimensions (approx.): 210 x 76 x 400 mm
- Weight (approx.): 11.7 kg
- Colour: Black
- Compatible with: SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLA, SRT2200XLI, SRT72BP, SRT72RMBP

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which UPS models is the APC RBC #141 compatible with?
A: It is compatible with the Smart-UPS On-Line models SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLA, SRT2200XLI, SRT72BP and SRT72RMBP.

Q: Can the battery be replaced while the UPS is running?
A: Yes. The RBC #141 is hot-swappable, so it can be replaced without shutting down connected equipment.

Q: What battery chemistry does the RBC #141 use?
A: It uses a sealed, maintenance-free, leak-proof lead-acid (VRLA) battery rated at 12V 5.1Ah and 360 VAh.

Q: How long does the RBC #141 battery last?
A: Expected battery life is 3-5 years, depending on operating temperature, load and discharge cycles.

Q: Does the replacement cartridge need assembly?
A: No. It is supplied fully assembled and ready to install in a compatible UPS.

Q: What warranty applies to the RBC #141?
A: It carries a 2-year repair or replace warranty.
