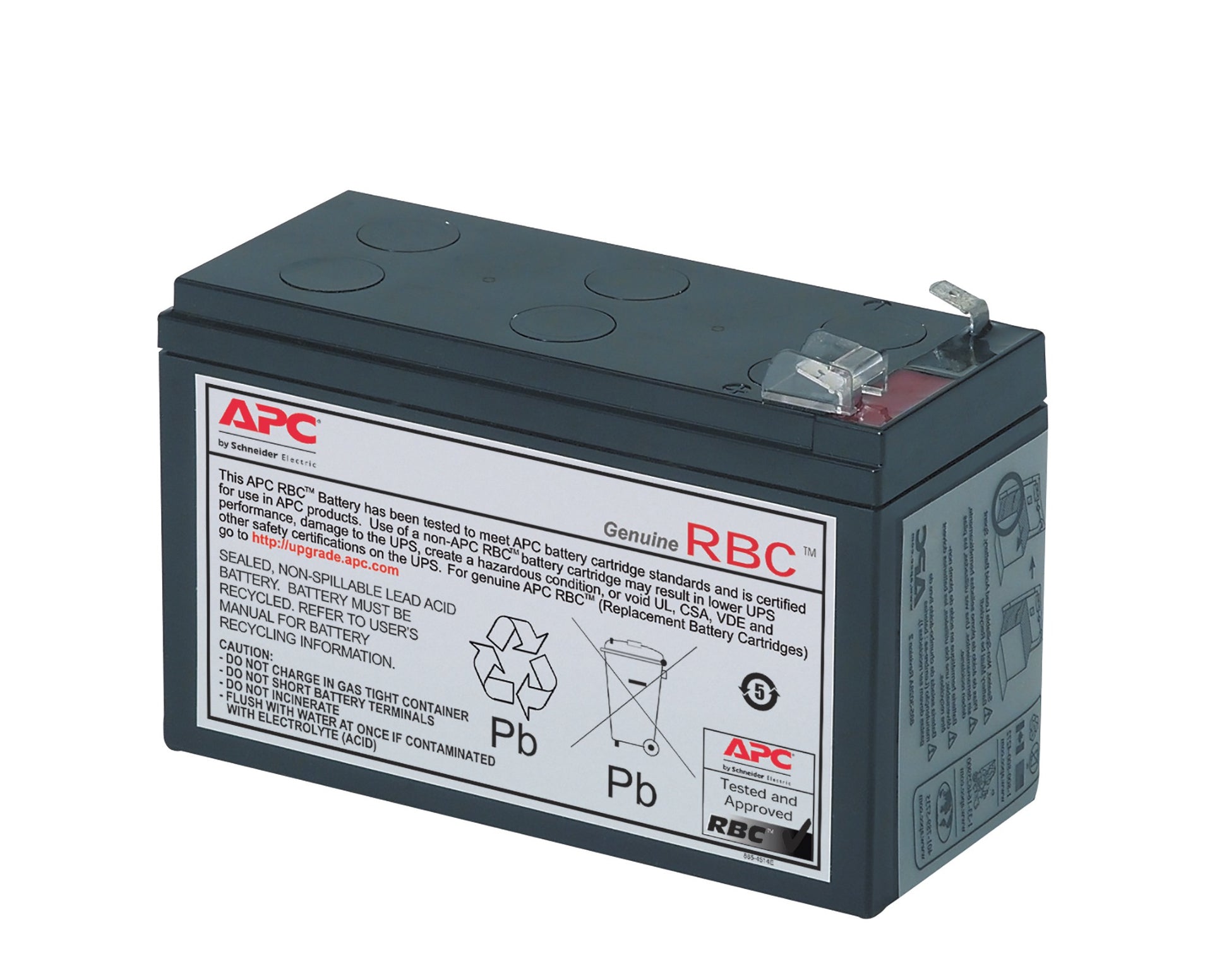

• APC RBC17 9Ah 12VDC replacement battery cartridge with silver terminals
1 1

APC

APC RBC17 | Replacement Battery Cartridge, 12V 9Ah, Lead-Acid

APC RBC17 | Replacement Battery Cartridge, 12V 9Ah, Lead-Acid

Authorised APC Partner

RBC17

In stock:35

$81.82 inc. GST
$74.38 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC RBC17 is a sealed lead-acid replacement battery cartridge rated at 12V and 9Ah, designed for compatible APC Back-UPS units. It restores runtime in an ageing UPS as a stand-alone, internally installed battery, and ships with the connectors needed for installation.

The cartridge measures 65 x 94 x 151 mm and weighs 2.59 kg, and it comes with an installation guide and a battery recycling guide. Packaging is reusable and made from recycled cardboard with no single-use plastic, and the battery is RoHS compliant. It is suitable for models including the BE650G1, BE750G, BR700G, BE850M2, BE850G2, BX850M, BE650G, BN600, BN700MC and BN900M.

Features

- Direct replacement cartridge for compatible APC Back-UPS models
- Includes all required connectors for installation
- Includes installation guide and battery recycling guide
- Reusable packaging made with recycled cardboard, no single-use plastic
- RoHS compliant
- 2-year repair or replace warranty

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Replacement battery cartridge (RBC17)
- Battery chemistry: lead-acid
- Battery voltage: 12 V
- Battery capacity: 9.0 Ah
- Dimensions (H x W x D): 65 x 94 x 151 mm
- Net weight: 2.59 kg
- Colour: Black
- Battery location: internal
- Mounting: stand-alone battery stack, not rack-mountable
- Operating temperature: 0 to 40 C
- Storage temperature: -15 to 45 C
- Relative humidity: 0 to 95 %
- Supplied with: all required connectors, installation guide, battery recycling guide
- Warranty: 24 months

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which APC Back-UPS models is the RBC17 compatible with?
A: The RBC17 is suitable for models including the BE650G1, BE750G, BR700G, BE850M2, BE850G2, BX850M, BE650G, BN600, BN700MC and BN900M.

Q: What are the electrical specifications of the RBC17?
A: It is a lead-acid battery cartridge rated at 12 V and 9.0 Ah.

Q: Does the RBC17 include connectors and instructions?
A: Yes. It ships with all required connectors, an installation guide and a battery recycling guide.

Q: Is the RBC17 an internal or external battery?
A: It is an internally installed replacement battery and a stand-alone battery stack. It is not rack-mountable.

Q: What is the warranty on the RBC17?
A: The RBC17 carries a 24-month (2-year) repair or replace warranty.

Q: What size and weight is the RBC17?
A: It measures 65 x 94 x 151 mm (H x W x D) and weighs 2.59 kg.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
