Description

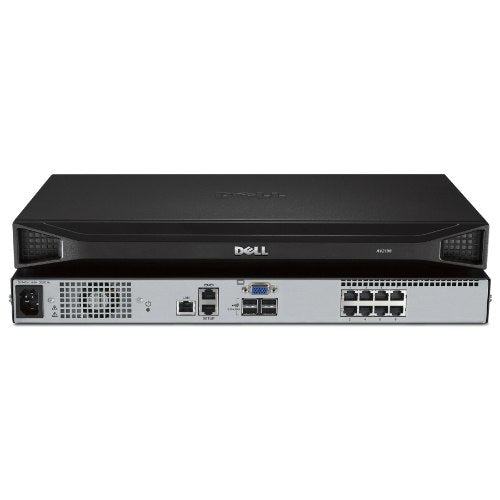

The Dell DAV2108 is an 8-port analog KVM switch that is upgradeable to digital KVM, built for managing multiple servers from a single keyboard, monitor and mouse in a rack environment. This variant supports 1 local user, ships with a single internal power supply and is supplied with an AU plug, and it includes a rack mounting kit for straightforward installation.

The switch supports USB, PS/2 and Sun keyboard and mouse interfaces, with a local port offering USB keyboard/mouse and VGA connections at resolutions up to 1600 x 1200. Units can be cascaded to expand port count, and authentication is handled through DSView, making it a practical fit for server rooms and data centre racks.

Features

- Analog KVM switch upgradeable to digital KVM
- Cascadable for expanding port count
- Rack mounting kit included
- Supports USB, PS/2 and Sun keyboard and mouse interfaces
- Single local user console access

Warranty

Dell hardware typically includes a 1 to 3-year limited hardware warranty, depending on the product model and configuration. Coverage includes repair or replacement for defects in materials and workmanship.

Extended Warranty Options:
Extended warranty and support packages are available through IP Trading. Contact us to customise a solution for your Dell infrastructure.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x KVM ports (RJ-45), cascadable
- 1 local user
- Keyboard/mouse interface: USB, PS/2, Sun
- Local port: 1 x USB keyboard/mouse, 1 x VGA
- Maximum resolution: 1600 x 1200
- Authentication: DSView
- Internal power supply, AC 120/230 V, 20 W
- Single power supply, AU plug
- Rack-mountable, rack mounting kit included
- Weight: 2.99 kg
- Operating temperature: 0-50 °C
- Humidity: 20-80% non-condensing

FAQs

Q: How many servers can the Dell DAV2108 connect?
A: The DAV2108 provides 8 KVM ports (RJ-45) and can be cascaded to expand the number of connected servers.

Q: Can this analog KVM switch be upgraded to digital?
A: Yes, the DAV2108 is an analog KVM switch that is upgradeable to digital KVM.

Q: Which keyboard and mouse interfaces are supported?
A: It supports USB, PS/2 and Sun keyboard and mouse interfaces. The local port offers a USB keyboard/mouse connection and a VGA video output.

Q: What is the maximum video resolution?
A: The DAV2108 supports a maximum resolution of 1600 x 1200.

Q: Is a rack mounting kit included?
A: Yes, a rack mounting kit is included, so the switch can be installed in a standard rack.

Q: How does this model differ from other DAV2108 SKUs?
A: This SKU is configured with 1 local user, a single internal power supply and an AU plug.
