ATEN BP72V18AH-AT | External Battery Pack, 72V/18Ah, 2U Rack/Tower, for OL3000LV/OL3000HV

ATEN BP72V18AH-AT | External Battery Pack, 72V/18Ah, 2U Rack/Tower, for OL3000LV/OL3000HV

BP72V18AH-AT

Stock Status: Enquire

$1,435.78 inc. GST
$1,305.25 ex. GST
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

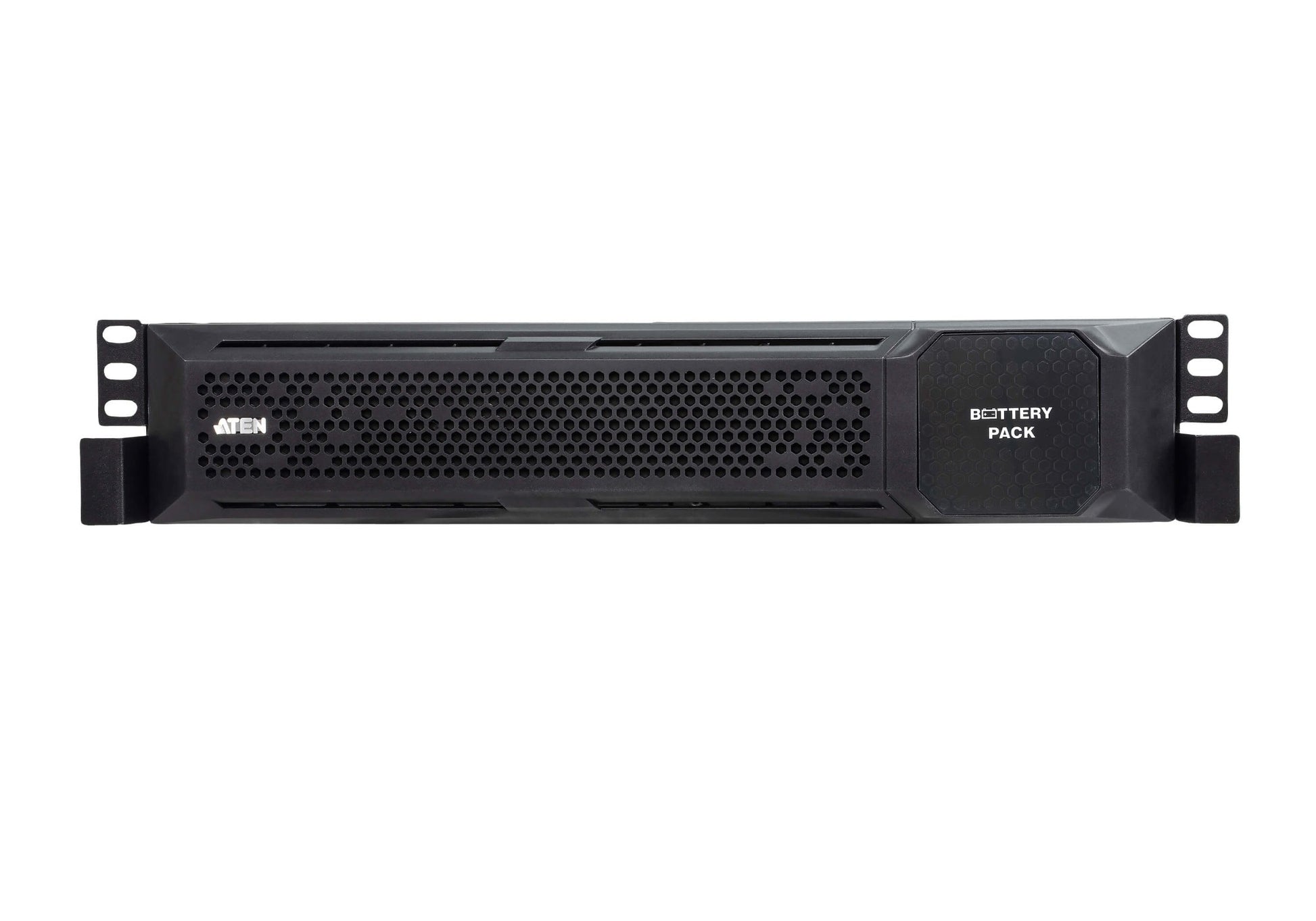

The ATEN BP72V18AH is a 2U rack/tower external battery pack engineered to extend the runtime of ATEN OL3000LV and OL3000HV online UPS systems. Housing 12 sealed lead-acid batteries at a nominal 72V/18Ah, it provides critical extra runtime during unexpected power outages — giving teams the time needed to save data and safely shut down systems. Its compact 2U chassis supports both rack-mount and tower deployment, making it equally suited to data centre racks and server room floor installations.

Compatible exclusively with the ATEN OL3000LV and OL3000HV UPS models, the BP72V18AH ships complete with a rack mounting kit, rail slide kit, battery cable, and tower extend stand for flexible installation. Rated for operating temperatures of 0°C–40°C and elevations up to 3,000 m, it meets cTUVus and RoHS certifications. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Extends battery runtime of ATEN OL3000LV and OL3000HV online UPS systems
- 12 sealed lead-acid batteries in a single space-efficient 2U chassis
- Supports both rack-mount and tower deployment configurations
- Includes rack mounting kit, rail slide kit, battery cable, and tower extend stand
- Battery maintenance recharge recommended every 3–6 months when not in use (4–6 hours)

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Battery Configuration: 12 x 12V/9Ah Sealed Lead-Acid
- Nominal Voltage: 72V input / 72V output
- Maximum Output Current: 50A
- Form Factor: 2U Rack/Tower
- Compatible UPS Models: ATEN OL3000LV, OL3000HV
- Dimensions (L x W x H): 8.80 x 43.80 x 60.00 cm
- Weight: 41.20 kg
- Operating Temperature: 0°C – 40°C
- Storage Temperature: -15°C – 45°C
- Operating Humidity: 0–90% non-condensing
- Operating Elevation: Up to 3,000 m (10,000 ft)
- Certifications: cTUVus, RoHS Compliant

FAQs

Q: Which UPS models is the BP72V18AH compatible with?
A: The ATEN BP72V18AH is designed exclusively for use with the ATEN OL3000LV and OL3000HV online UPS systems. It is not compatible with other UPS models or brands.

Q: What battery type and capacity does the BP72V18AH use?
A: It houses 12 sealed lead-acid (SLA) batteries, each rated at 12V/9Ah, for a total nominal capacity of 72V/18Ah. The maximum output current is 50A.

Q: Can the BP72V18AH be installed in a standard server rack?
A: Yes. The BP72V18AH occupies 2U of rack space and includes a rack mounting kit and rail slide kit for standard 19-inch rack installation. A tower extend stand is also included for floor/tower deployment.

Q: How many battery packs can be connected to the OL3000LV or OL3000HV?
A: Please refer to the ATEN OL3000LV/OL3000HV UPS documentation for the maximum number of external battery packs supported. Contact the IP Trading team for guidance on your specific runtime requirements.

Q: Can I purchase the ATEN BP72V18AH in Australia?
A: Yes. The BP72V18AH is available to order from iptrading.com.au, with fast shipping and expert support available to business customers across Australia.

Q: How often should the batteries be maintained when the pack is not in use?
A: ATEN recommends performing a battery recharge maintenance cycle every 3–6 months when the battery pack is not actively connected to a UPS. Each maintenance charge takes approximately 4–6 hours.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
