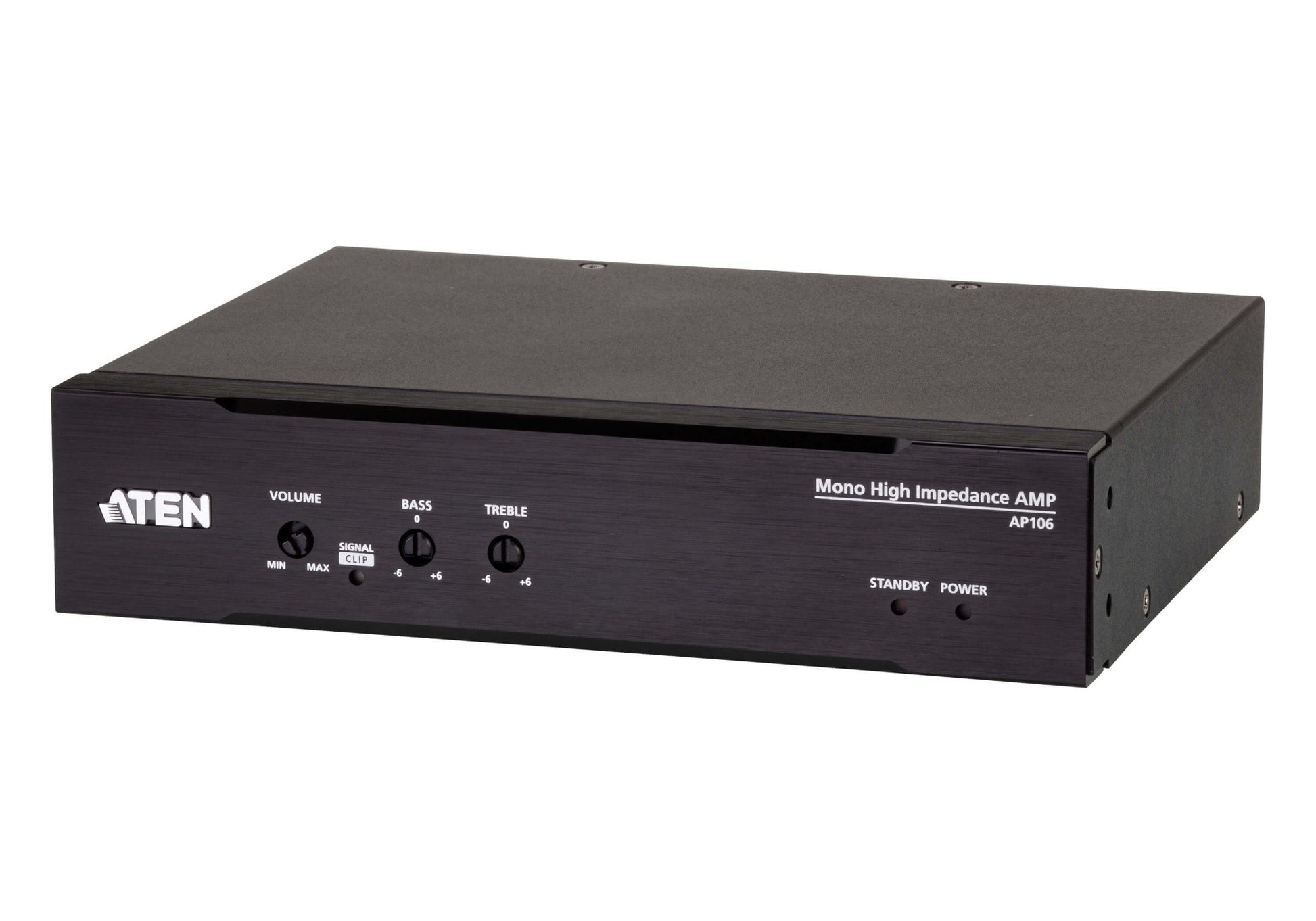

ATEN AP106-AT-U | AP106 60W Mono Hi-Z Power Amplifier, 2-Band EQ, Black

Name: ATEN AP106-AT-U | AP106 60W Mono Hi-Z Power Amplifier, 2-Band EQ, Black
Brand: ATEN
SKU: AP106-AT-U
Price: 664.13 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:AP106-AT-U

Stock Status: Enquire

$664.13 inc. GST

$603.75 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The AP106 60W mono high-impedance power amplifier is a compact, fanless Class D amplifier for 70 V / 100 V distributed audio systems. It delivers 60 W RMS (120 W peak) with a built-in 2-band shelf EQ of +/-6 dB for treble and bass adjustment, and comes in a black metal housing.

The amplifier accepts a balanced or unbalanced line input on a 5-pin Euroblock plus a 3.5mm TRS priority input. A bi-directional RS-232 port supports firmware upgrades and integration with the ATEN Control System. The sealed, fanless casing suits hidden or dusty locations such as behind a TV or above a ceiling, and a rack or surface mount kit is included.

Features

- Delivers 60 W to 70 V or 100 V distributed audio systems
- Built-in 2-band shelf EQ with +/-6 dB treble and bass control
- Extra headroom for transient audio peaks, helping to prevent distortion
- Fanless Class D design avoids fan-failure shutdowns and runs cooler
- Compact sealed casing suits hidden or dusty locations
- Power Saving Mode shuts down after 30 minutes with no audio above -50 dBu and wakes when a source reaches -30 dBu
- Protection against output short circuit, over/under-voltage, high frequency overload and overtemperature
- Bi-directional RS-232 port for firmware upgrades and ATEN Control System integration
- Front panel status LEDs
- IEC power receptacle for overseas operation

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Rated power: 60 W RMS, 120 W peak
- Output: 70 V / 100 V selectable Hi-Z
- Amplifier type: Class D, fanless sealed design
- Distortion: THD+N <0.1% (1 kHz, 3 dB before clipping)
- Frequency response: 80 Hz to 20 kHz, 0/-3 dB at 70 V, 1 W
- Sensitivity: balanced +4 dBu, unbalanced -10 dBV
- Audio effects: 2-band shelf EQ, +/-6 dB
- High-pass filter: 80 Hz, -12 dB/octave
- Audio input: 1 x 5-pin 3.5mm Euroblock (balanced/unbalanced line in), 1 x 3.5mm TRS unbalanced phone jack (priority)
- Input impedance: balanced 20 kΩ, unbalanced 10 kΩ
- Audio output: 1 x 2-pin 5.08mm Euroblock
- Minimum load: 80 Ω at 70 V, 160 Ω at 100 V
- Control: bi-directional RS-232, 3-pin 3.5mm terminal block (19200 baud, 8 data bits, 1 stop bit, no parity, no flow control)
- Power: 100-240 V AC, 50/60 Hz, 1 A
- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 60 °C
- Humidity: 0 to 80% RH
- Housing: metal
- Dimensions (L x W x H): 20.00 x 15.72 x 4.40 cm
- Weight: 1.23 kg
- Certification: FCC, CE, UKCA
- Included: 5-pin, 2-pin and 3-pin Euroblock connectors, power cord, foot pad set, rack / surface mount kit

FAQs

Q: What speaker line voltages does the AP106 support?
A: It provides a selectable 70 V or 100 V high-impedance output, suited to distributed audio systems with constant-voltage speakers.

Q: What is the minimum load for the AP106?
A: The minimum load is 80 Ω at 70 V and 160 Ω at 100 V.

Q: What audio inputs does it have?
A: A 5-pin 3.5mm Euroblock accepts balanced or unbalanced line-level audio, and a 3.5mm TRS unbalanced phone jack provides a priority input.

Q: Does the AP106 have a cooling fan?
A: No. It uses a fanless, sealed Class D design, so there is no fan to fail and it suits enclosed or dusty installation spots.

Q: Can the AP106 be controlled or upgraded remotely?
A: Yes. The bi-directional RS-232 port supports firmware upgrades and integration with the ATEN Control System.

Q: Does it include a mounting kit?
A: Yes. A rack / surface mount kit is included, along with Euroblock connectors, a power cord and a foot pad set.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
