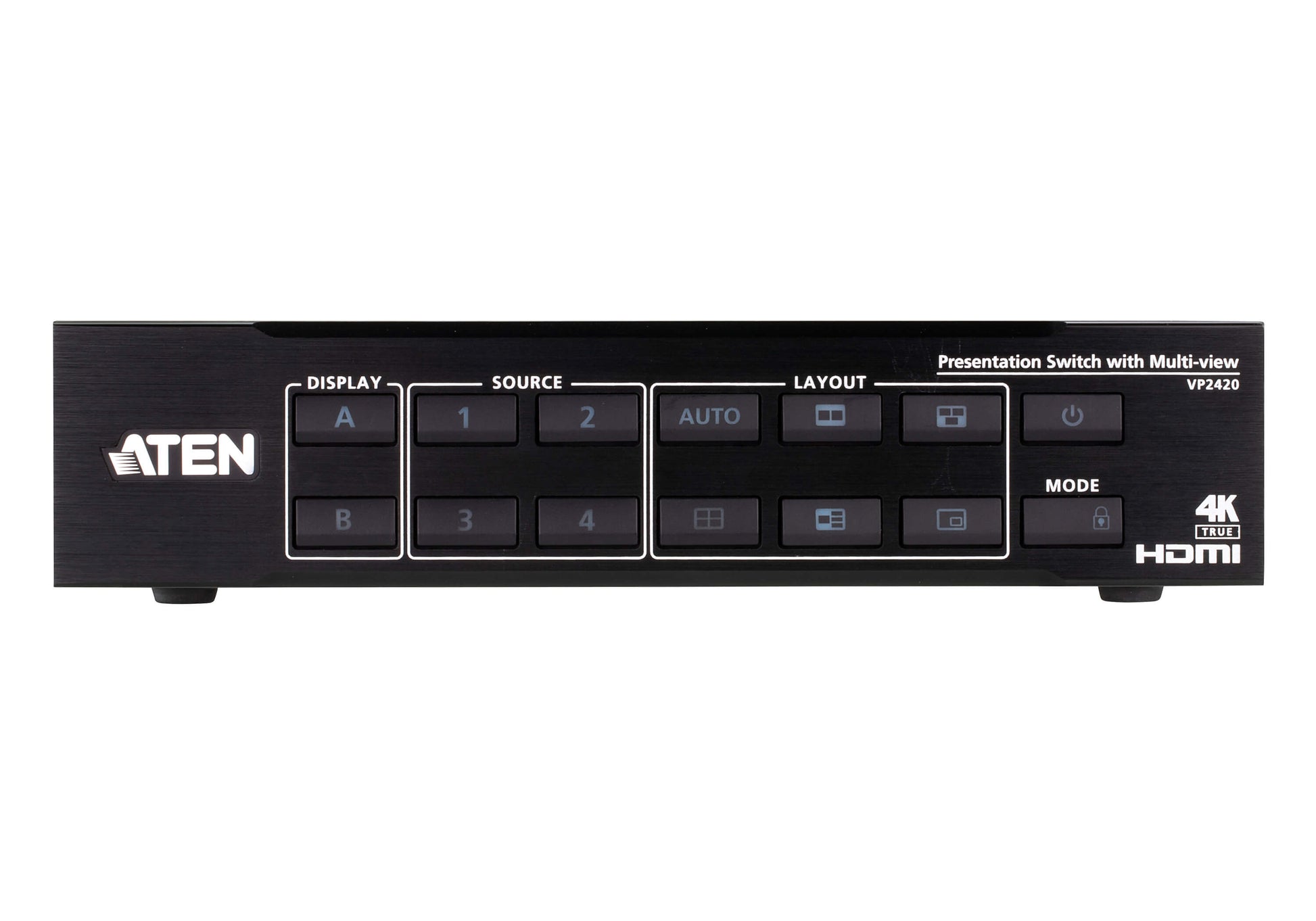

ATEN VP2420-AT-U | VP2420 True 4K HDMI 4 x 2 Presentation Switch with Multiview

ATEN VP2420-AT-U | VP2420 True 4K HDMI 4 x 2 Presentation Switch with Multiview

VP2420-AT-U

Stock Status: Enquire

$1,820.87 AUD
$1,820.87 AUD
$1,820.87 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The VP2420 is a 4 x 2 True 4K HDMI presentation matrix switch designed for professional meeting spaces.. It supports 4K/60 4:4:4 video, HDCP 2.2, independent output selection, and Multiview layouts so you can display multiple sources on one screen when needed. With flexible control via front panel, Ethernet (web GUI), RS-232 and IR, plus EDID management and firmware upgradeability, it integrates smoothly into modern AV environments.. Backed by the manufacturer’s warranty.. iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Show multiple sources at once with built-in Multiview
- True 4K 60 Hz 4:4:4 for crisp, colour-accurate presentations
- Route any input to either display with 4 x 2 matrix flexibility
- Quick setup and operation via front panel or web GUI
- Reliable interoperability thanks to HDCP 2.2 and EDID management

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x HDMI inputs
- 2 x HDMI outputs
- True 4K 4096 x 2160 @ 60 Hz, 4:4:4 (18 Gbps) support
- HDMI 2.0 and HDCP 2.2 compliant
- Multiview output modes (e.g., quad-view, PiP)
- 4 x 2 matrix switching with independent output selection
- Control interfaces: front panel, Ethernet (web GUI), RS-232, IR
- EDID management for reliable source/display handshakes
- Firmware upgradable

FAQs

Q: What is the VP2420 used for?
A: It’s a 4 x 2 True 4K HDMI presentation matrix switch that lets you connect up to four HDMI sources and route them to two displays independently, ideal for boardrooms, classrooms, and huddle spaces.

Q: Does it support 4K at 60 Hz with 4:4:4 chroma?
A: Yes. The VP2420 supports True 4K (up to 4096 x 2160 @ 60 Hz, 4:4:4) for uncompromised image quality.

Q: Can it display multiple sources on one screen?
A: Yes. Multiview modes allow you to show multiple inputs on a single display, such as quad-view or picture-in-picture.

Q: What control options are available?
A: You can control it from the front panel, via Ethernet using a web GUI, or through RS-232 and IR for integration with control systems.

Q: Is it compatible with HDCP-protected content?
A: Yes. It is HDCP 2.2 compliant for use with protected 4K sources.

Q: Where can I purchase it in Australia?
A: You can buy the VP2420 from IP Trading, with local stock, tax invoices, and support.
