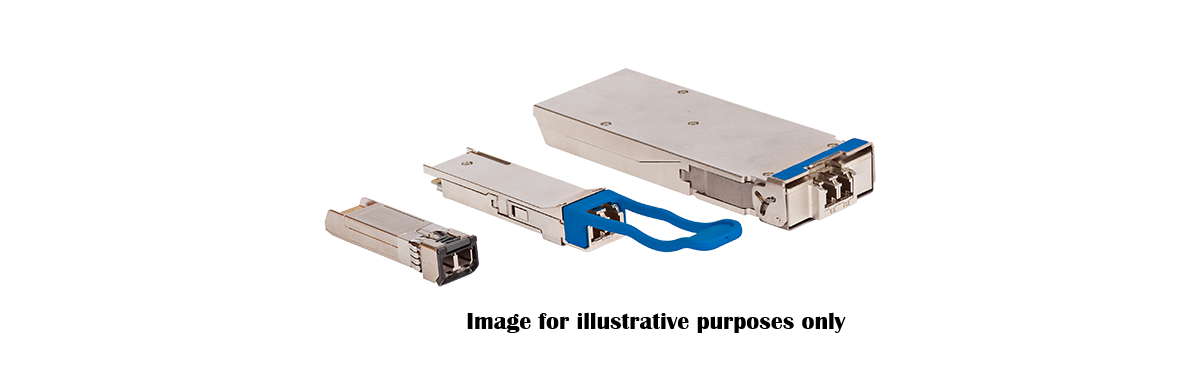

Arista SFP-10G-ERBD-D | 10G BiDi SFP+ Transceiver, Downlink, 1330nm Tx, 40km SMF

Authorised Arista Partner

SKU:SFP-10G-ERBD-D

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Arista SFP-10G-ERBD-D is a 10GBASE-ERBD BiDi SFP+ transceiver for the downlink side of a single-fibre 10 Gigabit Ethernet link, reaching up to 40km over single-mode fibre. It transmits at 1330nm and receives at 1270nm over a single LC connection, so one strand of SMF does the work of a duplex pair.

This is the downlink (-D) module and must be paired with the matching SFP-10G-ERBD-U uplink module at the far end. It uses the hot-pluggable SFP+ form factor and complies with IEEE 802.3 and the SFP+ MSA, making it suited to long-reach campus, metro and building-to-building links where fibre strands are limited.

Features

- Bidirectional operation over a single strand of single-mode fibre, halving fibre usage versus duplex links
- Downlink (-D) module pairs with the SFP-10G-ERBD-U uplink module
- Up to 40km reach for 10 Gigabit Ethernet
- Hot-pluggable SFP+ form factor
- Compliant with IEEE 802.3 and SFP+ MSA standards

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 10GBASE-ERBD SFP+ BiDi transceiver (downlink)
- PHY type: 10GBASE-ERBD-U/D
- Connector: LC
- Wavelength: 1330nm Tx / 1270nm Rx
- Cable type: single-strand SMF G.652
- Max reach: 40km (links beyond 30km are engineered links per IEEE 802.3ae)
- Tx power: 0 to 5.0 dBm
- Rx power: -9 to -21 dBm
- Maximum power consumption: 1.5 W
- Dimensions (H x W x D): 8.55 x 13.7 x 56.5 mm
- Operating case temperature: 0 to 70 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%
- Standards: IEEE 802.3, SFP+ MSA (SFF-8431, 8461 and 8472)

FAQs

Q: What does the -D suffix on SFP-10G-ERBD-D mean?
A: The -D denotes the downlink module, which transmits at 1330nm and receives at 1270nm. It must be paired with the SFP-10G-ERBD-U uplink module at the other end of the link.

Q: Can I use two SFP-10G-ERBD-D modules back to back?
A: No. A BiDi link needs one downlink and one uplink module so that the transmit and receive wavelengths match at each end. Pair this module with the SFP-10G-ERBD-U.

Q: What fibre type and connector does this transceiver use?
A: It uses a single strand of G.652 single-mode fibre with an LC connector.

Q: What is the maximum reach?
A: Up to 40km over single-mode fibre. Links beyond 30km are engineered links per IEEE 802.3ae.

Q: Do I need an attenuator on short links?
A: Yes. Proper optical attenuation is required on shorter links to protect the receiver from permanent damage, since the Tx power is 0 to 5.0 dBm and the Rx range is -9 to -21 dBm.

Q: What is the power consumption and operating temperature?
A: Maximum power consumption is 1.5 W, with an operating case temperature of 0 to 70 C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
