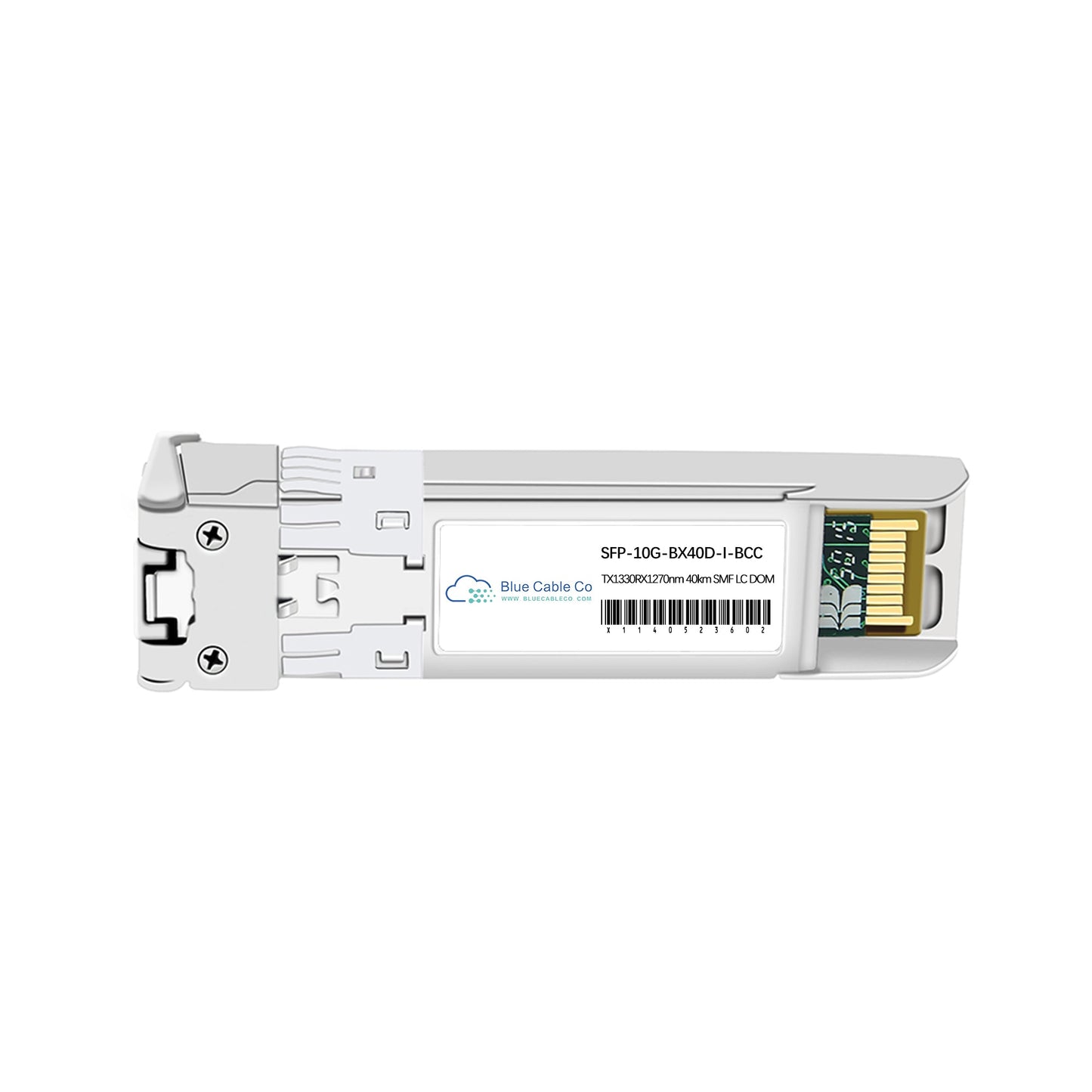

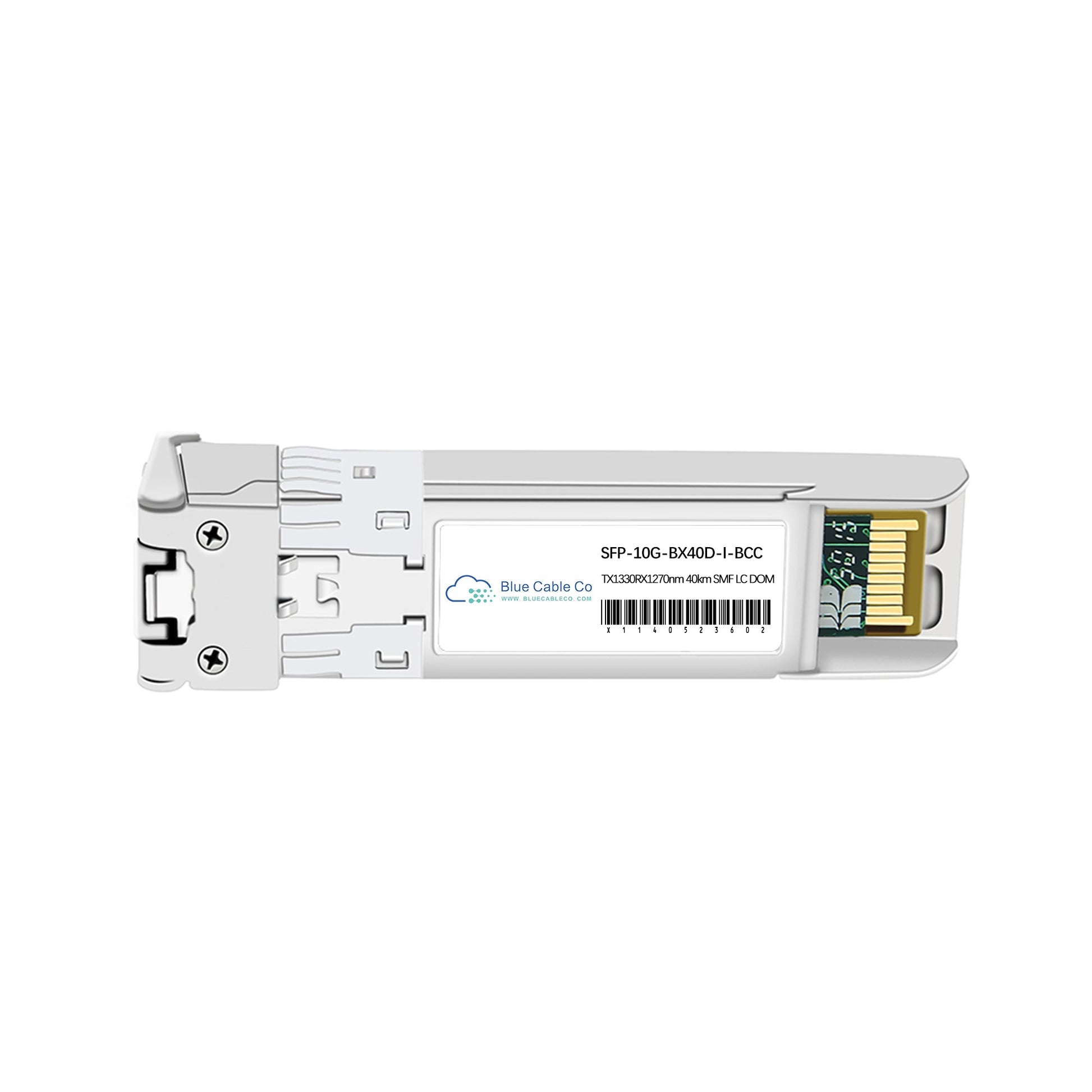

SFP-10G-ERBD-D-BCC | Arista Compatible 10G Single-Mode 40km (10GBASE-BX40D)

SFP-10G-ERBD-D-BCC | Arista Compatible 10G Single-Mode 40km (10GBASE-BX40D)

SFP-10G-ERBD-D-BCC

Stock Status: Enquire

$146.30 AUD
$146.30 AUD
$146.30 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SFP-10G-ERBD-D-BCC is a drop-in compatible replacement for the Arista SFP-10G-ERBD-D. This transceiver operates plug-and-play in Arista platforms running EOS 4.21.3 or later. - 10GBASE-BX40-D standard compliance ensures interoperability with BiDi-capable 10G SFP+ ports - SFP+ form factor, 10Gbps data rate, 1330nm transmit and 1270nm receive wavelengths, up to 40km over single-mode fiber - BiDi WDM technology transmits and receives on a single fiber strand via simplex LC connector, halving fiber infrastructure requirements - Must be deployed in matched pairs with SFP-10G-ERBD-U uplink module at the far end for correct bidirectional operation - DDM support provides real-time monitoring of optical power, temperature, voltage, and laser bias current - Hot-swappable design for live insertion and removal without network disruption

Features

• IEEE 802.3ae 10GBASE-ER BiDi and SFP+ MSA compliance guarantee form-fit-function compatibility with 10G SFP+ ports that support BiDi transceivers
• WDM bidirectional signaling on a single fiber strand eliminates the need for duplex fiber, reducing cabling costs and simplifying patching in metro and campus deployments
• Downlink wavelength configuration (1330nm TX / 1270nm RX) pairs exclusively with uplink modules (1270nm TX / 1330nm RX) to prevent polarity errors
• DFB laser transmitter and PIN photodiode receiver integrated into simplex LC interface provide stable optical performance across the full 40km reach
• DDM parameters accessible via I2C interface per SFF-8472 enable proactive link health monitoring without external test equipment
• Hot-swap capability allows field replacement during maintenance windows without powering down the host platform
• Commercial temperature rating (0 to 70 degrees C) suits standard data center and enterprise network environments

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-10G-ERBD-D-BCC
Compatible Replacement For: SFP-10G-ERBD-D
Compatibility: Arista compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10Gbps
Wavelength: 1330nm TX / 1270nm RX
Fibre Type: Single-Mode (SMF / OS2)
Connector Type: Simplex LC
DOM Support: Yes
Standards: SFP+ MSA (SFF-8432), IEEE 802.3ae 10GBASE-ER BiDi
Max Reach: Up to 40km (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70 degrees C (commercial)
Paired Module Required: SFP-10G-ERBD-U (uplink, 1270nm TX / 1330nm RX)

FAQs

Q: Will this work in place of the Arista SFP-10G-ERBD-D?
A: Yes. This transceiver is designed as a plug-and-play replacement for the Arista SFP-10G-ERBD-D. It meets the SFP+ MSA form factor, delivers 10Gbps over the same wavelength pair (1330nm TX / 1270nm RX), and complies with IEEE 802.3ae 10GBASE-ER BiDi, ensuring compatibility with Arista platforms running EOS 4.21.3 or later.

Q: Which Arista platforms support this transceiver?
A: This transceiver is supported on Arista platforms with 10G SFP+ ports running EOS 4.21.3 or later. For specific platform compatibility, consult the Arista Transceiver and Cable Guide. Any Arista switch or router with a 10G SFP+ port that supports BiDi transceivers will recognize this module.

Q: Why must this be used with the SFP-10G-ERBD-U uplink module?
A: BiDi transceivers use wavelength-division multiplexing with complementary wavelength pairs. The downlink module (this unit) transmits at 1330nm and receives at 1270nm, while the uplink module transmits at 1270nm and receives at 1330nm. Pairing two downlink or two uplink modules will result in both ends transmitting and receiving on the same wavelengths, preventing communication. The wavelengths must be matched correctly for bidirectional operation.

Q: Does this transceiver require optical attenuation on shorter links?
A: Yes. This transceiver is designed for extended reach up to 40km and has a high optical budget. On links shorter than the minimum specified distance, the received optical power may exceed the maximum input threshold of the receiver, potentially causing link errors or permanent damage. Consult the optical power specifications and use inline attenuators if the link budget calculation indicates overload.

Q: Can I mix this transceiver with other vendor BiDi modules with the same wavelengths?
A: In principle, any IEEE 802.3ae 10GBASE-BX compliant transceiver with matching wavelengths (1330nm TX / 1270nm RX on one end, 1270nm TX / 1330nm RX on the other) should interoperate. However, host platform coding may prevent third-party transceivers from being recognized. For guaranteed compatibility, use matching BCC or Arista modules on both ends of the link.
