ITFZTCHXF-BCC | Sophos Compatible 10GB Multi-Mode 300m (10GBASE-SR)

ITFZTCHXF-BCC | Sophos Compatible 10GB Multi-Mode 300m (10GBASE-SR)

ITFZTCHXF-BCC

In stock:10

$62.70 AUD
$62.70 AUD
$62.70 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ITFZTCHXF-BCC is a drop-in compatible replacement for the Sophos ITFZTCHXF. This SFP+ transceiver provides plug-and-play compatibility with Sophos network equipment requiring 10GBASE-SR connectivity. - IEEE 802.3ae 10GBASE-SR compliance guarantees interoperability in multi-vendor 10 Gigabit Ethernet environments - SFP+ form factor, 10.3125 Gbps data rate, 850nm wavelength, multi-mode fibre, duplex LC connector - Supports up to 300m over OM3 fibre, 400m over OM4 fibre - DOM (Digital Optical Monitoring) support for real-time parameter monitoring including temperature, voltage, and optical power levels - VCSEL laser transmitter technology with single 3.3V power supply, power dissipation under 1W - Operating temperature range 0 to 70°C, hot-pluggable for live installation and removal

Features

• IEEE 802.3ae 10GBASE-SR compliance ensures full interoperability with multi-vendor 10 Gigabit Ethernet infrastructure and eliminates vendor lock-in concerns
• VCSEL (Vertical-Cavity Surface-Emitting Laser) transmitter at 850nm combined with PIN photodiode receiver optimised for low-cost multi-mode fibre deployments
• Digital diagnostic monitoring via SFF-8472 two-wire serial interface provides real-time access to temperature, supply voltage, TX bias current, TX output power, and RX input power for proactive link management
• Power dissipation under 1W reduces thermal load on switch chassis and power budget requirements compared to higher-power 10G variants
• Hot-pluggable SFP+ MSA footprint allows live insertion and removal without disrupting adjacent ports or requiring system shutdown
• OM3 and OM4 fibre support provides deployment flexibility across different fibre infrastructures with reach extending to 400m over OM4
• 0 to 70°C operating temperature range suits standard data centre and network closet environments without requiring extended-temperature variants

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: ITFZTCHXF-BCC
Compatible Replacement For: ITFZTCHXF
Compatibility: Sophos compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10.3125 Gbps
Wavelength: 850nm
Fibre Type: Multi-mode (OM3/OM4)
Connector Type: Duplex LC
DOM Support: Yes
Standards: IEEE 802.3ae 10GBASE-SR, SFP+ MSA, SFF-8431, SFF-8432, SFF-8472
Max Reach: Up to 300m over OM3, 400m over OM4 (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70°C
Power Supply: Single 3.3V
Power Consumption: <1W

FAQs

Q: Will this work in place of the Sophos ITFZTCHXF?
A: Yes. The ITFZTCHXF-BCC is engineered to match the Sophos ITFZTCHXF in form factor (SFP+), data rate (10.3125 Gbps), wavelength (850nm), and compliance with IEEE 802.3ae 10GBASE-SR. It is plug-and-play compatible and functions identically in Sophos equipment.

Q: Which Sophos platforms support this transceiver?
A: This transceiver works in any Sophos device with an SFP+ port that supports 10GBASE-SR optical modules. This includes Sophos firewall appliances and network switches with 10G SFP+ expansion slots. Confirm your device has an SFP+ slot and supports multi-mode 10G optical connectivity.

Q: What fibre types and reach distances are supported?
A: This module supports OM1, OM2, OM3, and OM4 multi-mode fibre. Typical reach is 26m over OM1, 82m over OM2, 300m over OM3, and 400m over OM4. Actual distance depends on fibre quality, connector loss, and the 4.6 dB minimum optical budget. Use 50/125 micron fibre for best performance.

Q: Can I monitor link health and optical power levels with this transceiver?
A: Yes. This transceiver includes DOM functionality per SFF-8472, exposing five real-time parameters via I2C: temperature, supply voltage, transmit bias current, transmit optical power, and receive optical power. Access these through your switch CLI or management interface to identify marginal links, dirty connectors, or failing lasers before they cause outages.

Q: Does this transceiver support Gigabit Ethernet or is it 10G only?
A: The transceiver chipset is multi-rate capable (1.25 to 10.31 Gbps), supporting both Gigabit Ethernet (1.25 Gbps) and 10 Gigabit Ethernet (10.31 Gbps) operation. The active data rate is determined by the host port configuration. If your Sophos port is configured for 1G, the transceiver will operate at 1G; if configured for 10G, it operates at 10G.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% Compatible With Equipment From Major Vendors

Coded & tested in our state of the art lab in Sydney

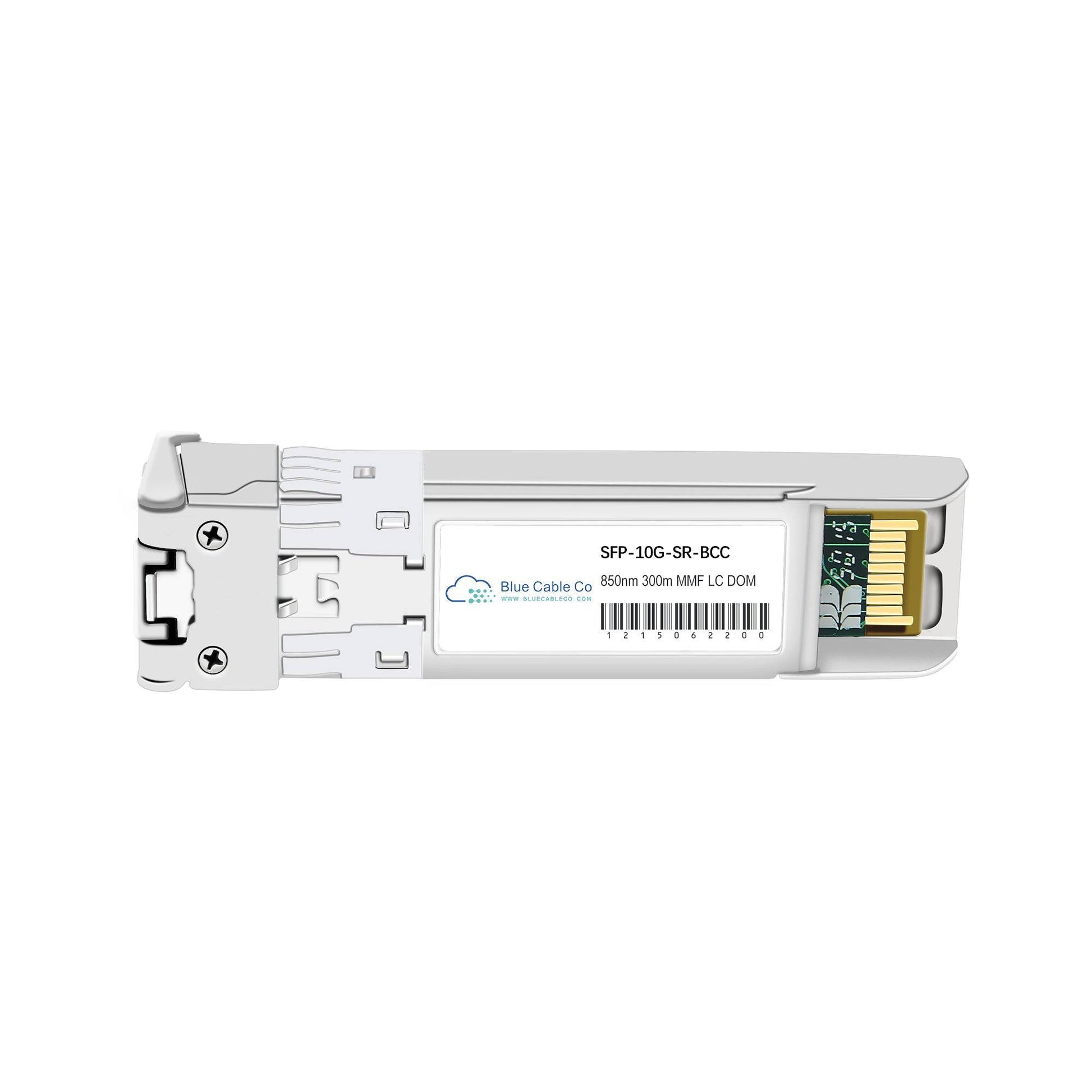

Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
