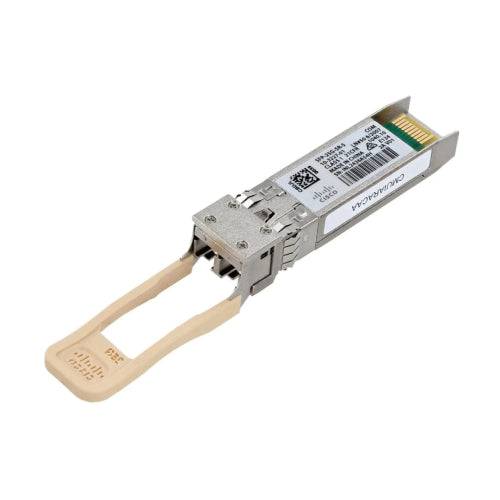

SFP-25G-SR-S-BCC | Cisco Compatible 25GB Multi-Mode 100m (25GBASE-SR)

SFP-25G-SR-S-BCC | Cisco Compatible 25GB Multi-Mode 100m (25GBASE-SR)

SFP-25G-SR-S-BCC

Stock Status: Enquire

$184.80 AUD
$184.80 AUD
$184.80 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SFP-25G-SR-S-BCC is a drop-in compatible replacement for the Cisco SFP-25G-SR-S. This SFP28 transceiver operates plug-and-play in Cisco switches supporting 25GBASE-SR interfaces. - IEEE 802.3by 25GBASE-SR compliance ensures full interoperability with standards-based 25G Ethernet equipment - SFP28 form factor, 25.78125 Gbps data rate, 850nm wavelength, dual LC connector - Supports 70m reach on OM3 multi-mode fibre and 100m on OM4 multi-mode fibre - Digital Optical Monitoring (DOM) provides real-time diagnostics via SFF-8472 interface - Requires RS-FEC on host ports for full reach operation at 25G - Hot-swappable design enables installation without network downtime

Features

• IEEE 802.3by compliance guarantees standards-based interoperability with any 25GBASE-SR port, eliminating vendor lock-in for short-reach multi-mode links
• Single-lane 25G architecture operating at 25.78125 Gbps provides 2.5x throughput increase over 10G on existing OM3/OM4 cabling infrastructure
• 850nm VCSEL transmitter technology optimised for multi-mode fibre delivers typical launch power between -8.4 dBm and +2.4 dBm with 2.6 dB minimum link budget
• RS-FEC (Reed-Solomon Forward Error Correction) requirement on host ports ensures full rated reach and bit error rate performance on OM3 and OM4 fibre
• Hot-swappable SFP28 MSA form factor draws under 1W maximum power, supports in-service insertion and removal without disrupting adjacent ports
• Digital diagnostics via I2C interface expose real-time transmit/receive optical power, temperature, voltage, and bias current for proactive link health monitoring
• Dual LC/PC connector interface requires patch cords with PC or UPC terminations; APC connectors are not supported per Cisco design specification

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-25G-SR-S-BCC
Compatible Replacement For: SFP-25G-SR-S
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP28
Data Rate: 25.78125 Gbps
Wavelength: 850nm (840-860nm range)
Fibre Type: Multi-mode (MMF)
Connector Type: Dual LC/PC
DOM Support: Yes (SFF-8472 compliant)
Standards: IEEE 802.3by 25GBASE-SR
Max Reach: 70m on OM3, 100m on OM4 (per datasheet, requires RS-FEC)
Operating Temperature: 0°C to 70°C

Alternate Part Codes

SFP-25G-SR-S=

FAQs

Q: Will this work in place of the Cisco SFP-25G-SR-S?
A: Yes. This module is a plug-and-play replacement delivering the same 25GBASE-SR functionality at 25.78125 Gbps over multi-mode fibre. It uses the same SFP28 form factor, 850nm wavelength, and IEEE 802.3by compliance as the Cisco original, ensuring identical electrical and optical behaviour in any 25G SFP28 port.

Q: Which Cisco platforms support this transceiver?
A: Any Cisco switch or router with SFP28 ports supporting 25GBASE-SR will accept this module. Cisco publishes platform compatibility in the Transceiver Module Group (TMG) Compatibility Matrix. Typical deployments include Nexus spine-leaf fabrics, Catalyst aggregation layers, and UCS fabric interconnects requiring 25G multi-mode uplinks or server connections.

Q: What is the actual reach on OM3 versus OM4 fibre, and does fibre quality matter?
A: With RS-FEC enabled on the host port, this module supports 70m on OM3 (2000 MHz·km modal bandwidth) and 100m on OM4 (4700 MHz·km modal bandwidth). Reach is determined by the link's optical budget and fibre insertion loss. Poor quality patch cords, dirty connectors, or excessive splice loss can reduce effective distance even on spec-compliant fibre.

Q: Why does this module require RS-FEC, and what happens without it?
A: RS-FEC (Reed-Solomon Forward Error Correction) on the host port corrects bit errors introduced by the 25G signaling rate, enabling the module to achieve full 70m/100m reach on OM3/OM4. Without RS-FEC, reach may be limited to approximately 30m on OM3 and 50m on OM4 depending on link quality, as the uncorrected bit error rate degrades with distance.

Q: Can I use this module at 10G, or is it 25G-only?
A: This is a 25G-only module compliant with IEEE 802.3by 25GBASE-SR. It does not support dual-rate 10G/25G operation. For ports that need to auto-negotiate between 10GBASE-SR and 25GBASE-SR, use the Cisco SFP-10/25G-CSR-S equivalent instead, which is specifically designed for dual-rate functionality across both speeds.
