Arista DCS-7508E-BND-D | 7508E 8-Slot Data Centre Switch Chassis, 6x Fabric-E, Sup-E-SSD, 4x2900W PSU
Arista DCS-7508E-BND-D | 7508E 8-Slot Data Centre Switch Chassis, 6x Fabric-E, Sup-E-SSD, 4x2900W PSU
Authorised Arista Partner
SKU:DCS-7508E-BND-D
Stock Status: Enquire
Couldn't load pickup availability
Description
Description

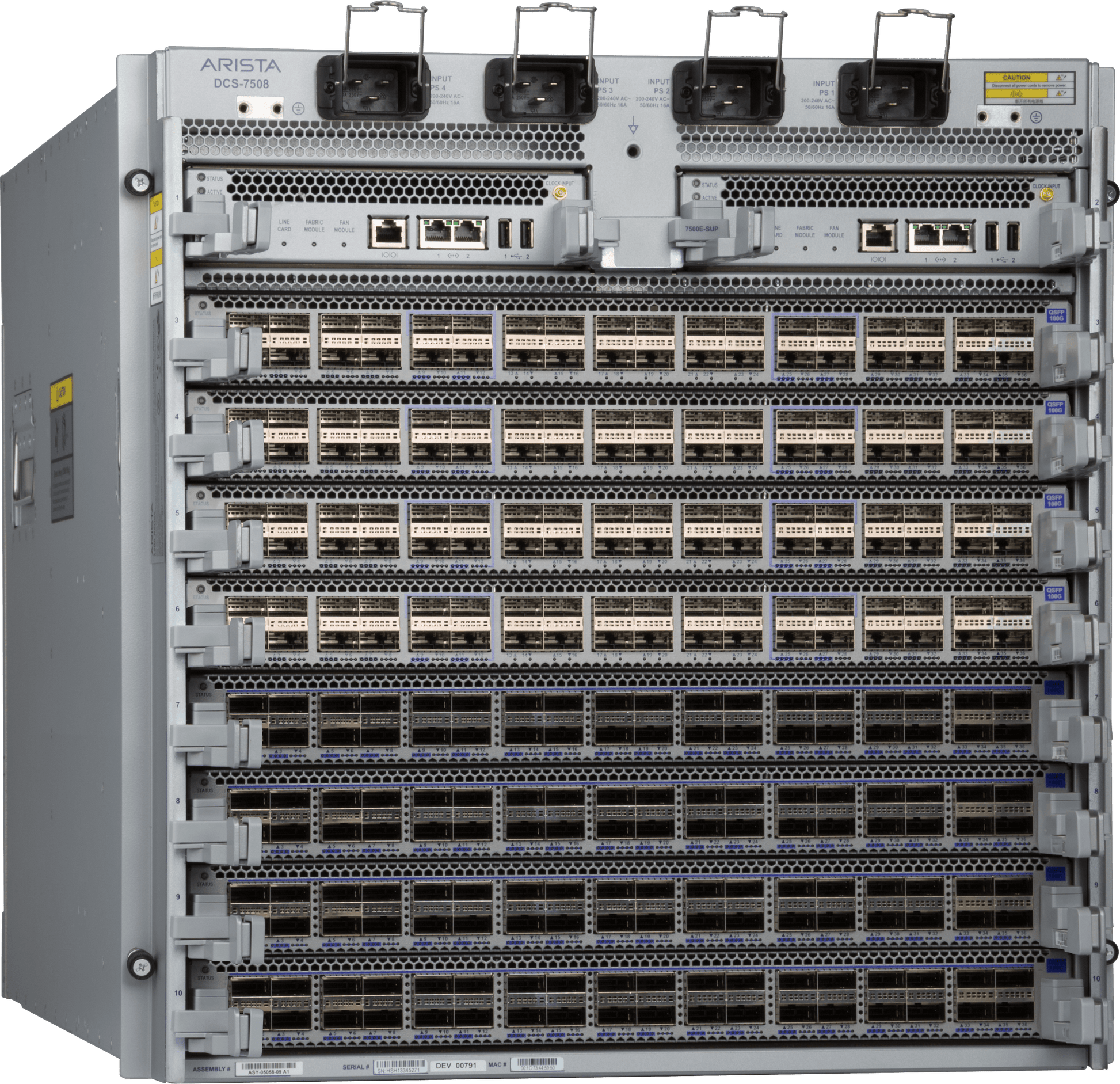

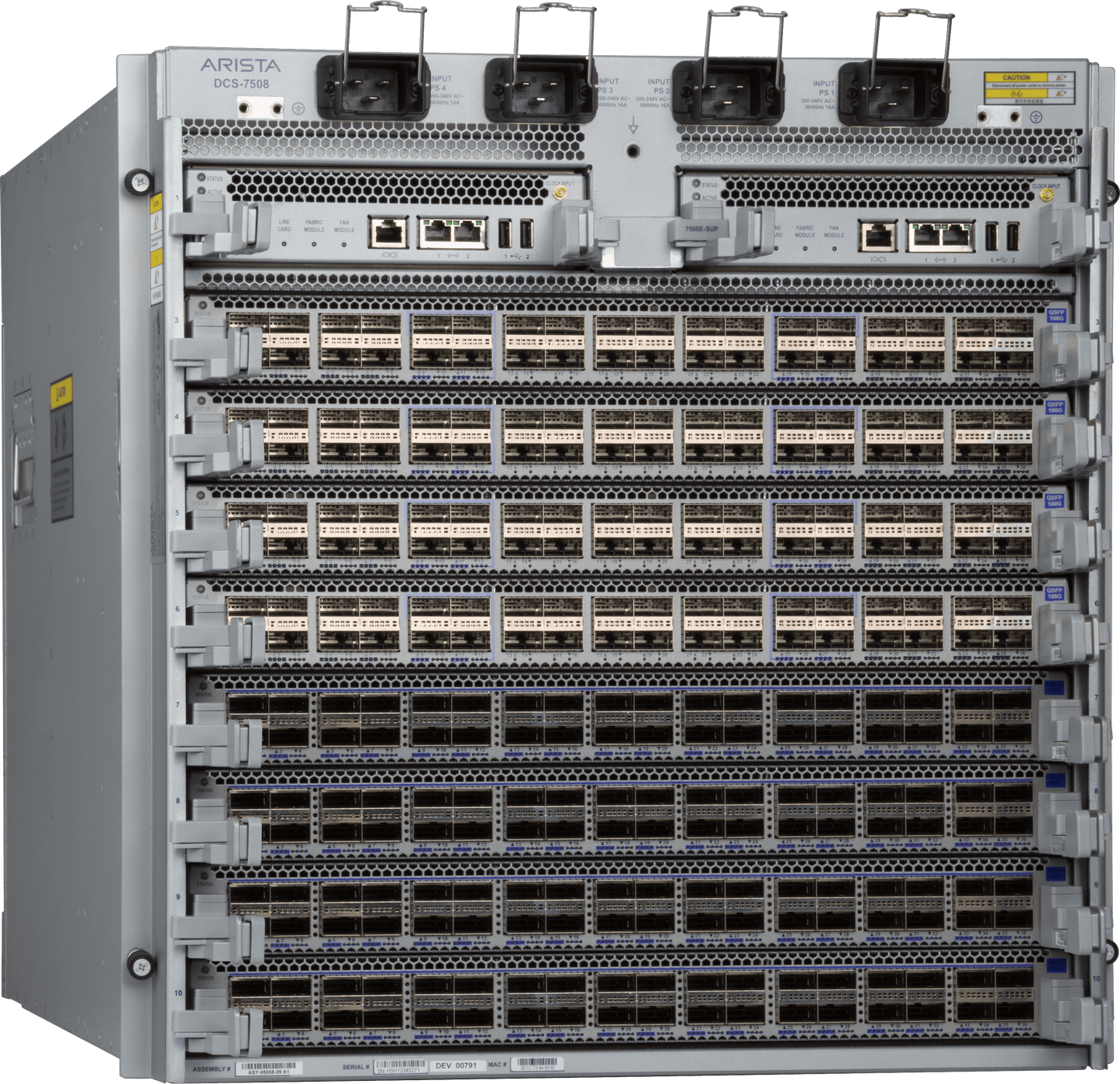

The Arista 7508E is an 8-slot modular data centre switch chassis bundle from the 7500E Series, built for high-density 10GbE, 40GbE and 100GbE core and spine deployments. This bundle includes the 7508 chassis, four 2900W AC power supplies, six Fabric-E modules and one Supervisor-E-SSD with a 100GB SSD, delivering up to 30 Tbps and 14.4 Bpps of throughput. Line cards are ordered separately.
The chassis supports up to 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE ports, with two supervisor slots for redundancy and hot-swappable, active-active Fabric-E modules in a 5+1 arrangement. The four 2900W power supplies provide 2+2 grid redundancy, and the platform runs Arista EOS in an 11U rack footprint.
Features
Features
- Modular chassis with two supervisor slots for redundancy
- Fabric modules are active-active with N+1 redundancy and hot-swappable, with integrated fan assembly
- Four 2900W AC power supplies, 2+2 grid redundant and hot-swappable
- Supports 1/10/40/100GbE line cards from the 7500E series
- Supervisor-E-SSD includes a 100GB SSD
- Runs Arista EOS
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 8 line card slots
- 2 supervisor slots (1 x Supervisor-E-SSD with 100GB SSD included)
- 6 x Fabric-E modules (DCS-7508E-FM) included, 5+1 redundancy
- 4 x 2900W AC power supplies (PWR-2900AC) included, 2+2 grid redundant
- Up to 30 Tbps / 14.4 Bpps throughput
- Up to 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE ports (chassis maximum)
- Power supply input: 200-240V, 50-60 Hz single phase AC, IEC 240 C19 connector
- Maximum power consumption: 5,790 W
- Dimensions (HxWxD): 19.1 x 19 x 30 in (48.5 x 48.3 x 76.2 cm), 11U
- Weight: 95 lbs (43.1 kg) chassis only, 300 lbs (136 kg) fully configured
- Operating temperature: 0 to 40 C (32 to 104 F)
- Airflow: maximum 800 CFM at 40 C, typical 600 CFM at 25 C
FAQs
Q: Does this bundle include line cards?
A: No. The bundle includes the 7508 chassis, four 2900W AC power supplies, six Fabric-E modules and one Supervisor-E-SSD. Line cards are ordered separately.
Q: How many supervisors can the chassis hold?
A: The 7508E has two supervisor slots for redundancy. This bundle includes one Supervisor-E-SSD with a 100GB SSD.
Q: What power input do the included power supplies need?
A: Each PWR-2900AC supply delivers 2900W from a 200-240V, 50-60 Hz single phase AC input via an IEC 240 C19 connector. The four supplies are hot-swappable and support 2+2 grid redundancy.
Q: What is the maximum port density of the 7508E?
A: With line cards fitted, the chassis supports up to 1,152 x 10GbE, 288 x 40GbE or 96 x 100GbE ports, with up to 30 Tbps and 14.4 Bpps of throughput.
Q: How much rack space does the chassis need?
A: The 7508E is 11U high and approximately 30 inches (76.2 cm) deep. A fully configured system weighs around 136 kg, so plan the rack and lifting arrangements accordingly.
Q: Are the fabric modules redundant?
A: Yes. The six Fabric-E modules are active-active, hot-swappable and provide 5+1 redundancy, each with an integrated fan assembly.
