Arista DCS-7508R-BND-D | 7508R Modular Chassis Bundle, 6x3kW AC PS, 6xFM-R, Sup2-D

Authorised Arista Partner

SKU:DCS-7508R-BND-D

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Stock Status: Enquire

Description

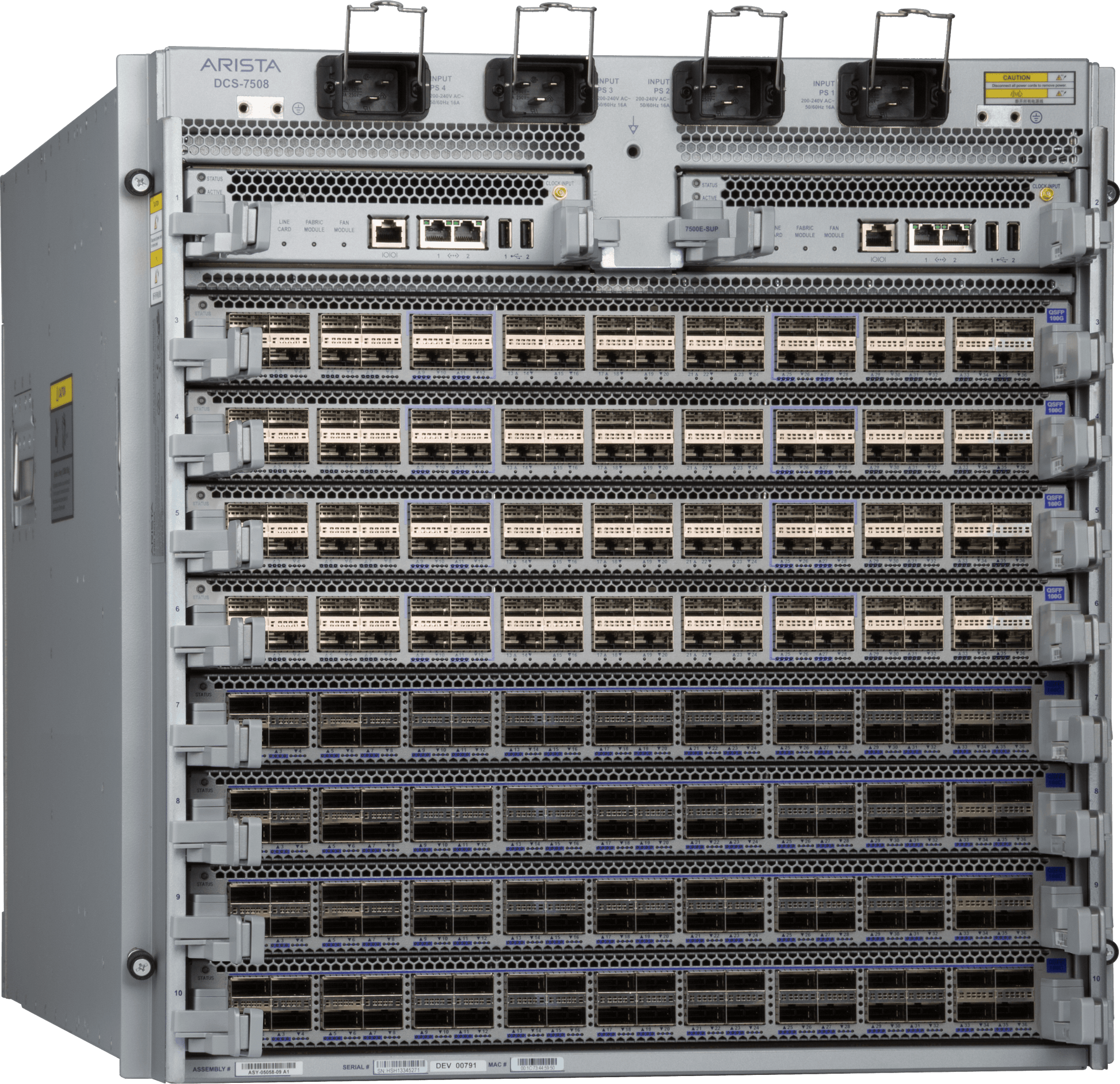

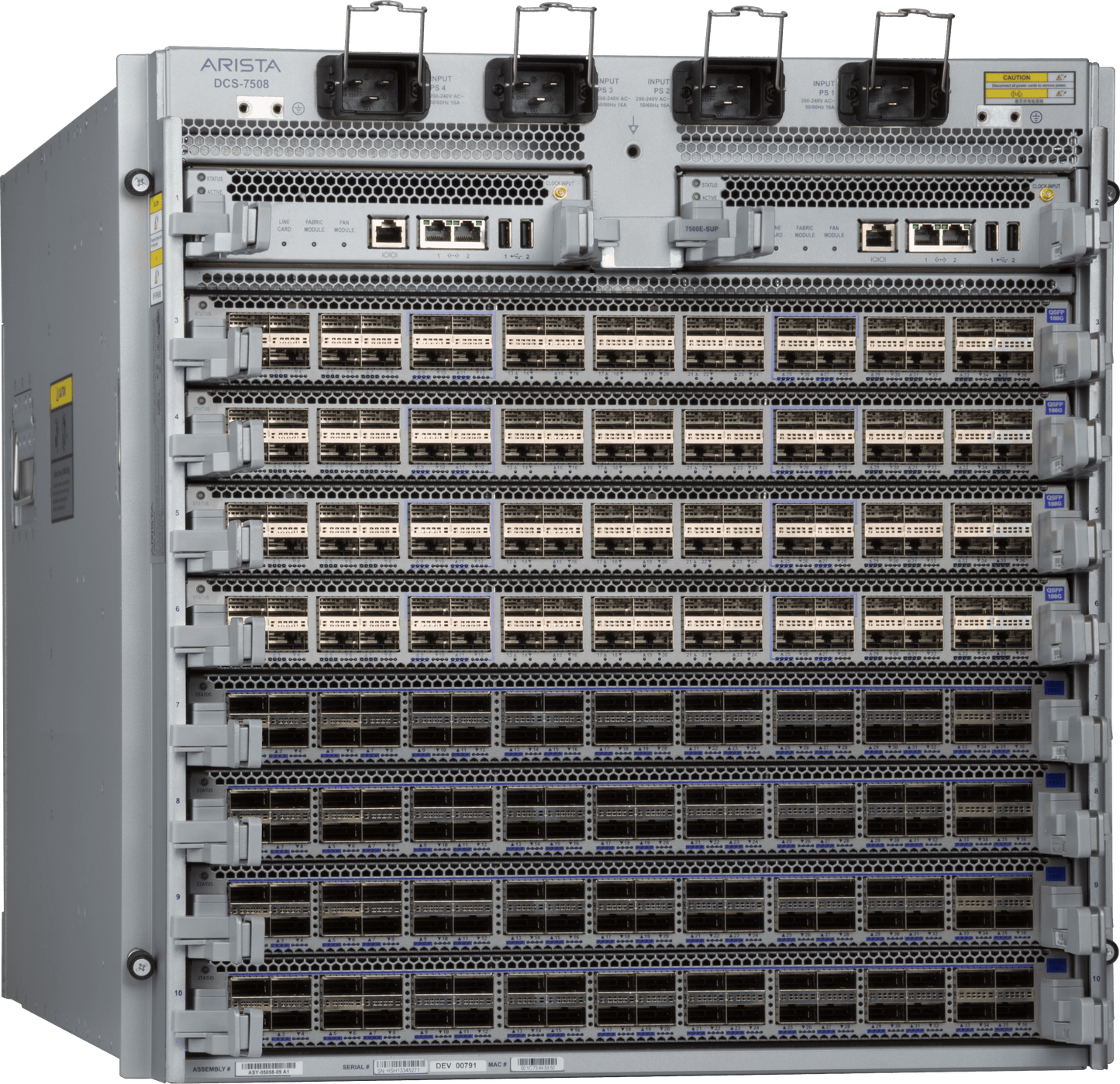

The Arista 7508R chassis bundle is a modular data centre switch chassis built on the 7500R Series platform. It combines an 8-slot, 13RU 7508N chassis with six 3kW AC power supplies, six FM-R fabric modules and a Sup2-D supervisor module, giving you a ready-to-populate core for high-density data centre spine and routing deployments.

The chassis uses a passive midplane with control plane connectivity to the fabric and line card modules, front-to-rear airflow and rear-inserted power supplies. Fabric modules provide 5+1 redundancy. Line cards are ordered separately to match your port density and speed requirements.

Features

- Modular 8-slot chassis for data centre spine and routing deployments
- Passive midplane design
- Fabric modules with 5+1 redundancy
- Front-to-rear airflow for hot and cold aisle layouts
- Bundle includes power supplies, fabric modules and supervisor for faster deployment

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 7508N chassis: 8-slot, 13 RU, supports up to 8 line cards
- 6 x 3kW AC power supplies included
- 6 x FM-R fabric modules included (5+1 redundancy)
- 1 x Sup2-D supervisor module included
- Passive midplane with control plane connectivity to fabric and line card modules
- Front-to-rear airflow
- Power supplies inserted from the rear
- Line cards ordered separately

FAQs

Q: What is included in the DCS-7508R-BND-D bundle?
A: The bundle includes the 7508N chassis, six 3kW AC power supplies, six FM-R fabric modules and one Sup2-D supervisor module.

Q: Are line cards included?
A: No. Line cards are ordered separately, allowing you to choose the port types and speeds your deployment needs.

Q: How many line cards does the chassis support?
A: The 7508N chassis has 8 slots and supports up to 8 line cards.

Q: What power configuration does this bundle use?
A: This SKU is the AC-powered bundle with six 3kW power supplies, inserted from the rear of the chassis.

Q: What is the airflow direction?
A: Airflow is front-to-rear.

Q: How much rack space does it need?
A: The 7508N chassis is 13 RU.
