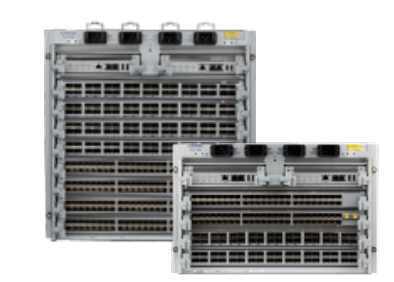

Arista DCS-7504E-BND | 7504E Modular Switch Chassis Bundle, 6x Fabric-E, 4x2900W PSU

Arista DCS-7504E-BND | 7504E Modular Switch Chassis Bundle, 6x Fabric-E, 4x2900W PSU

Authorised Arista Partner

SKU:DCS-7504E-BND

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7504R-BND.

Description

The Arista DCS-7504E-BND is a 7RU modular data centre switch chassis bundle from the Arista 7500E Series, built around a 7504E 4-slot chassis. It ships with four 2900W power supplies, six Fabric-E modules and one Supervisor-E, so the core platform is ready for line cards to be added for 10, 40 and 100GbE connectivity.

The 7504E accepts any combination of 7500E line cards and supports dual supervisor redundancy for a resilient control plane. Front-to-rear airflow suits hot and cold aisle data centre layouts, and deep packet buffers make the platform well suited to demanding spine and core deployments. Line cards are ordered separately.

Features

- Supports any combination of 7500E line cards in the 4-slot chassis
- Dual supervisor redundancy supported
- Resilient control plane with the ability to run user applications in a VM
- Front-to-rear airflow for optimised data centre cooling
- Low power draw of about 4W per 10GbE port (typical)
- Flexible 10/40/100GbE line card options

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 7RU modular chassis with 4 line card slots
- 2 supervisor slots, 1x Supervisor-E included
- 6 fabric module slots, 6x Fabric-E modules included
- 4x 2900W power supplies included
- Up to 15 Tbps throughput and 7.2 Bpps forwarding rate when fully loaded
- 4096 VLANs
- Front-to-rear airflow
- Supervisor: quad-core hyper-threaded x86 CPU, 16GB DRAM, 4GB flash
- Deep packet buffer, 18GB per line card
- 9,216 Virtual Output Queues per port
- Line cards ordered separately

FAQs

Q: Does the DCS-7504E-BND include line cards?
A: No. The bundle includes the 7504E chassis, four 2900W power supplies, six Fabric-E modules and one Supervisor-E. 7500E line cards are ordered separately.

Q: How many line card slots does this chassis have?
A: The 7504E has 4 line card slots and 2 supervisor slots, with one Supervisor-E included in this bundle.

Q: Can I add a second supervisor for redundancy?
A: Yes. The chassis has two supervisor slots and supports dual supervisor redundancy. A second Supervisor-E is ordered separately.

Q: What port speeds can I deploy with this chassis?
A: Port speeds depend on the 7500E line cards installed. The platform supports flexible 10GbE, 40GbE and 100GbE line card options.

Q: What airflow does the 7504E use?
A: The chassis uses front-to-rear airflow, which suits standard hot and cold aisle data centre cooling designs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
