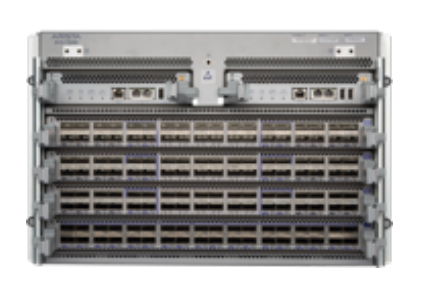

Arista DCS-7504R-BND | 7500R 4-Slot Chassis Switch Bundle, 4x 3kW PSU, 6x FM-R, Sup2

Arista DCS-7504R-BND | 7500R 4-Slot Chassis Switch Bundle, 4x 3kW PSU, 6x FM-R, Sup2

Authorised Arista Partner

SKU:DCS-7504R-BND

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This product is end of life. Contact us for alternatives.

Description

The Arista DCS-7504R-BND is a 7500R Series 4-slot, 7RU modular chassis switch bundle built for data centre spine, internet peering and data center interconnect deployments. It includes the 7504N chassis, four 3kW power supplies, six R-series fabric modules and one Supervisor 2 module, so the core platform is ready for line cards to be added.

The 7500R deep-buffer virtual output queue architecture delivers lossless, wire-speed forwarding and eliminates head-of-line blocking. With fully populated line cards, the chassis scales to 144 x 40GbE/100GbE or 576 x 10GbE/25GbE ports. Line cards are ordered separately, and the chassis supports both 7500R and 7500E series line cards.

Features

- Deep-buffer VOQ architecture eliminates head-of-line blocking
- Lossless distributed fabric with wire-speed forwarding
- Supports 7500R and 7500E series line cards
- Supports 10GbE, 25GbE, 40GbE, 50GbE and 100GbE line card options
- Redundant supervisor, power and fabric design
- Suited to internet peering and data center interconnect with large routing tables

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: modular chassis switch bundle
- Chassis: 7504N, 4-slot, 7RU
- Line card slots: 4 (none included, blanks supplied)
- Supervisor slots: 2
- Included supervisor: 1x DCS-7500-SUP2 Supervisor 2 (6-core Intel Xeon CPU, 32GB RAM)
- Included fabric modules: 6x DCS-7504R-FM
- Included power supplies: 4x PWR-3KT-AC-RED 3kW AC
- Maximum port density with fully populated line cards: up to 144 x 40GbE/100GbE or 576 x 10GbE/25GbE
- System usable capacity: 37.5 Tbps (7504R)
- Architecture: deep-buffer virtual output queue (VOQ)

FAQs

Q: What is included in the DCS-7504R-BND bundle?
A: The bundle includes the 7504N chassis, four PWR-3KT-AC-RED 3kW AC power supplies, six DCS-7504R-FM fabric modules and one DCS-7500-SUP2 Supervisor 2 module.

Q: Are line cards included?
A: No. The chassis has four line card slots and ships with blanks only. Line cards are ordered separately to suit your port speed and density requirements.

Q: Which line cards are compatible with the 7504R chassis?
A: The 4-slot chassis supports 7500R and 7500E series line cards, with options covering 10GbE, 25GbE, 40GbE, 50GbE and 100GbE.

Q: How many ports can the chassis support?
A: With fully populated line cards, it supports up to 144 x 40GbE/100GbE ports or up to 576 x 10GbE/25GbE ports.

Q: Does the chassis support supervisor redundancy?
A: Yes. There are two supervisor slots, and the bundle includes one Supervisor 2 module. A second supervisor can be added for redundancy.

Q: What kind of buffering does the 7500R Series use?
A: It uses a deep-buffer virtual output queue (VOQ) architecture, which provides a lossless fabric and avoids head-of-line blocking.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
