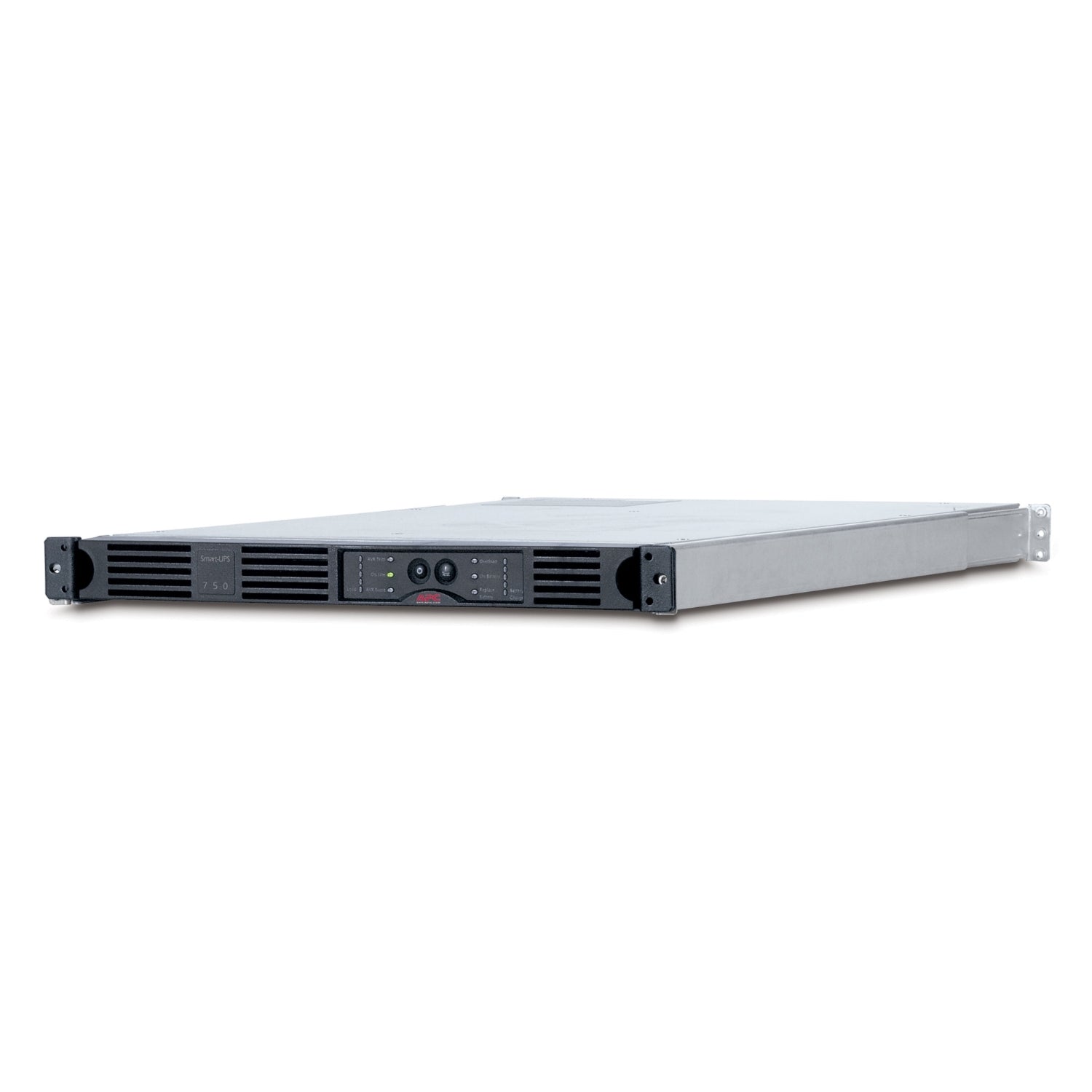

• APC SUA750RMI1U 1U rack-mount UPS with silver chassis and black front panel
1 1

APC

APC SUA750RMI1U | Smart-UPS 750 Rack UPS, 750VA, 480W, 1U, USB & Serial

APC SUA750RMI1U | Smart-UPS 750 Rack UPS, 750VA, 480W, 1U, USB & Serial

Authorised APC Partner

SUA750RMI1U

Stock Status: Enquire

$1,166.47 inc. GST
$1,060.43 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This item has been replaced by SMT750RMI2UC.

Description

The APC Smart-UPS 750 SUA750RMI1U is a line-interactive 1U rack-mount UPS rated at 750VA / 480W with 230V input and output. It provides battery backup and power conditioning for servers, switches, routers and POS equipment, with both USB and RS-232 serial connectivity for monitoring and automatic safe shutdown.

The slim 19 inch rack design suits high-density racks, and a SmartSlot accepts optional management accessories such as a network management card. Four IEC C13 outlets and two IEC jumper outlets allow connection of multiple devices, while PowerChute software supports graceful shutdown during extended outages.

Features

- Slim 1U design for high-density racks
- SmartSlot for optional management accessories such as a network card
- PowerChute software for automatic safe shutdown
- USB and serial connectivity for monitoring and control
- Automatic self-test and sine wave output
- Rack mounting brackets and support rails included
- Certifications include CE, C-tick, GOST and VDE

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- 750VA / 480W rated capacity
- Line-interactive topology
- 1U rack-mount, 19 inch
- 230V input and output, 50/60 Hz auto-sensing
- Input voltage limits 160-286V (adjustable 151-302V)
- Input connection: IEC 320 C14
- Output connections: 4 x IEC C13, 2 x IEC jumper
- Output harmonic distortion below 5% at full load
- USB and RS-232 serial ports, 1 x SmartSlot
- Lead-acid battery, replacement battery RBC34
- Battery recharge time: 2 hours
- Dimensions: 44 mm (H) x 432 mm (W) x 660 mm (D)
- Net weight: 21.82 kg
- Colour: Black

FAQs

Q: What is the power rating of the SUA750RMI1U?
A: It is rated at 750VA / 480W with 230V input and output at 50/60 Hz.

Q: How many outlets does it provide?
A: It provides four IEC C13 outlets and two IEC jumper outlets.

Q: Can I add network management to this UPS?
A: Yes. It has one SmartSlot that accepts optional management cards such as a network management card.

Q: Which replacement battery does it use?
A: The replacement battery cartridge is the RBC34.

Q: What is included in the box?
A: It includes a CD with software, rack mounting brackets, support rails, an RS-232 cable, a USB cable and a user manual.

Q: How much rack space does it need?
A: It is a 1U unit that mounts in a standard 19 inch rack and is 660 mm deep.
