• APC SMT750RMI2UC Smart-UPS 750VA rackmount UPS with display
1 1

APC

APC SMT750RMI2UC | Smart-UPS SMT 750VA Rack UPS, 500W, 2U, SmartConnect, 230V

APC SMT750RMI2UC | Smart-UPS SMT 750VA Rack UPS, 500W, 2U, SmartConnect, 230V

Authorised APC Partner

SMT750RMI2UC

In stock:64

$938.63 inc. GST
$853.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

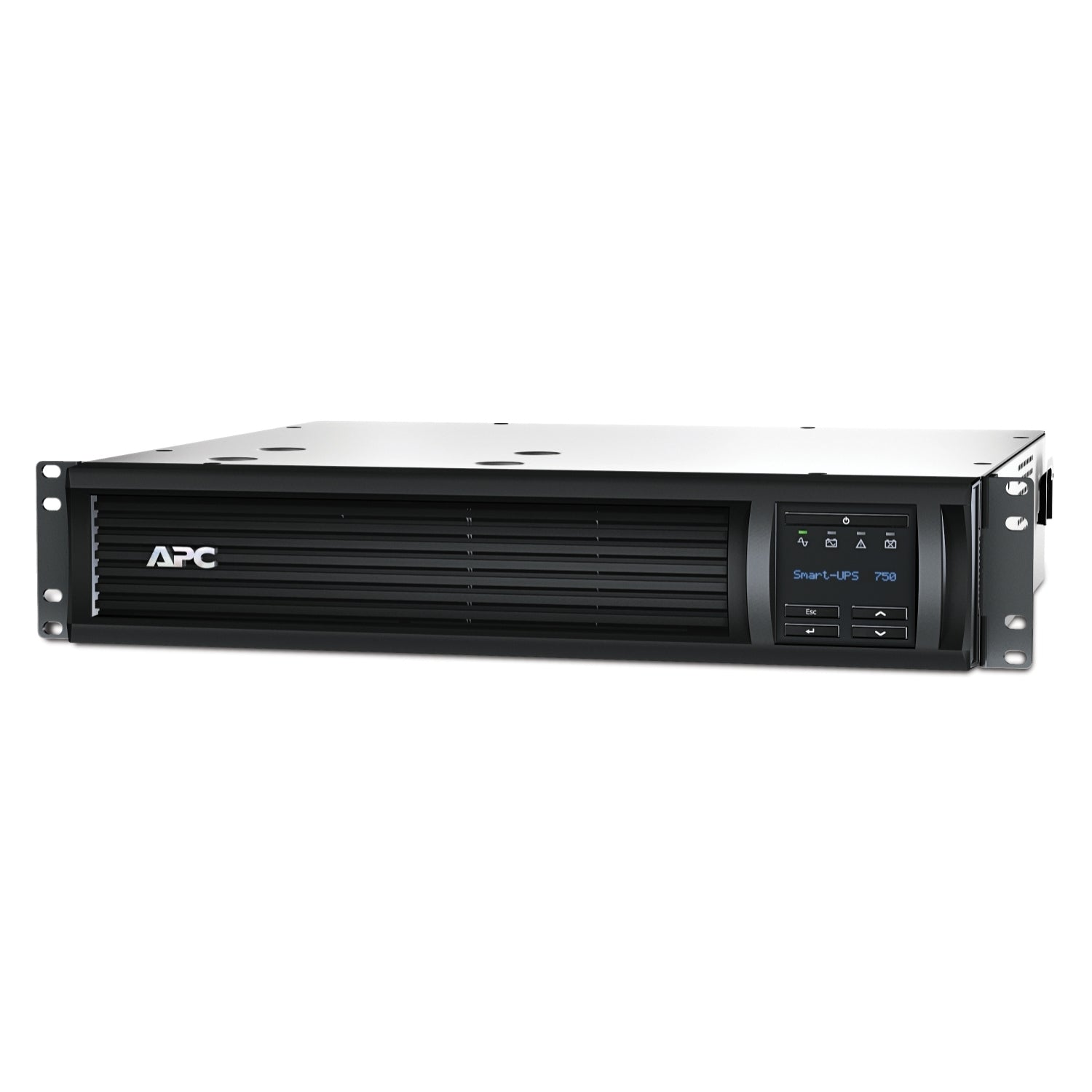

The APC Smart-UPS SMT750RMI2UC is a 750VA/500W line-interactive rackmount UPS in a 2U form factor, delivering pure sine wave output on battery. It suits network closets, small server rooms and branch offices where compatibility with active PFC power supplies matters. The LCD interface and SmartConnect cloud monitoring give IT teams clear visibility of power status and battery health.

This 230V model provides four IEC C13 outlets plus two IEC jumpers, a single switched outlet group for remote reboot and load shedding, and a SmartSlot for optional management cards. USB and RJ-45 serial ports are included for local management. A hot-swappable lead-acid battery (APCRBC123) and a bundled rack mount kit make installation and maintenance straightforward.

Features

- SmartConnect remote monitoring with automatic notifications and firmware updates
- Pure sine wave output on battery for compatibility with active PFC servers
- Hot-swappable battery for tool-free replacement without powering down
- Intuitive multilingual LCD interface for status and configuration
- Green mode for high efficiency operation
- Energy meter showing actual kWh usage
- Predictive battery replacement date
- Single switched outlet group for remote reboot and load shedding
- Cold-start capable
- SmartSlot for optional network management cards

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Capacity: 750VA / 500W
- Topology: Line-interactive
- Output waveform: Pure sine wave on battery
- Form factor: 2U rackmount
- Nominal output voltage: 230V (configurable 220/230/240V)
- Output connections: 4x IEC C13 plus 2x IEC jumpers
- Input connection: IEC-320 C14
- Input voltage range: 160-286V
- Input frequency: 50/60Hz auto sensing
- Surge energy rating: 459 J
- Efficiency: 97.7%
- Battery: Sealed lead acid (VRLA), replacement cartridge APCRBC123
- Runtime: 5.5 minutes at full load, 16 minutes at half load
- Battery recharge time: 3 hours
- Interfaces: USB, RJ-45 serial, SmartSlot, SmartConnect
- Dimensions (H x W x D): 89 x 432 x 406 mm
- Weight: 16.6 kg
- Operating temperature: 0 to 40 C
- Audible noise: 42 dB
- Included: Rack mount kit, RS-232 and USB cables, quick installation guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the SMT750RMI2UC produce a pure sine wave output?
A: Yes. It outputs a pure sine wave on battery, which suits servers and network equipment with active PFC power supplies.

Q: What outlets does this UPS provide?
A: It has four IEC C13 outlets plus two IEC jumpers. A single switched outlet group allows remote reboot and load shedding.

Q: What battery does it use and can it be replaced on site?
A: It uses a sealed lead-acid battery, replacement cartridge APCRBC123. The battery is hot-swappable.

Q: How does SmartConnect work on this model?
A: SmartConnect provides cloud-based remote monitoring with automatic notifications and firmware updates, without needing a separate management card.

Q: Can I add a network management card?
A: Yes. The unit includes a SmartSlot that accepts optional APC management cards for network-based monitoring and control.

Q: Is a rack mount kit included?
A: Yes. The 2U rackmount kit, RS-232 and USB cables, and a quick installation guide are included.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.
