APC GVSBTH4LL | Galaxy VS Smart Modular Battery String, 9Ah, Long Life

APC GVSBTH4LL | Galaxy VS Smart Modular Battery String, 9Ah, Long Life

Authorised APC Partner

GVSBTH4LL

Stock Status: Enquire

$3,681.15 inc. GST
$3,346.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

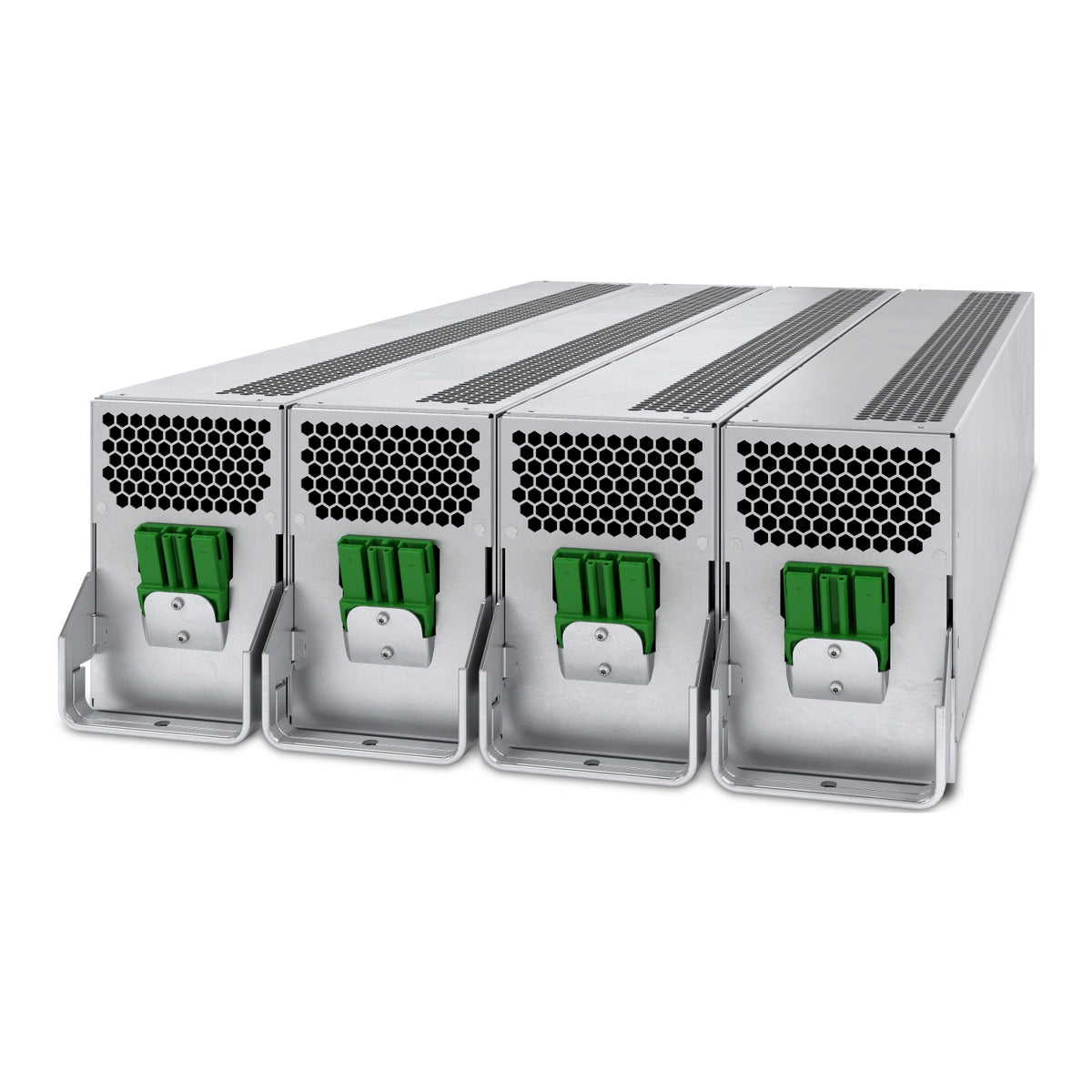

The Galaxy VS Smart Modular Battery String is a high capacity UPS battery string built from four 9Ah long-life VRLA battery modules. It is designed for Galaxy VS UPS systems, where it can be installed as the internal batteries or used in a battery cabinet to provide backup runtime.

Smart modular battery technology allows the batteries to be monitored easily, and the string delivers 120 V battery output with a design life of 10-12 years. The 9Ah long-life variant suits sites that need dependable, long-service backup power with simple battery management.

Features

- Compatible with Galaxy VS UPSs for internal 9 Ah batteries
- Smart modular battery technology for easy monitoring
- Includes 4 battery modules
- Long-life VRLA batteries

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Battery type: VRLA
- Battery capacity: 9 Ah
- Includes 4 battery modules
- Battery output voltage: 120 V
- Battery mounting: Enclosed battery cabinet
- Battery design life: 10-12 years
- Maximum height: 157 mm
- Maximum width: 428 mm
- Maximum depth: 760 mm
- Net weight: 114.0 kg
- Shipping weight: 140.5 kg
- Shipping dimensions: 310 mm H x 800 mm W x 600 mm D
- Environmental compliance: REACH, RoHS

FAQs

Q: Which UPS systems is this battery string designed for?
A: It is designed for Galaxy VS UPS systems, where it can be used for the internal 9 Ah batteries or in a battery cabinet.

Q: How many battery modules are included?
A: The string includes four 9Ah long-life VRLA smart modular battery modules.

Q: What is the expected battery design life?
A: The batteries have a design life of 10-12 years.

Q: What is the battery output voltage?
A: The battery string provides a 120 V battery output.

Q: Can it be used in a battery cabinet?
A: Yes, the batteries are intended for mounting in an enclosed battery cabinet or as the internal batteries of a Galaxy VS UPS.

Q: What does smart modular battery technology provide?
A: It allows the battery modules to be monitored easily, supporting simpler battery management.
