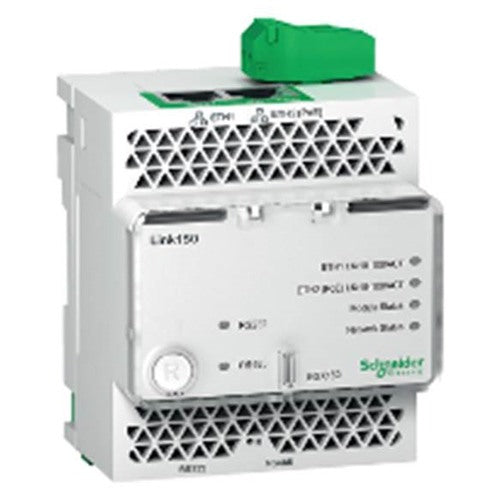

• APC EGX150POE Link150 Gateway white Schneider Electric switch with green terminal cover
1 1

APC

APC EGX150POE | Link150 Ethernet Gateway, 2x 10/100, DIN-Rail, PoE

APC EGX150POE | Link150 Ethernet Gateway, 2x 10/100, DIN-Rail, PoE

Authorised APC Partner

EGX150POE

Stock Status: Enquire

$1,174.67 inc. GST
$1,067.88 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC EGX150POE EcoStruxure IT Link150 Ethernet gateway with PoE is a compact DIN-rail unit that connects Modbus serial devices to an Ethernet network. It provides serial-to-Ethernet protocol conversion, two 10/100 Mbit/s RJ45 Ethernet ports and can be powered by IEEE 802.3af Class 3 Power over Ethernet (15 W maximum) or by an external 24 V DC supply, which simplifies installation in modular enclosures.

The gateway supports Modbus TCP/IP, Modbus RTU/ASCII, JBUS and PowerLogic (SY/MAX) alongside HTTP, FTP and SNMP (MIB II), with up to 32 devices connected directly and 247 indirectly. It works with APC Data Center Expert for auto-discovery, mass configuration and mass firmware updates across an EcoStruxure IT monitoring deployment.

Features

- Compact DIN-rail design that fits a modular enclosure
- Dual power options: 24 V DC or PoE, which simplifies installation
- Serial-to-Ethernet protocol conversion for Modbus devices
- Two Ethernet ports allow devices to be daisy-chained
- Works with APC Data Center Expert for auto-discovery, mass configuration and mass firmware update

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 2 x 10/100 Mbit/s Ethernet ports (RJ45, switch capable, daisy-chain capable)
- PoE IEEE 802.3af Class 3, 15 W maximum
- External supply 19.2-26.4 V DC, less than 500 mA
- Current consumption: 130 mA at 24 V DC; 65 mA at 48 V DC via PoE
- 2 serial ports (RS232 or RS485 2-wire/4-wire, 1 available at a time)
- Protocols: Modbus TCP/IP, Modbus RTU/ASCII, JBUS, PowerLogic (SY/MAX), HTTP, FTP, SNMP (MIB II)
- Serial baud rates 2400-57600 bps (19200 default)
- Up to 32 devices connected directly, 247 indirectly
- Dimensions (HxWxD): 72 x 105 x 71 mm
- Weight: 175 g
- Mounting: 35 mm DIN rail
- Ethernet isolation 6 kV; serial isolation 2.5 kV
- Compliance: RCM (C-tick), Green Premium

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How is the APC EGX150POE powered?
A: It can be powered by IEEE 802.3af Class 3 Power over Ethernet (15 W maximum) or by an external 19.2-26.4 V DC supply.

Q: Which protocols does the Link150 gateway support?
A: It supports Modbus TCP/IP, Modbus RTU/ASCII, JBUS, PowerLogic (SY/MAX), HTTP, FTP and SNMP (MIB II).

Q: How many devices can be connected to the gateway?
A: Up to 32 devices can be connected directly and up to 247 indirectly.

Q: What serial interfaces does it offer?
A: It has two serial ports supporting RS232 or RS485 (2-wire or 4-wire), with one available at a time, at baud rates from 2400 to 57600 bps.

Q: Does it work with APC monitoring software?
A: Yes. It works with APC Data Center Expert for auto-discovery, mass configuration and mass firmware updates within an EcoStruxure IT deployment.

Q: How is the gateway mounted?
A: It mounts on a standard 35 mm DIN rail and measures 72 x 105 x 71 mm, so it fits into a modular enclosure.
