APC E3SUPS15KH | Easy UPS 3S 15kVA Online UPS, 400V 3:3, External Batteries

Name: APC E3SUPS15KH | Easy UPS 3S 15kVA Online UPS, 400V 3:3, External Batteries
Brand: APC
SKU: E3SUPS15KH
Price: 9867.34 AUD
Availability: Discontinued

Authorised APC Partner

SKU:E3SUPS15KH

Stock Status: Enquire

$9,867.34 inc. GST

$8,970.31 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

End of life

This item has been replaced by E3SP15KH.

Description

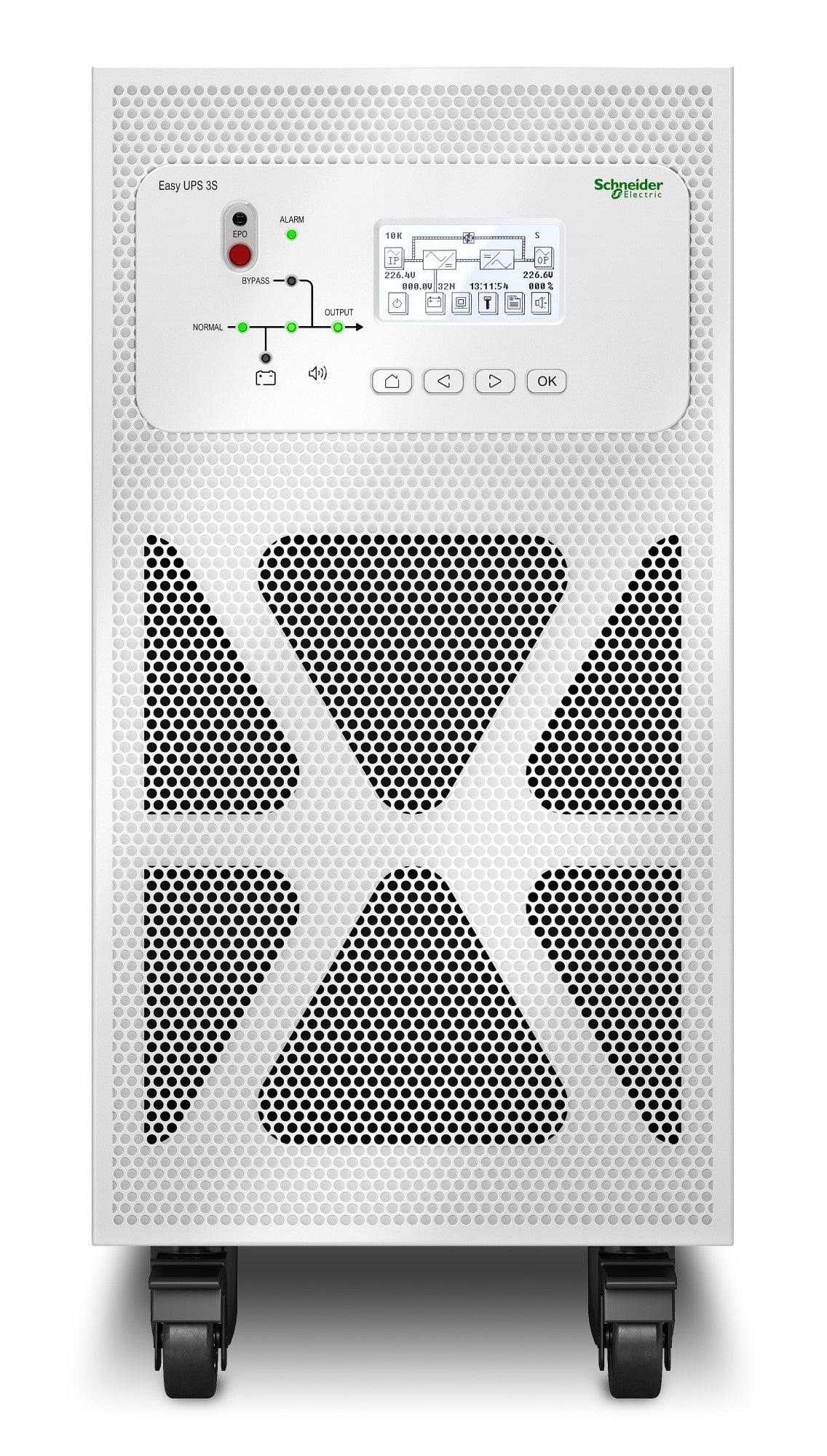

The Easy UPS 3S 15kVA is a three-phase 400V 3:3 double-conversion online UPS rated at 15kVA / 15kW, built for data centres, server rooms and electrical rooms in small and medium businesses. This low tower model ships without batteries, so an external battery solution can be matched to the runtime your site requires.

It includes a built-in maintenance bypass, a dust filter and conformance-coated boards for harsher environments, and a USB interface for monitoring. Output frequency is selectable at 50 or 60 Hz with synchronisation to mains, and the compact 53 x 25 x 70 cm cabinet suits space-constrained installations.

Features

- Double-conversion online protection for critical loads
- Three-phase 400V 3:3 input and output
- Supplied without batteries so the battery solution can be customised
- Built-in maintenance bypass
- Dust filter and conformance-coated boards for harsh environments
- Easy to install, operate, maintain and service
- Compact low tower cabinet
- Green Premium sustainable product, mercury free

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Rated power: 15 kVA / 15 kW
- Topology: double-conversion online
- Input and output: 400 V three-phase (3:3), also 380 V and 415 V
- Input voltage limits: 304 to 477 V
- Maximum input current: 28 A
- Network frequency: 45 to 65 Hz
- Output frequency: 50 Hz or 60 Hz, sync to mains
- Load power factor: 0.9 leading to 0.9 lagging
- Output harmonic distortion: less than 3% (linear load)
- Overload: 10 minutes at 125%, 60 seconds at 150%
- Crest factor: 3:1
- Maximum short-circuit current: 10 kA
- Battery type: external battery system (no batteries included)
- Bypass: built-in maintenance bypass
- Interface: USB compatible
- Dimensions (H x W x D): 53 x 25 x 70 cm
- Net weight: 36 kg
- Colour: White (RAL 9003)
- Acoustic level: 60 dBA
- Operating temperature: 0 to 40 °C
- Humidity: 0 to 95% non-condensing
- Protection rating: IP20
- Certifications: CE, EAC, RCM

FAQs

Q: Does the Easy UPS 3S 15kVA include batteries?
A: No. This model is supplied without batteries and is designed for an external battery system, so you can size the battery solution to your required runtime.

Q: What input and output voltage does it use?
A: It is a 400V three-phase 3:3 unit, with 380V and 415V also supported. The input voltage window is 304 to 477 V.

Q: What is the real power rating?
A: It is rated at 15 kVA and 15 kW, with a load power factor range of 0.9 leading to 0.9 lagging.

Q: Does it have a maintenance bypass?
A: Yes. A maintenance bypass is built in, allowing the UPS to be serviced without interrupting the connected load.

Q: Is it suitable for dusty or harsh environments?
A: It includes a dust filter and conformance-coated boards for harsher environments. It has an IP20 rating and operates from 0 to 40 °C.

Q: What is the output frequency?
A: Output is 50 Hz or 60 Hz, synchronised to the mains.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
