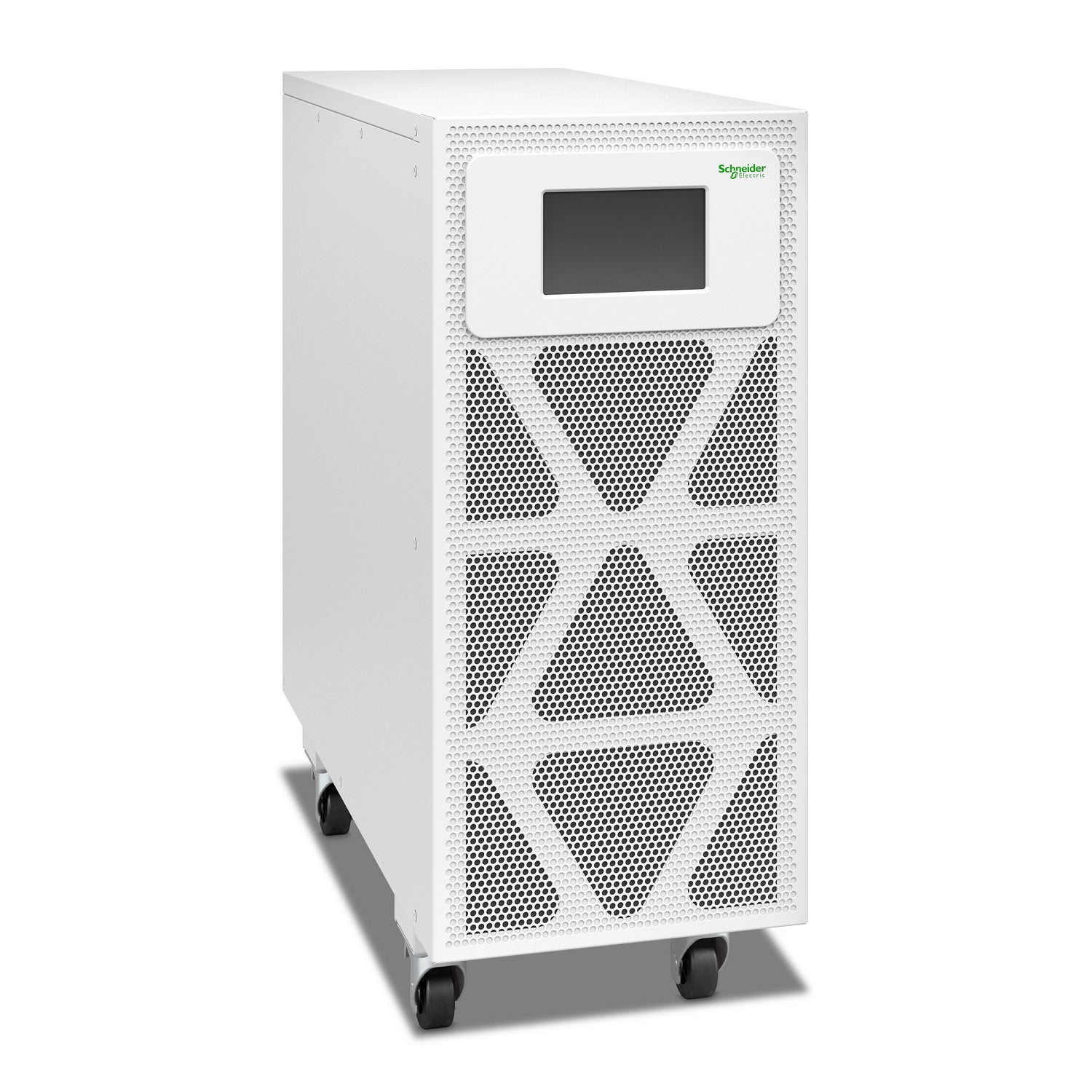

APC E3SP15KH | Easy UPS 3S Pro Online UPS, 15kVA, External Batteries

Name: APC E3SP15KH | Easy UPS 3S Pro Online UPS, 15kVA, External Batteries
Brand: APC
SKU: E3SP15KH
Price: 9809.95 AUD
Availability: BackOrder

Authorised APC Partner

SKU:E3SP15KH

Stock Status: Enquire

$9,809.95 inc. GST

$8,918.14 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The APC Easy UPS 3S Pro 15kVA 400V 3:3 online UPS delivers 15 kVA / 15 kW of three-phase double-conversion power protection for small data centres, server rooms and electrical rooms. This variant is supplied without batteries and is designed for external VRLA battery packs, so the battery solution can be sized to the runtime your site needs.

With 400 V three-phase input and output, a load power factor range from 0.7 leading to 0.7 lagging without derating, and low input harmonic distortion, the Easy UPS 3S Pro is built for efficient, clean power. A touch screen LCD simplifies setup and monitoring, an optional network management card supports remote management, and a dust filter with conformance-coated boards suits harsher environments.

Features

- Online double-conversion protection for critical three-phase loads
- Supplied without batteries so the battery solution can be customised
- Compatible with VRLA batteries, with extended runtime options available
- Touch screen LCD for simple setup and monitoring
- Easy to install and start up
- Dust filter and conformance-coated boards for harsh environments
- Optional network management card support
- Access to EcoStruxure software for resiliency and sustainability

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rated power: 15 kVA / 15 kW
- Topology: online double-conversion, 3:3 three-phase
- Input voltage: 400 V AC 3-phase (380/415 V also supported)
- Input frequency: 40-70 Hz
- Maximum input current: 23 A
- Input harmonic distortion: less than 3% at full load
- Load power factor: 0.7 leading to 0.7 lagging without derating
- Output voltage: 400 V AC 3-phase
- Output frequency: 50/60 Hz
- Output harmonic distortion: less than 1% linear load, less than 5% non-linear load
- Battery type: external lead-acid (VRLA), batteries not included
- Maximum short time withstand current: 16 kA
- Control panel: touch screen LCD user interface
- Colour: white
- Height: 629 mm

FAQs

Q: Does the E3SP15KH include batteries?
A: No. This model is supplied without batteries and requires external VRLA batteries, which lets you size the battery solution to your runtime requirements.

Q: What input and output configuration does it use?
A: It is a 3:3 UPS with 400 V AC three-phase input (380/415 V also supported) and 400 V AC three-phase output.

Q: What load capacity does it support?
A: It is rated at 15 kVA / 15 kW, with a load power factor range from 0.7 leading to 0.7 lagging without derating.

Q: Can the runtime be extended?
A: Yes. Because it uses external batteries, runtime can be extended by adding battery capacity, and extended runtime options are available.

Q: Can it be managed remotely?
A: It supports an optional network management card for remote monitoring, and can be used with EcoStruxure software.

Q: Is it suitable for dusty or harsh environments?
A: Yes. It includes a dust filter and conformance-coated boards to help protect the unit in harsher environments.
