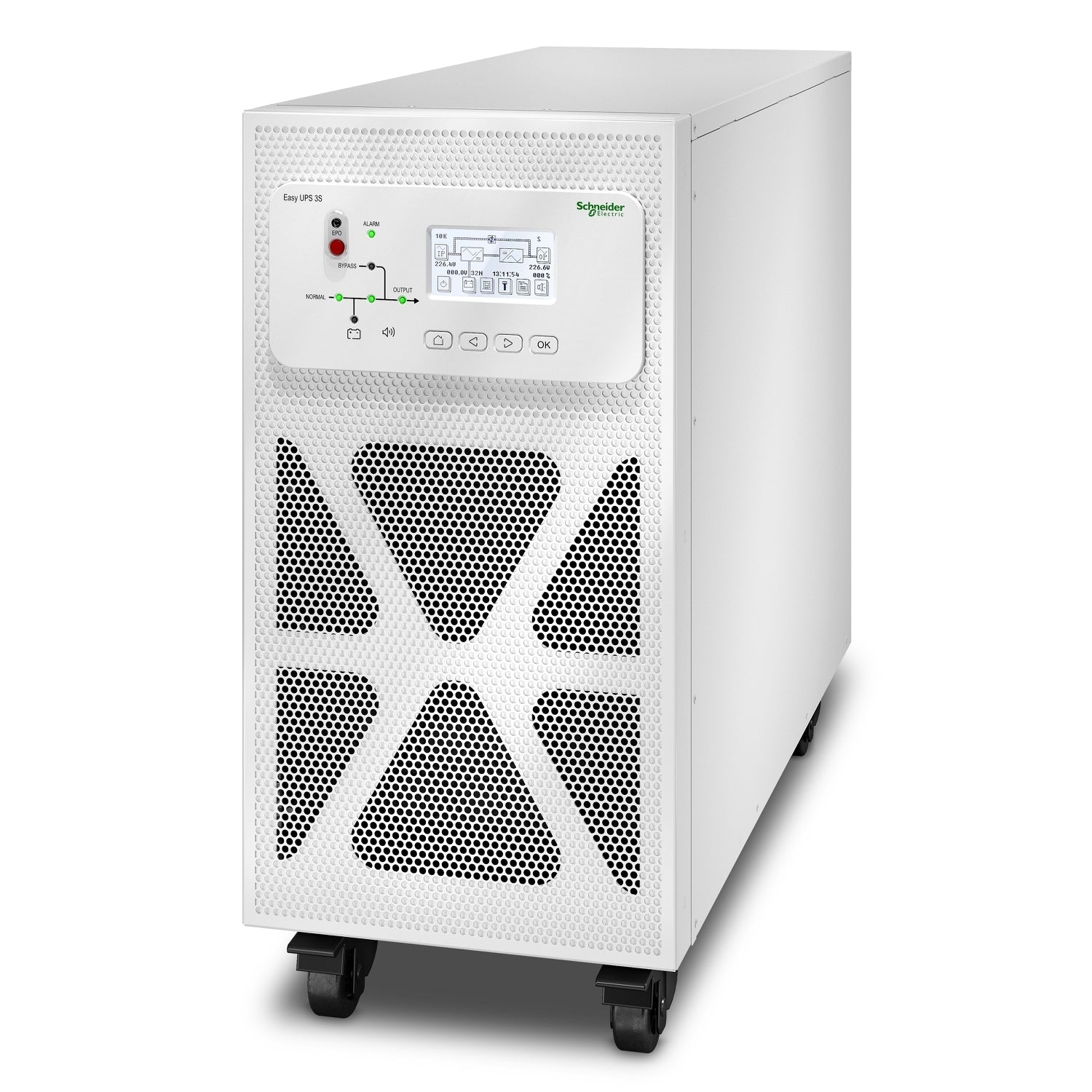

• White Schneider Electric easy UPS 3S 10kVA tower UPS with perforated front panel and black caster wheels for 3-phase power
1 1

APC

APC E3SUPS10KH | Easy UPS 3S Online 3-Phase UPS, 10kVA, 10kW, External Batteries

APC E3SUPS10KH | Easy UPS 3S Online 3-Phase UPS, 10kVA, 10kW, External Batteries

Authorised APC Partner

E3SUPS10KH

Stock Status: Enquire

$8,824.46 inc. GST
$8,022.24 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This item has been replaced by E3SP10KH.

Description

The Easy UPS 3S 10kVA online UPS is a three-phase (3:3) double-conversion tower UPS delivering 10 kVA / 10 kW of clean, pure sine wave power for small and medium businesses. This model is supplied without batteries and is designed for external battery solutions only, so you can size runtime to suit your site with a custom battery cabinet or string.

Built for easy deployment, it includes input, output and bypass breakers and an EPO switch, front-access servicing, and an Easy Loop Test that verifies UPS performance before the load is connected, with no load bank required. Replaceable dust filters and conformance-coated boards protect it in harsh environments, a SmartSlot accepts an optional network management card, and parallel capability supports capacity and redundancy growth.

Features

- Easy Loop Test verifies UPS performance before connecting the load, without a load bank
- Front-access servicing simplifies installation and maintenance
- ECO mode for high operating efficiency
- Input, output and bypass breakers and EPO switch included to simplify installation
- Wide input voltage window preserves battery power for real outages
- Replaceable dust filters protect the UPS in harsh environments
- Parallel capability for capacity and redundancy
- Conformance-coated boards for harsh environments

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- 10 kVA / 10 kW output power
- Double conversion online topology, pure sine wave
- 3-phase input / 3-phase output (3:3)
- Input operating voltage range: 304 - 477 V
- Input frequency: 45/65 Hz, input power factor 0.99
- Output voltage: 400 V (380 V or 415 V configurable)
- Output frequency: 50/60 Hz (sync to mains)
- Maximum current: 18 A
- Overload capacity: 125% for 10 minutes, 150% for 1 minute
- External batteries only, batteries not included
- Hardwired AC connection
- SmartSlot for optional network management card
- Tower form factor, IP20, white
- Operating temperature: 0 - 40 C
- Noise level: 60 dB
- Dimensions (W x D x H): 250 x 700 x 530 mm
- Weight: 36 kg

FAQs

Q: Does the Easy UPS 3S 10kVA include batteries?
A: No. This model is supplied for external batteries only, so a compatible external battery solution must be provided separately to set the runtime you need.

Q: Is this a three-phase UPS?
A: Yes. It has a 3-phase input and 3-phase output (3:3) with a nominal 400 V output, configurable to 380 V or 415 V, at 50/60 Hz.

Q: How is the UPS connected to power and the load?
A: It uses hardwired connections rather than standard outlets, and input, output and bypass breakers and an EPO switch are included to simplify installation.

Q: Can I add network management to this UPS?
A: Yes. It has a SmartSlot for an optional network management card. A management card is not included.

Q: What is the overload capacity?
A: It supports 125% load for 10 minutes and 150% load for 1 minute.

Q: Can multiple units be paralleled?
A: Yes. The Easy UPS 3S supports parallel capability for additional capacity and redundancy.
