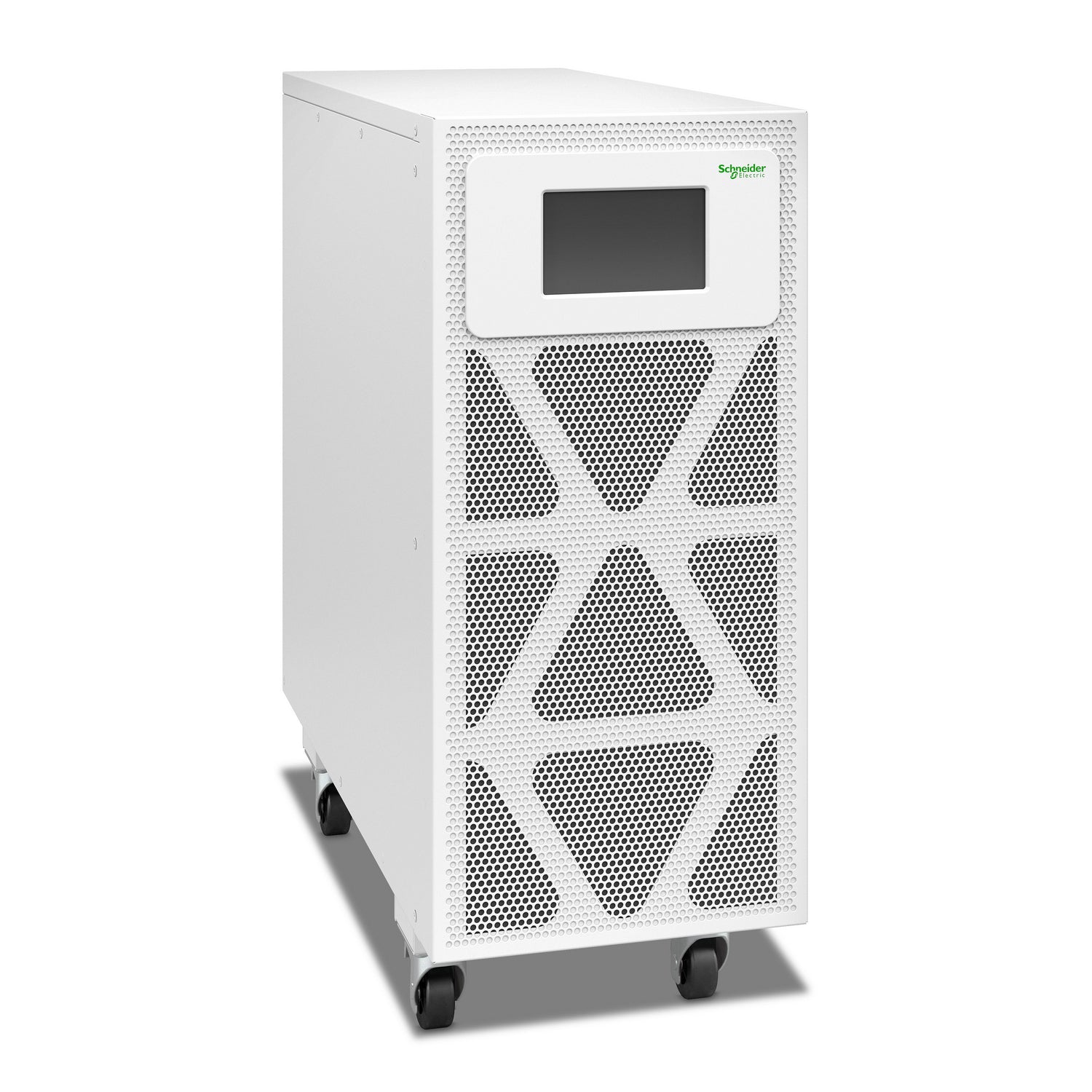

APC E3SP10KH | Easy UPS 3S Pro Online UPS, 10kVA, 400V 3:3, External Batteries

Name: APC E3SP10KH | Easy UPS 3S Pro Online UPS, 10kVA, 400V 3:3, External Batteries
Brand: APC
SKU: E3SP10KH
Price: 8773.15 AUD
Availability: BackOrder

Authorised APC Partner

SKU:E3SP10KH

Stock Status: Enquire

$8,773.15 inc. GST

$7,975.59 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Easy UPS 3S Pro E3SP10KH is a three-phase 10 kVA / 10 kW online double-conversion UPS with 400 V 3:3 input and output, built for data centres and electrical rooms. It is supplied without batteries for use with an external battery system, so the battery solution and runtime can be matched to your site.

It delivers efficiency above 96% in double-conversion mode and includes a built-in maintenance bypass and backfeed protection. A dust filter and conformal-coated boards suit harsher environments, a network management card is pre-installed, and parallel operation supports higher power or N+1 redundancy.

Features

- Online double-conversion protection with efficiency above 96%
- Supplied without batteries so the battery solution and runtime can be customised
- Compatible with VRLA batteries, with extended runtime options available
- Built-in maintenance bypass for servicing without dropping the load
- Parallel operation to increase power or provide N+1 redundancy
- Dust filter and conformal-coated boards for harsh environments
- Built-in backfeed protection
- Pre-installed network management card with Modbus, RS485 and BACnet connectivity
- Easy to install and start up
- Access to EcoStruxure software for resiliency and sustainability

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Rated power: 10 kVA / 10 kW
- Topology: double-conversion online
- Input and output: 400 V three-phase (3:3), also 380 V and 415 V
- Input voltage range: 304-477 V at full load
- Input frequency: 45-65 Hz
- Maximum input current: 16 A
- Input power factor at full load: 0.99
- Input total harmonic distortion: less than 3% at full load
- Output frequency (sync to mains): 50 Hz / 60 Hz
- Output voltage distortion: less than 3%
- Load power factor: 0.7 leading to 0.7 lagging without derating
- Load crest factor: 3:1
- Overload: 10 minutes at 125%, 60 seconds at 150%
- Efficiency: above 96% in double-conversion mode
- Bypass: built-in maintenance bypass
- Battery: external battery system (VRLA lead-acid), supplied without batteries
- Battery charging power: up to 30% of UPS output power
- Operating temperature: 0 to 50 C (with derating)
- Connectivity: pre-installed network management card, Modbus, RS485, BACnet
- Included: dust filter, installation guide

FAQs

Q: Does the E3SP10KH include batteries?
A: No. It is supplied without batteries and is designed for an external VRLA battery system, so you can size the battery solution and runtime to your requirements.

Q: What input and output configuration does it use?
A: It is a 400 V 3:3 model, meaning three-phase input and three-phase output. It also supports 380 V and 415 V, and accepts an input range of 304-477 V at full load.

Q: Can I run two units in parallel?
A: Yes. Parallel operation is supported, either to increase power capacity or to provide N+1 redundancy.

Q: What is the rated capacity and efficiency?
A: The rated capacity is 10 kVA / 10 kW. Efficiency is above 96% in double-conversion mode.

Q: Does it have a maintenance bypass and network management?
A: Yes. A maintenance bypass is built in, and a network management card is pre-installed, with Modbus, RS485 and BACnet connectivity.

Q: Is it suitable for dusty or harsh environments?
A: It includes a dust filter and uses conformal-coated boards, which suit harsher environments. The operating temperature range is 0 to 50 C with derating.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
