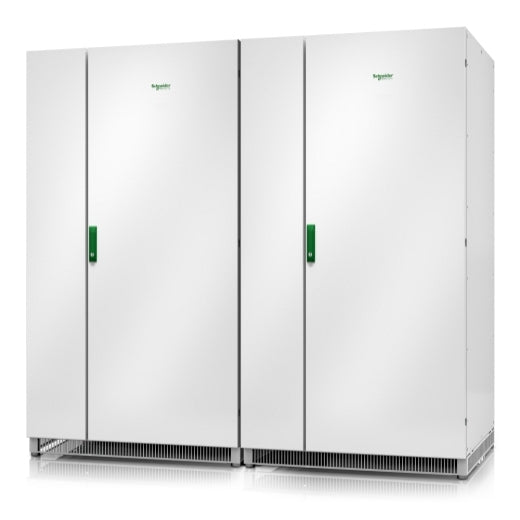

• White kärcher industrial refrigerator with green handles and sleek design in APC E3MCBC10E Easy UPS 3M classic battery cabinet
1 1

APC

APC E3MCBC10E | Easy UPS 3M Classic Battery Cabinet, IEC, 2x1000mm Dual Cabinet, Config E

APC E3MCBC10E | Easy UPS 3M Classic Battery Cabinet, IEC, 2x1000mm Dual Cabinet, Config E

E3MCBC10E

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The APC Easy UPS 3M Classic Battery Cabinet (Config E) is a dual-cabinet enclosed battery solution designed to extend the runtime of APC Easy UPS 3M 60–200kVA three-phase UPS systems. Built for small to medium-sized data centres and mission-critical environments, this Config E variant ships complete with VRLA batteries and a battery breaker, ready for fast deployment alongside compatible 3M series UPS units.

Spanning two 1000mm-wide enclosures, this cabinet delivers a robust, protected battery installation with an operating temperature range of 0–40°C and full compatibility with the EcoStruxure-connected UPS ecosystem. Its enclosed design safeguards batteries from the environment while simplifying installation, connection, and ongoing servicing. Order today from iptrading.com.au — Australia's IT hardware specialists.

Upgrade your network with gear from iptrading.com.au — Australia's IT hardware specialists.

Features

- Ships complete with VRLA batteries and battery breaker — no additional battery purchase needed
- Dual-cabinet (2 x 1000mm wide) enclosed design for high-capacity runtime extension
- Compatible with APC Easy UPS 3M 60–200kVA three-phase UPS systems
- Enclosed cabinet design protects batteries and improves installation safety
- EcoStruxure-connected UPS ecosystem compatible for centralised management
- Broad operating temperature range: 0°C to 40°C
- Designed for small to medium data centres and mission-critical applications
- Includes installation guide for streamlined deployment

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Battery Type: VRLA (Valve Regulated Lead Acid)
- Configuration: 2 x 1000mm wide (dual cabinet) — Config E
- Connector Type: IEC
- Maximum Height: 1895mm
- Maximum Width: 2004mm
- Maximum Depth: 845mm
- Net Weight: 2542 kg
- Shipping Weight: 2582 kg
- Shipping Dimensions (H x W x D): 1980mm x 2260mm x 970mm
- Operating Temperature: 0°C – 40°C
- Storage Temperature: -15°C – 40°C
- Compatible UPS: APC Easy UPS 3M 60–200kVA 3-Phase UPS

FAQs

Q: Which UPS systems is the E3MCBC10E compatible with?
A: The E3MCBC10E is designed specifically for use with APC Easy UPS 3M series three-phase UPS systems rated between 60kVA and 200kVA. Always verify compatibility with your specific UPS model before ordering.

Q: What does 'Config E' and '2 x 1000mm wide' mean?
A: Config E refers to a specific dual-cabinet configuration where two 1000mm-wide enclosed battery cabinets are combined to provide extended runtime capacity. This distinguishes it from single-cabinet or differently dimensioned configurations in the Easy UPS 3M battery cabinet range.

Q: Are batteries included with the E3MCBC10E?
A: Yes. This battery cabinet ships complete with VRLA (Valve Regulated Lead Acid) batteries and a battery breaker, so no separate battery purchase is required.

Q: Is the E3MCBC10E compatible with APC's EcoStruxure platform?
A: Yes. The Easy UPS 3M series and its associated battery cabinets are compatible with Schneider Electric's EcoStruxure-connected UPS ecosystem, enabling centralised monitoring and management.

Q: Can I purchase this battery cabinet in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware specialist and can supply the APC E3MCBC10E. Contact our team for pricing, availability, and freight options for this large-format item.

Q: What is the operating temperature range for the E3MCBC10E?
A: The cabinet is rated for operation between 0°C and 40°C, with a storage temperature range of -15°C to 40°C, making it suitable for standard data centre and server room environments.
