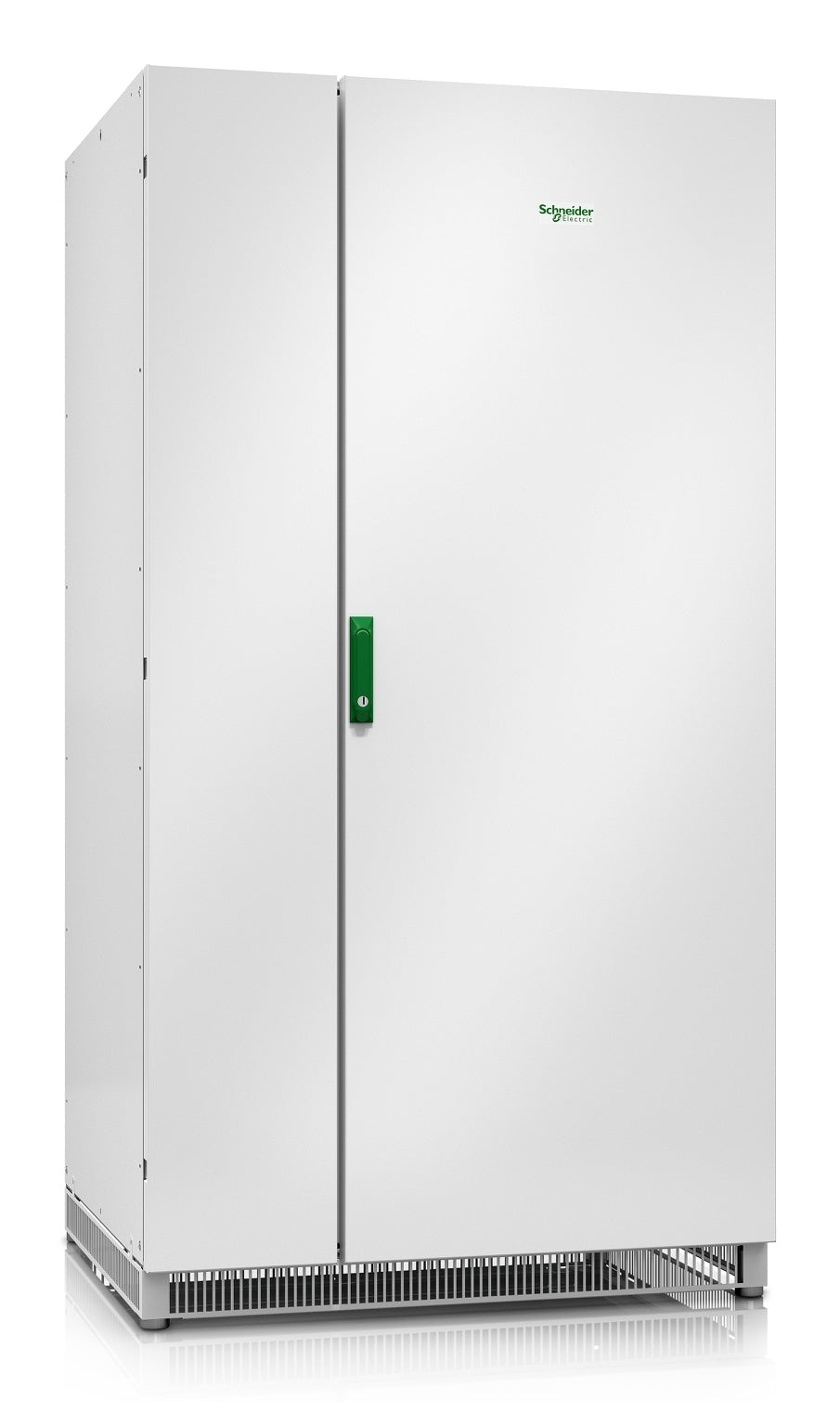

• White industrial-grade electrical cabinet with green handle and Schneider Electric branding for APC E3MCBC10A UPS battery cabinet
1 1

APC

APC E3MCBC10A | Easy UPS 3M Classic Battery Cabinet, IEC, 1000mm, Config A

APC E3MCBC10A | Easy UPS 3M Classic Battery Cabinet, IEC, 1000mm, Config A

E3MCBC10A

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The APC Easy UPS 3M Classic Battery Cabinet (Config A, 1000mm wide, IEC) is an enclosed VRLA battery cabinet designed to extend runtime for APC Easy UPS 3M 3-phase UPS systems in the 60–200 kVA range. Engineered for small to medium data centres and mission-critical environments, it arrives pre-fitted with VRLA batteries and an integrated battery breaker, simplifying deployment and reducing installation time. The enclosed 1000mm-wide cabinet provides safe, organised battery housing while remaining easy to service in the field.

Part of a scalable Config A–E battery cabinet family, this unit gives you flexible runtime extension as your power protection requirements grow. RoHS compliant and mercury free, it meets modern environmental standards. Compatible exclusively with APC Easy UPS 3M 3-phase UPS systems. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- Ships with batteries and integrated battery breaker pre-installed — no additional procurement required
- Enclosed cabinet design ensures safe, organised, and serviceable battery housing
- Compatible with APC Easy UPS 3M 3-phase UPS systems (60–200 kVA range)
- Scalable runtime extension — part of the Config A through E battery cabinet family
- Designed for small to medium data centres and mission-critical applications
- Easy to install, operate, and maintain in the field
- RoHS compliant and mercury free for modern environmental standards
- Includes installation guide for straightforward deployment

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Battery Type: VRLA (Valve Regulated Lead Acid)
- Connector Type: IEC
- Cabinet Width: 1000mm (1002mm actual)
- Cabinet Height: 1895mm (max)
- Cabinet Depth: 845mm (max)
- Net Weight: 1097 kg
- Shipping Weight: 1117 kg
- Shipping Dimensions: 1980mm (H) x 1130mm (W) x 970mm (D)
- Operating Temperature: 0°C – 40°C
- Storage Temperature: -15°C – 40°C
- Includes: Pre-installed VRLA batteries and integrated battery breaker
- Configuration: Config A
- Compliance: RoHS compliant, mercury free

FAQs

Q: Which UPS systems is the E3MCBC10A compatible with?
A: The E3MCBC10A is compatible with APC Easy UPS 3M 3-phase UPS systems in the 60–200 kVA range. It is not designed for use with other APC UPS families.

Q: Does this battery cabinet include batteries?
A: Yes. The E3MCBC10A ships with VRLA (Valve Regulated Lead Acid) batteries and an integrated battery breaker pre-installed, so it is ready to connect to your Easy UPS 3M system without sourcing separate batteries.

Q: What does 'Config A' mean, and how does it differ from other configurations?
A: APC offers the Easy UPS 3M Classic Battery Cabinet in multiple configurations (Config A through E). Each configuration differs in battery count, runtime extension capacity, or physical arrangement to suit different runtime and load requirements. Config A is the base configuration in the scalable family.

Q: What is the cabinet width, and does it fit in a standard data centre aisle?
A: The cabinet is 1000mm wide (1002mm actual), 1895mm tall, and 845mm deep. This is a floor-standing enclosed cabinet — verify your data centre floor space and aisle clearance before ordering.

Q: Can I add more battery cabinets to extend runtime further?
A: Yes. The Easy UPS 3M Classic Battery Cabinet is part of a scalable family spanning Config A through E, allowing you to add additional battery cabinets to extend runtime as your power protection needs grow, subject to UPS compatibility limits.

Q: Can I purchase the E3MCBC10A in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller supplying authentic APC products. Contact us for pricing, lead times, and volume enquiries for the Easy UPS 3M battery cabinet range.
