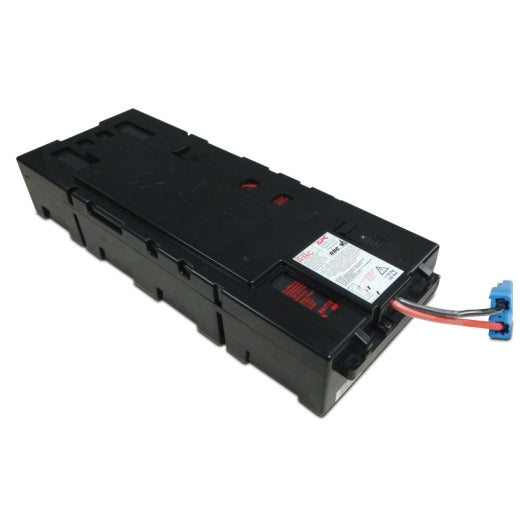

• APC APCRBC115 48V 9Ah black battery with red white labels blue connector
1 1

APC

APC APCRBC115 | Smart-UPS RBC115 Replacement Battery Cartridge, 48V 9Ah

APC APCRBC115 | Smart-UPS RBC115 Replacement Battery Cartridge, 48V 9Ah

Authorised APC Partner

APCRBC115

In stock:92

$474.38 inc. GST
$431.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC RBC115 is a replacement battery cartridge for Smart-UPS rack-mount systems, rated 48V 9Ah. It restores compatible units to their original runtime and is designed for the SMX1500RMI2U, SMX1500RMI2UNC, SMX48RMBP2U and SMX48RMBP2US models.

The cartridge uses a maintenance-free, leakproof sealed lead-acid battery with suspended electrolyte, supplied fully assembled with the required connectors. It is hot-swappable and plug-and-play, so connected equipment stays protected on clean power while the battery is replaced.

Features

- Restores compatible Smart-UPS units to original runtime
- Hot-swappable, keeping protected equipment on clean power during replacement
- Plug-and-play, fully assembled installation
- Maintenance-free, leakproof sealed lead-acid design
- Includes all required connectors, re-usable packaging and documentation
- RoHS and REACH compliant

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Battery type: maintenance-free sealed lead-acid with suspended electrolyte, leakproof
- Output voltage: 48V
- Capacity: 9Ah
- Battery blocks per string: 4
- Mounting: enclosed battery cartridge, internal placement
- Expected battery life: 3-5 years
- Dimensions (H x W x D): approx. 83 x 165 x 419 mm
- Weight: approx. 10.8 kg
- Colour: Black
- Compliance: RoHS, REACH
- Compatible with: SMX1500RMI2U, SMX1500RMI2UNC, SMX48RMBP2U, SMX48RMBP2US

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which APC Smart-UPS models use the RBC115 battery cartridge?
A: The RBC115 is compatible with the SMX1500RMI2U, SMX1500RMI2UNC, SMX48RMBP2U and SMX48RMBP2US.

Q: Can the RBC115 be replaced while the UPS is running?
A: Yes. The cartridge is hot-swappable, so connected equipment remains protected on clean power during replacement.

Q: What is the voltage and capacity of the RBC115?
A: It is a 48V, 9Ah cartridge with four battery blocks per string.

Q: How long does the RBC115 battery typically last?
A: The expected battery life is 3 to 5 years.

Q: Does the battery require any maintenance?
A: No. It is a maintenance-free, leakproof sealed lead-acid design with suspended electrolyte.

Q: What is included in the box?
A: The battery cartridge, all required connectors, re-usable packaging and documentation.
