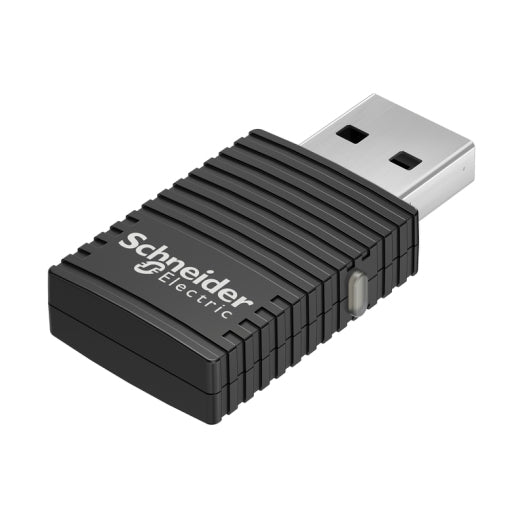

• APC AP9834 WLAN network card with black USB dongle and Schneider Electric branding
1 1

APC

APC AP9834 | USB Wi-Fi Device for Network Management Card 3

APC AP9834 | USB Wi-Fi Device for Network Management Card 3

Authorised APC Partner

AP9834

Stock Status: Enquire

$184.69 inc. GST
$167.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP9834 USB Wi-Fi Device is a compact wireless network adapter that adds Wi-Fi connectivity to APC Network Management Card 3 (NMC3) models AP9641 and AP9643. It plugs into the NMC3 USB port and lets you reach the card's web interface without running wired Ethernet cabling, which suits server rooms, edge sites and retrofit installations where cable runs are impractical. It supports 2.4GHz 802.11b/g/n and 5GHz 802.11a/n.

Wi-Fi is configured through the NMC web interface or command line, and the card operates on either wired or wireless networking at one time. It is intended for use with the NMC3 platform only and is not compatible with the AP9640 or the NMC2 cards (AP9630, AP9631, AP9635). It is also supported on selected APC rack PDUs and Easy UPS NMC slots.

Features

- Replaces wired network cabling, reducing hardware and clutter for more flexible deployment
- Browser-accessible management via the NMC3 web interface
- Remote reboot of equipment, saving technician dispatch
- Wi-Fi configured via the NMC web interface or CLI (requires NMC3 firmware 1.4 or higher)
- Inherits NMC3 security features including RADIUS support, multi-tier user access and strong password rules
- Flash-upgradeable firmware

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Compatible with Network Management Card 3 only: AP9641 and AP9643
- Interface: USB, plugs into the NMC3 USB port
- Wireless standards: 2.4GHz IEEE 802.11b/g/n and 5GHz IEEE 802.11a/n
- Wired or wireless operation, not both at once; wireless is off by default
- Only one Wi-Fi Device can be connected per card
- Dimensions (unpackaged): 40 x 20 x 7.5 mm, weight 6 g
- Dimensions (packaged): 235 x 142 x 13 mm, weight 23 g
- Operating and storage temperature: -40°C to +85°C (optimal RF performance from -10°C to +65°C)
- Humidity: 95% maximum, non-condensing
- Current draw with Wi-Fi on and connected: typically 90 mA, maximum 120 mA at 5V
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Which APC cards is the AP9834 compatible with?
A: It works with Network Management Card 3 models AP9641 and AP9643 only. It is not compatible with the AP9640 or the NMC2 cards AP9630, AP9631 and AP9635.

Q: Can the card use wired Ethernet and Wi-Fi at the same time?
A: No. The card operates on either wired or wireless networking, not both. Wireless is disabled by default and must be enabled during configuration.

Q: Which Wi-Fi bands and standards are supported?
A: The AP9834 supports 2.4GHz IEEE 802.11b/g/n and 5GHz IEEE 802.11a/n.

Q: How is the Wi-Fi device configured?
A: Wi-Fi is set up through the NMC web interface or the command line. NMC3 firmware version 1.4 or higher is required.

Q: Can I connect more than one Wi-Fi device to a card?
A: No. Only one USB Wi-Fi Device can be connected to a Network Management Card 3 at a time.

Q: Does it need a separate power supply?
A: No. It is powered from the NMC3 USB port, drawing typically 90 mA (maximum 120 mA) at 5V when Wi-Fi is on and connected.
