Eaton MBP11Ki31 | HotSwap MBP Maintenance Bypass PDU, 11000VA, 3:1, 4x C19

Eaton MBP11Ki31 | HotSwap MBP Maintenance Bypass PDU, 11000VA, 3:1, 4x C19

Authorised Eaton Partner

MBP11KI31

Stock Status: Enquire

$1,613.32 inc. GST
$1,466.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

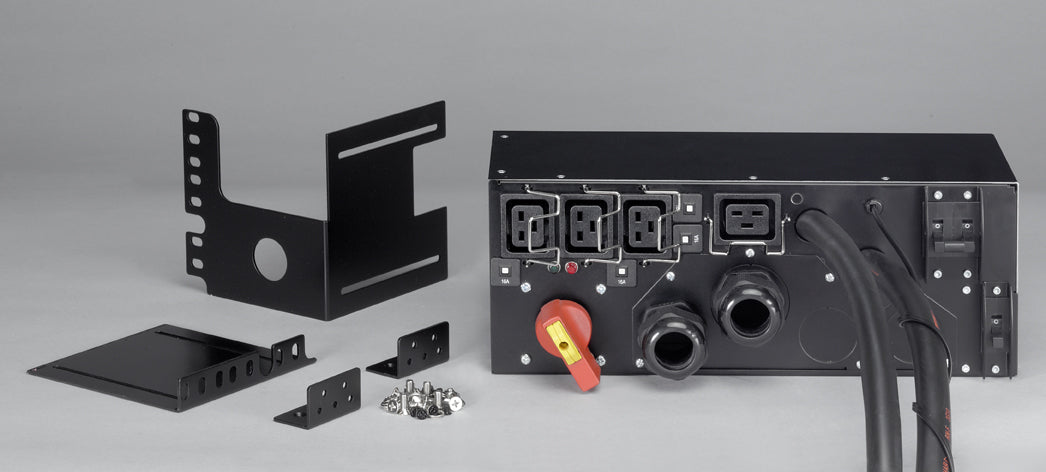

The Eaton HotSwap MBP 11000i 3:1 is a 3U rack-mount maintenance bypass PDU rated at 11000 VA, built for Eaton 9PX 3:1 (three-phase in, single-phase out) 6, 8 and 11 kVA UPS systems. It lets technicians service or replace the UPS without interrupting power to connected loads. This model has a hardwired 346-415V three-phase input and a hardwired output alongside four IEC C19 outlets.

A rotary bypass switch and LED indication make it simple to see and control the power path during maintenance. Colour-coded input and output connections reduce wiring errors, and when paired with a 9PX or 9SX UPS (6000 VA and above), bypass status is shown on the UPS LCD screen. It can be mounted in a 19-inch rack, on a wall, or directly on compatible Eaton 9PX/SX UPS units.

Features

- Allows UPS maintenance or replacement without interrupting power to the load
- Rotary bypass switch with LED indication
- Colour-coded input and output connections
- Compatible with Eaton 9PX 3:1 UPS models (6, 8 and 11 kVA)
- Bypass status shown on the UPS LCD screen when used with 9PX or 9SX (6000 VA and above)
- Flexible mounting: 19-inch rack, wall, or on Eaton 9PX/SX UPS units

Warranty

Standard UPS (with VRLA batteries): 2-3 year warranty
Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Rating: 11000 VA
- Input: three-phase 346-415V, hardwired (screw terminal)
- Outputs: 4 x IEC C19 plus 1 hardwired output
- Form factor: 3U, 19-inch rack (horizontal mounting)
- Dimensions (W x H x D): 410 x 270 x 185 mm
- Weight: 5.96 kg
- Colour: Black
- Operating temperature: 0 to 40 degrees C
- Switchable and outlet control: No
- Interfaces: no SNMP, Ethernet or serial
- Certification: CE
- Includes: rack-mounting kit, cable locking system, user manual

FAQs

Q: Which UPS models is the MBP11KI31 compatible with?
A: It is designed for Eaton 9PX 3:1 (three-phase input, single-phase output) UPS models rated 6, 8 and 11 kVA.

Q: What type of input connection does it use?
A: The input is hardwired via screw terminals and accepts three-phase 346-415V supply, so it requires installation by a qualified electrician.

Q: What outputs does this model provide?
A: It provides four IEC C19 outlets plus one hardwired output for connecting protected loads.

Q: Can I service or replace the UPS without shutting down my equipment?
A: Yes. The rotary bypass switch transfers the load to the incoming supply so the UPS can be serviced or replaced without interrupting power to connected loads.

Q: How can it be mounted?
A: It is a 3U unit that mounts in a 19-inch rack, on a wall, or on compatible Eaton 9PX/SX UPS units.

Q: Does it offer network monitoring or remote switching?
A: No. It has no SNMP, Ethernet or serial interface and is not switchable, but bypass status can be displayed on the LCD of a 9PX or 9SX UPS (6000 VA and above).
