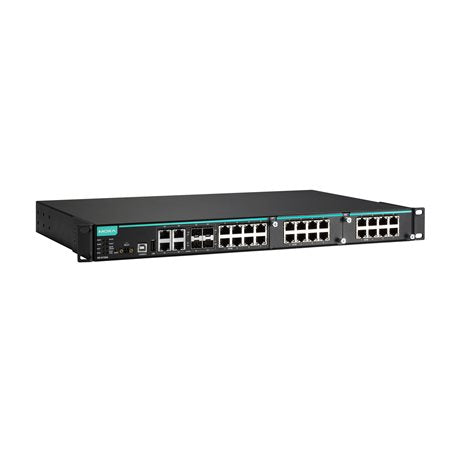

• Moxa IKS-6728A-4GTXSFP-48-T black switch with teal label and Ethernet ports
1 1

Moxa

Moxa IKS-6728A-4GTXSFP-48-T | IKS-6728A Modular Managed Switch, 4x Gigabit Combo, 48VDC, No PoE

Moxa IKS-6728A-4GTXSFP-48-T | IKS-6728A Modular Managed Switch, 4x Gigabit Combo, 48VDC, No PoE

Authorised Moxa Partner

IKS-6728A-4GTXSFP-48-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The IKS-6728A-4GTXSFP-48-T is a modular managed Layer 2 industrial rackmount Ethernet switch with 8 built-in 10/100BaseT(X) ports, 4 Gigabit copper/SFP combo ports and 2 slots for Fast Ethernet modules. It runs from a single isolated 48 VDC power input (36 to 72 VDC operating range), has no PoE, and operates from -40 to 75°C, making it suited to substations, transport and other harsh-environment network backbones.

Turbo Ring and Turbo Chain redundancy (recovery under 20 ms at 250 switches), STP/RSTP/MSTP support, 1 kV LAN surge protection and IP30 rack-mount construction with front cabling keep industrial networks resilient and easy to service. The switch is managed through MXstudio for visualised industrial network management.

Features

- Turbo Ring and Turbo Chain with recovery time under 20 ms at 250 switches, plus STP/RSTP/MSTP for network redundancy
- 1 kV LAN surge protection for extreme outdoor environments
- 4 Gigabit combo ports for high-bandwidth uplinks and aggregation
- 40 to 75°C operating temperature range for harsh environments
- Supported by MXstudio for visualised industrial network management
- V-ON enables millisecond-level multicast data and video network recovery
- QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
- IEEE 802.3ad LACP for optimum bandwidth utilisation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) built-in ports
- 4 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- 2 slots for Fast Ethernet modules
- Front cabling, rack mounting, IP30
- 1 isolated 48 VDC power input (36 to 72 VDC operating)
- Power consumption (max.): 28.8 W @ 48 VDC with maximum modules installed
- Input current: 0.6 A @ 48 VDC with maximum modules installed
- Overload current and reverse polarity protection
- 1 relay alarm output, 1 A @ 24 VDC
- Operating temperature: -40 to 75°C
- Dimensions: 440 x 44 x 280 mm
- Weight: 4100 g
- MTBF: 344,767 hrs
- EMI: CISPR 32, FCC Part 15B Class A
- ESD: contact 6 kV, air 8 kV

FAQs

Q: Does the IKS-6728A-4GTXSFP-48-T support PoE?
A: No. This model does not provide PoE. It is a 48 VDC powered switch with 8 built-in 10/100BaseT(X) ports and 4 Gigabit combo ports.

Q: What power input does this model use?
A: It has a single isolated 48 VDC power input with a 36 to 72 VDC operating range. It includes overload current and reverse polarity protection.

Q: What are the 4 Gigabit combo ports?
A: Each combo port can operate as either a 10/100/1000BaseT(X) copper port or a 100/1000BaseSFP port, so you can mix copper and fibre uplinks.

Q: Can I add more Fast Ethernet ports?
A: Yes. The switch has 2 slots for Fast Ethernet modules, which expand the 8 built-in 10/100BaseT(X) ports to suit your deployment.

Q: What operating temperature range does it support?
A: It operates from -40 to 75°C with no fan, suitable for industrial cabinets and outdoor enclosures.

Q: Which redundancy protocols does it support?
A: It supports Turbo Ring and Turbo Chain, as well as STP, RSTP and MSTP. Turbo Ring recovery is under 20 ms at 250 switches.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
