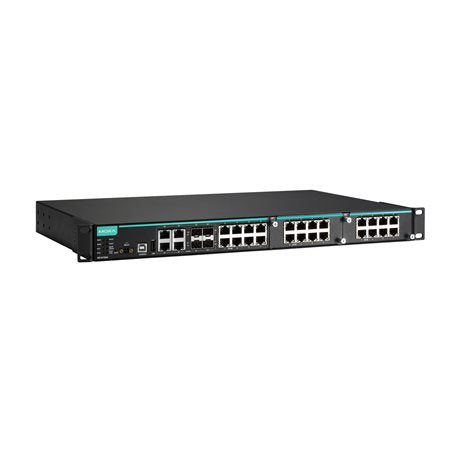

Moxa IKS-6728A-4GTXSFP-24-24-T | IKS-6728A Modular Managed Switch, 4x Combo SFP, Dual 24VDC, -40-75C

Authorised Moxa Partner

SKU:IKS-6728A-4GTXSFP-24-24-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa IKS-6728A-4GTXSFP-24-24-T is a modular managed industrial Ethernet switch with 8 Fast Ethernet RJ45 ports, 4 Gigabit combo ports (copper or SFP) and 2 slots for Fast Ethernet interface modules. It is built for harsh industrial deployments, with two isolated 24 VDC power supply inputs and an extended -40 to 75°C operating temperature range.

Management and redundancy features include STP, RSTP and MSTP, VLAN, CoS and 802.1X authentication. Front cabling simplifies installation in cabinets, and the two module slots allow the port mix to be expanded or adapted as the network grows.

Features

- Modular design with 2 Fast Ethernet module slots for flexible port expansion
- Combo Gigabit ports supporting copper or SFP fibre
- Redundant isolated 24 VDC power inputs
- Extended -40 to 75°C operating temperature for harsh environments
- Managed switch with STP/RSTP/MSTP, VLAN, CoS and 802.1X support
- Front cabling for easier installation and maintenance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 4 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- 2 slots for Fast Ethernet interface modules
- Front cabling
- 2 isolated 24 VDC power supplies
- Operating temperature: -40 to 75°C
- Standards: IEEE 802.1D-2004 STP, 802.1p CoS, 802.1Q VLAN, 802.1s MSTP, 802.1w RSTP, 802.1X authentication, 802.3 10BaseT, 802.3ab 1000BaseT(X)

FAQs

Q: What power input does the IKS-6728A-4GTXSFP-24-24-T use?
A: It has two isolated 24 VDC power supply inputs, allowing redundant power connections.

Q: What temperature range is this switch rated for?
A: This model operates from -40 to 75°C, suited to harsh industrial environments.

Q: How many ports does it have and can they be expanded?
A: It provides 8 x 10/100BaseT(X) RJ45 ports and 4 Gigabit combo ports (10/100/1000BaseT(X) or 100/1000BaseSFP). Two slots accept Fast Ethernet interface modules for further expansion.

Q: Can the combo ports be used with fibre?
A: Yes. Each of the four combo ports supports either copper (10/100/1000BaseT(X)) or an SFP module (100/1000BaseSFP).

Q: Which redundancy and VLAN standards does it support?
A: It supports IEEE 802.1D-2004 STP, 802.1w RSTP, 802.1s MSTP, 802.1Q VLAN, 802.1p CoS and 802.1X authentication.

Q: Does this switch provide PoE?
A: No PoE is listed for this model. It is a modular managed switch with 24 VDC redundant power inputs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
