Description

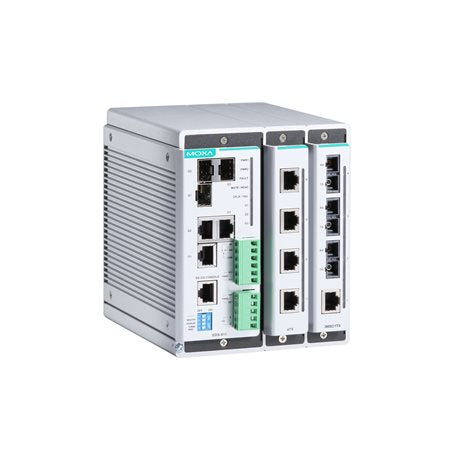

The Moxa EDS-611 is a compact modular managed Ethernet switch for industrial automation networks, with 3 Gigabit combo ports (10/100/1000BaseT(X) or 100/1000BaseSFP) and 2 slots for 4-port Fast Ethernet interface modules. This standard temperature model operates from 0 to 60 °C and supplies up to 11 ports in total once both module slots are populated.

The interface modules are hot-swappable and available in copper and fibre combinations, so the port mix can be tailored to the application and changed without interrupting the network. Interface modules are not included with this switch. Turbo Ring, Turbo Chain and STP/RSTP/MSTP provide network redundancy, while TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH support secure management.

Features

- Modular design with 4-port copper and fibre module combinations
- Hot-swappable media modules for continuous operation
- Turbo Ring and Turbo Chain with recovery time under 20 ms at 250 switches
- STP, RSTP and MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH for network security
- Lock port function blocks unauthorised access based on MAC address
- Port mirroring for online debugging

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 3 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo Gigabit ports
- 2 slots for 4-port Fast Ethernet interface modules (copper or fibre)
- Up to 11 ports in total (8 Fast Ethernet + 3 Gigabit)
- Operating temperature 0 to 60 °C (standard temperature model)
- Digital inputs: +13 to +30 V for state 1, -30 to +3 V for state 0, max. 8 mA
- Alarm contact: relay output, 1 A @ 24 VDC
- Layer 2 managed switch
- Interface modules not included

FAQs

Q: Does the Moxa EDS-611 include interface modules?
A: No. The EDS-611 has 2 empty module slots, and the 4-port Fast Ethernet interface modules are selected and ordered separately.

Q: How many ports can the EDS-611 support?
A: With both slots fitted with 4-port Fast Ethernet modules, the switch provides 8 Fast Ethernet ports plus the 3 Gigabit combo ports, for up to 11 ports in total.

Q: Can the Gigabit ports use fibre?
A: Yes. Each of the 3 Gigabit combo ports can run as 10/100/1000BaseT(X) copper or as a 100/1000BaseSFP fibre port.

Q: What operating temperature does this model support?
A: This is the standard temperature model, rated for 0 to 60 °C.

Q: Can the media modules be changed while the switch is running?
A: Yes. The interface modules are hot-swappable, so they can be added or replaced without interrupting the network.

Q: Which redundancy protocols does the EDS-611 support?
A: It supports Turbo Ring and Turbo Chain, with recovery time under 20 ms at 250 switches, as well as STP, RSTP and MSTP.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
