Moxa EDS-4012-8P-4GS-LVA | EDS-4012 8-Port PoE+ Managed Switch, 4x SFP, 48VDC

Authorised Moxa Partner

SKU:EDS-4012-8P-4GS-LVA

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

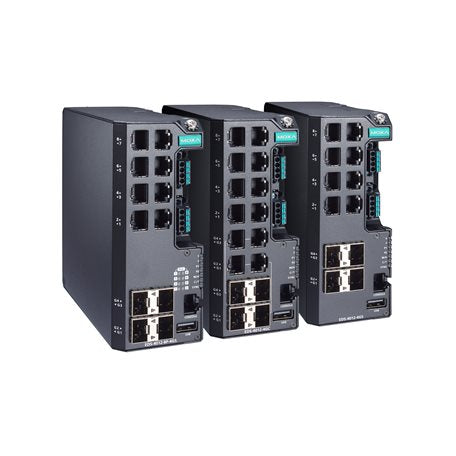

The EDS-4012-8P-4GS-LVA is an industrial Layer 2 managed Ethernet switch with 8 10/100BaseT(X) 802.3bt PoE ports and 4 100/1000BaseSFP ports. Powered by redundant dual 48 VDC inputs through the pre-installed LV power module, it delivers up to 90 W per PoE port with a maximum 240 W total PD power budget, and operates from -10 to 60°C. Its metal DIN-rail housing suits control cabinets and field installations.

The switch supports Turbo Ring v2, Turbo Chain, MRP and RSTP/MSTP redundancy, hardware-based IEEE 1588v2 PTP time synchronisation, and EtherNet/IP, Modbus TCP and PROFINET IO Device protocols. IEC 62443-4-2 Security Level 2 cybersecurity and certifications for rail, traffic control and power substation environments make it well suited to demanding industrial networks.

Features

- 802.3bt PoE on all 8 copper ports, up to 90 W per port
- Hardware-based IEEE 1588v2 PTP time synchronisation
- Turbo Ring v2, Turbo Chain, MRP, RSTP and MSTP network redundancy
- Supports EtherNet/IP, Modbus TCP and PROFINET IO Device protocols
- IEC 62443-4-2 Security Level 2 cybersecurity
- Certified for rail (EN 50121-4), traffic control (NEMA TS2) and power substation (IEC 61850-3, IEEE 1613) environments
- Redundant dual power inputs with modular power supply
- Relay alarm output and digital input for fault signalling

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) PoE ports (802.3bt, RJ45)
- 4 x 100/1000BaseSFP ports
- Up to 90 W PoE per port, 240 W maximum total PD power
- Redundant dual 48 VDC power inputs (44 to 57 VDC), more than 52 VDC recommended for PoE+ output
- Pre-installed PWR-101-LV-BP-I power module
- MAC table size 16 K, 256 VLANs, 512 IGMP groups, 4 priority queues
- 1 MB packet buffer, 9.216 KB jumbo frame
- 1 relay alarm output and 1 digital input
- RS-232 console port (8-pin RJ45)
- Metal housing, IP40, DIN-rail mounting, wall mounting with optional kit
- Dimensions 55 x 140 x 120 mm, weight 827 g
- Operating temperature -10 to 60°C, humidity 5 to 95% non-condensing
- MTBF 799,780 hours (Telcordia SR-332)
- 5-year warranty

FAQs

Q: How much PoE power does this switch provide?
A: Each of the 8 PoE ports supports 802.3bt at up to 90 W, with a maximum total PD power consumption of 240 W at 48 VDC input.

Q: What power input does the EDS-4012-8P-4GS-LVA use?
A: It has redundant dual 48 VDC inputs with an operating range of 44 to 57 VDC. A supply above 52 VDC is recommended for PoE+ output.

Q: What is the operating temperature range?
A: This model operates from -10 to 60°C.

Q: Which network redundancy protocols are supported?
A: It supports Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, STP, RSTP, MSTP, MRP and Link Aggregation.

Q: Does it support industrial automation protocols?
A: Yes. EtherNet/IP, Modbus TCP and PROFINET IO Device are supported.

Q: Is this a managed or unmanaged switch?
A: It is a Layer 2 managed switch, with VLAN, QoS, IGMP and security features including 802.1X, RADIUS, TACACS+, SSH and HTTPS.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
