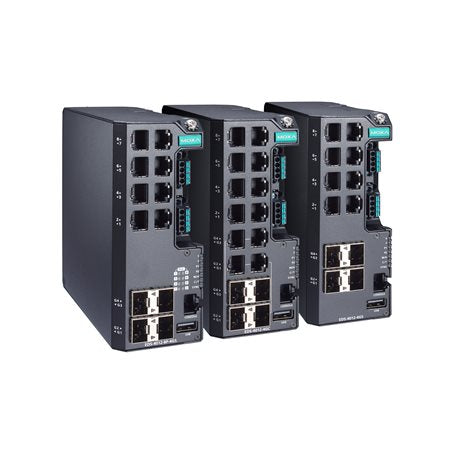

Moxa EDS-4012-4GC-LV-T | EDS-4012 Managed Industrial Switch, 8x FE, 4x GbE Combo

Authorised Moxa Partner

SKU:EDS-4012-4GC-LV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDS-4012-4GC-LV-T is a managed industrial Gigabit Ethernet switch with 8 x 10/100BaseT(X) RJ45 ports and 4 x Gigabit combo ports that accept either RJ45 (10/100/1000BaseT(X)) or SFP (100/1000BaseSFP) connections. The low-voltage power module provides redundant dual 12/24/48 VDC inputs, and the wide-temperature design operates from -40 to 75 C, making it well suited to substations, factory floors, transport and outdoor cabinet deployments.

Built in a compact IP40 metal housing for DIN-rail mounting, it supports Turbo Ring and Turbo Chain redundancy with recovery under 20 ms at 250 switches, plus RSTP/STP. It is developed according to IEC 62443-4-1 and compliant with IEC 62443-4-2 industrial cybersecurity standards, and can be managed with MXstudio.

Features

- Developed according to IEC 62443-4-1 and compliant with IEC 62443-4-2 industrial cybersecurity standards
- Turbo Ring and Turbo Chain with recovery time under 20 ms at 250 switches
- RSTP/STP support for network redundancy
- Gigabit combo ports allow copper or fibre SFP uplinks
- Redundant dual power inputs with overload current and reverse polarity protection
- Wide-temperature design for harsh environments
- Compact housing design to fit into confined spaces
- MXstudio support for visualised industrial network management

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 4 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- Redundant dual 12/24/48 VDC power inputs, 9.6 to 60 VDC operating range
- Pre-installed PWR-100-LV power module
- Operating temperature -40 to 75 C
- MAC table size 16 K, 256 VLANs, VID 1 to 4094
- IGMP groups 512, 4 priority queues, 1 MB packet buffer
- Jumbo frame size 9.216 KB
- 1 alarm relay output (1 A @ 24 VDC), 1 digital input
- RS-232 console port via 8-pin RJ45
- Max. power consumption 10.7 W
- IP40 metal housing, 55 x 140 x 120 mm, 827 g
- DIN-rail mounting, wall mounting with optional kit
- Maritime (DNV, ABS, NK, LR) and hazardous location (ATEX, IECEx, Class I Division 2) approvals
- MTBF 1,036,336 hrs (Telcordia SR332)

FAQs

Q: What uplink options does the EDS-4012-4GC-LV-T offer?
A: It has 4 Gigabit combo ports, each of which can run as 10/100/1000BaseT(X) RJ45 or as a 100/1000BaseSFP slot, so you can mix copper and fibre uplinks.

Q: What power input does this model use?
A: It ships with the PWR-100-LV module, providing redundant dual 12/24/48 VDC inputs with a 9.6 to 60 VDC operating range.

Q: What is the operating temperature range?
A: This wide-temperature model operates from -40 to 75 C (-40 to 167 F).

Q: Which redundancy protocols are supported?
A: Turbo Ring and Turbo Chain (recovery under 20 ms at 250 switches) and RSTP/STP.

Q: How is the switch mounted?
A: It is DIN-rail mounted as standard, with wall mounting available using an optional kit.

Q: Does it include PoE?
A: No. The 8 Fast Ethernet ports and 4 Gigabit combo ports do not provide Power over Ethernet.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
