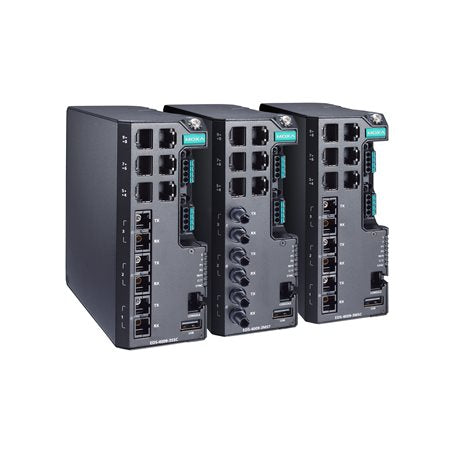

• Moxa EDS-4009-3SSC-HV-T switch with 3 teal-branded ports front view
1 1

Moxa

Moxa EDS-4009-3SSC-HV-T | EDS-4009 Managed Switch, 6x 10/100, 3x SM SC, 110/220V

Moxa EDS-4009-3SSC-HV-T | EDS-4009 Managed Switch, 6x 10/100, 3x SM SC, 110/220V

Authorised Moxa Partner

EDS-4009-3SSC-HV-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The EDS-4009-3SSC-HV-T is a DIN-rail Layer 2 managed industrial Ethernet switch from the EDS-4009 series, with 6 x 10/100BaseT(X) RJ45 ports and 3 x 100BaseFX single-mode SC fibre ports. It is powered by a single 110/220 VAC/VDC input via the pre-installed PWR-105-HV-I module and is rated for -40 to 75°C operation, suiting substations, factory floors and outdoor cabinets.

Redundancy options include Turbo Ring v2, Turbo Chain, RSTP/MSTP and ring coupling, with industrial protocol support for EtherNet/IP, Modbus TCP and PROFINET IO Device. The IP40 metal housing mounts on a DIN rail, and the single-mode ports support typical reach of 40 km over G.652 fibre.

Features

- Layer 2 managed switching with 802.1Q VLAN, IGMP snooping/querier, GMRP/GVRP and port mirroring
- Redundancy with STP, RSTP, MSTP, Turbo Ring v2, Turbo Chain, ring coupling, dual-homing, link aggregation and MRP
- Industrial protocols: EtherNet/IP, Modbus TCP and PROFINET IO Device
- Security with SSH, HTTPS/SSL, RADIUS, TACACS+, ACL, DHCP snooping, MAC sticky and static port lock
- Time synchronisation via SNTP, NTP and hardware-based IEEE 1588v2 PTP with power profiles
- Management via SNMPv1/v2c/v3, RMON and LLDP, with fibre check diagnostics
- Modular power supply design with a high-voltage 110/220 VAC/VDC module
- Wide -40 to 75°C operating range for harsh industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x 10/100BaseT(X) RJ45 ports, auto negotiation, auto MDI/MDI-X
- 3 x 100BaseFX single-mode SC ports, typical distance 40 km, 1310 nm
- Single-mode link budget 29 dB, TX power 0 to -5 dBm, RX power -3 to -34 dBm
- MAC table 16 K, jumbo frame 9.216 KB, 256 VLANs, 4 priority queues, 1 MB packet buffer
- Single power input 110/220 VDC/VAC via pre-installed PWR-105-HV-I module
- Operating voltage 88 to 300 VDC, 85 to 264 VAC, maximum power consumption 12.34 W
- Overload current and reverse polarity protection
- 1 relay alarm output (1 A @ 24 VDC) and 1 digital input
- RS-232 console port (RJ45), reset button, DIP switches for Turbo Ring, Master, Coupler and Reserve
- IP40 metal housing, DIN-rail mounting, wall mounting with optional kit
- Dimensions 55 x 140 x 120 mm, weight 932 g
- Operating temperature -40 to 75°C, humidity 5 to 95% non-condensing
- MTBF 482,263 hrs, 5-year warranty

FAQs

Q: What power input does the EDS-4009-3SSC-HV-T accept?
A: It has a single 110/220 VDC/VAC input via the pre-installed PWR-105-HV-I power module, with an operating range of 88 to 300 VDC or 85 to 264 VAC.

Q: What fibre type and distance do the SC ports support?
A: The three 100BaseFX ports are single-mode with SC connectors, designed for G.652 fibre at 1310 nm with a typical distance of 40 km and a 29 dB link budget.

Q: Does this switch support ring redundancy?
A: Yes. It supports Turbo Ring v2, Turbo Chain, RSTP/MSTP, ring coupling, dual-homing and MRP for fast network recovery.

Q: Is the switch suitable for extreme temperatures?
A: Yes. It is rated for -40 to 75°C operation in a metal IP40 housing, suiting unconditioned cabinets and harsh industrial sites.

Q: How is the switch mounted?
A: It mounts on a DIN rail as standard. Wall mounting is possible with an optional kit.

Q: Which industrial protocols does it support?
A: EtherNet/IP, Modbus TCP and PROFINET IO Device are supported, along with IEEE 1588v2 PTP time synchronisation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
