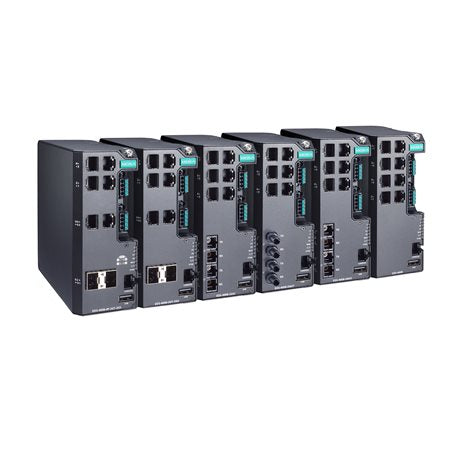

Moxa EDS-4008-2MST-HV | EDS-4008 8-Port Managed Switch, 2x ST Fibre, 110/220V

Authorised Moxa Partner

SKU:EDS-4008-2MST-HV

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDS-4008-2MST-HV is a compact DIN-rail Layer 2 managed industrial Ethernet switch with 6 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode ports with ST connectors. It runs from a single 110/220 VAC/VDC power input and operates across a -10 to 60°C temperature range, making it well suited to factory floors, control cabinets and utility installations that need fibre uplinks alongside copper device connections.

Turbo Ring, Turbo Chain and RSTP/STP provide network redundancy, with recovery times under 20 ms across 250 switches. The modular power supply, wide-range power input and compact housing allow flexible deployment in confined spaces, and IEC 62443-4-2 Security Level 2 certification supports industrial cybersecurity requirements.

Features

- Turbo Ring and Turbo Chain with recovery time under 20 ms at 250 switches
- RSTP/STP support for network redundancy
- Wide range power input options for flexible deployment
- Compact and flexible housing design for confined spaces
- IEC 62443-4-2 Security Level 2 certified for industrial cybersecurity
- Modular power supply design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x 10/100BaseT(X) RJ45 ports with auto negotiation, full/half duplex and auto MDI/MDI-X
- 2 x 100BaseFX multi-mode ports with ST connectors
- Single power input 110/220 VDC/VAC (88 to 300 VDC, 85 to 264 VAC)
- Pre-installed modular power module PWR-105-HV-I
- Operating temperature -10 to 60°C (14 to 140°F)
- Storage temperature -40 to 85°C
- Ambient relative humidity 5 to 95% (non-condensing)
- Overload current and reverse polarity protection
- IEC 62443-4-2 Security Level 2 certified
- DIN-rail mounting

FAQs

Q: What ports does the EDS-4008-2MST-HV provide?
A: It provides 6 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode ports with ST connectors.

Q: What power input does this switch use?
A: It has a single 110/220 VDC/VAC power input, with an operating voltage range of 88 to 300 VDC or 85 to 264 VAC, via the pre-installed PWR-105-HV-I power module.

Q: What redundancy protocols are supported?
A: The switch supports Turbo Ring and Turbo Chain, with recovery time under 20 ms at 250 switches, as well as RSTP/STP.

Q: What is the operating temperature range?
A: It operates from -10 to 60°C (14 to 140°F), which is the standard temperature range for the EDS-4008 series.

Q: How is the switch mounted?
A: It is designed for DIN-rail mounting and has a compact housing suited to confined cabinet spaces.

Q: Is this a managed or unmanaged switch?
A: It is a Layer 2 managed industrial Ethernet switch, supporting redundancy protocols and IEC 62443-4-2 Security Level 2 certified security.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
