Moxa EDS-4008-4P-2GT-2GS-LVA | EDS-4008 Managed PoE Switch, 4x 802.3bt, 2x SFP, LVA

Authorised Moxa Partner

SKU:EDS-4008-4P-2GT-2GS-LVA

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

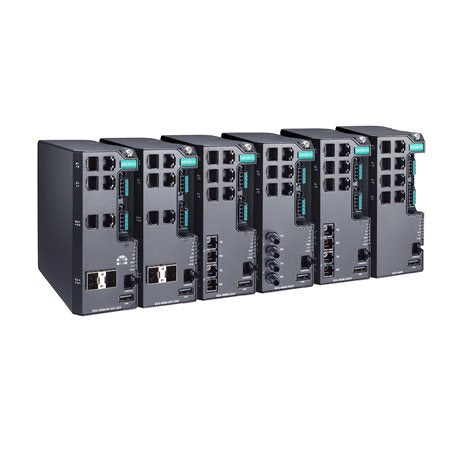

The Moxa EDS-4008-4P-2GT-2GS-LVA is an industrial 8-port Layer 2 managed Gigabit PoE switch from the EDS-4008 series, built for DIN-rail deployment in factory, transport and utility networks. It combines four 10/100 802.3bt PoE ports, two 10/100/1000 copper ports and two 100/1000 SFP slots. The LVA power bypass design feeds the PoE ports directly from the 48 VDC input, delivering up to 90 W per port within a 240 W total PoE budget.

Turbo Ring, Turbo Chain and RSTP/STP provide fast network redundancy, with Turbo Ring and Turbo Chain recovering in under 20 ms at 250 switches. The metal IP40 housing operates from 0 to 60 C and supports DIN-rail mounting, or wall mounting with an optional kit. The EDS-(G)4000 series is certified to IEC 62443-4-2 Security Level 2.

Features

- Layer 2 managed switching for industrial Ethernet networks
- IEEE 802.3bt PoE with up to 90 W output per port
- Power Bypass (LVA) design powers PoE ports directly from the 48 VDC input
- Turbo Ring and Turbo Chain with recovery under 20 ms at 250 switches
- RSTP/STP support for network redundancy
- Two SFP slots for fibre uplinks
- IEC 62443-4-2 Security Level 2 certified EDS-(G)4000 series
- Rugged metal IP40 housing for DIN-rail installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100BaseT(X) 802.3bt PoE ports (RJ45)
- 2 x 10/100/1000BaseT(X) ports (RJ45)
- 2 x 100/1000BaseSFP slots
- PoE standards: 802.3af, 802.3at, 802.3bt
- Up to 90 W per PoE port
- 240 W total PoE budget @ 48 VDC (Power Bypass, LVA)
- Supply voltage: 48 VDC (44 to 57 VDC)
- Input current: 5.42 A @ 48 VDC
- Power consumption without PoE: 11.22 W
- Dimensions: 55 x 140 x 122.5 mm
- Weight: 840 g
- Metal housing, IP40
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: 0 to 60 C (14 to 140 F)
- 5-year warranty

FAQs

Q: How many PoE ports does the EDS-4008-4P-2GT-2GS-LVA have?
A: It has four 10/100BaseT(X) RJ45 PoE ports supporting 802.3af, 802.3at and 802.3bt, with up to 90 W per port.

Q: What is the total PoE power budget?
A: The total PoE budget is 240 W when powered from a 48 VDC input.

Q: What does the LVA power bypass design mean?
A: In the LVA model the PoE ports are powered directly from the 48 VDC input, so the supply must be in the 44 to 57 VDC range.

Q: What uplink options does it offer?
A: Two 10/100/1000BaseT(X) copper ports and two 100/1000BaseSFP slots are provided for uplinks or connecting other devices.

Q: Which redundancy protocols are supported?
A: It supports Turbo Ring and Turbo Chain, with recovery under 20 ms at 250 switches, as well as RSTP/STP.

Q: How is it mounted and what temperature range does it support?
A: It mounts on a DIN rail, or on a wall with an optional kit, and operates from 0 to 60 C (14 to 140 F) in an IP40 metal housing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
