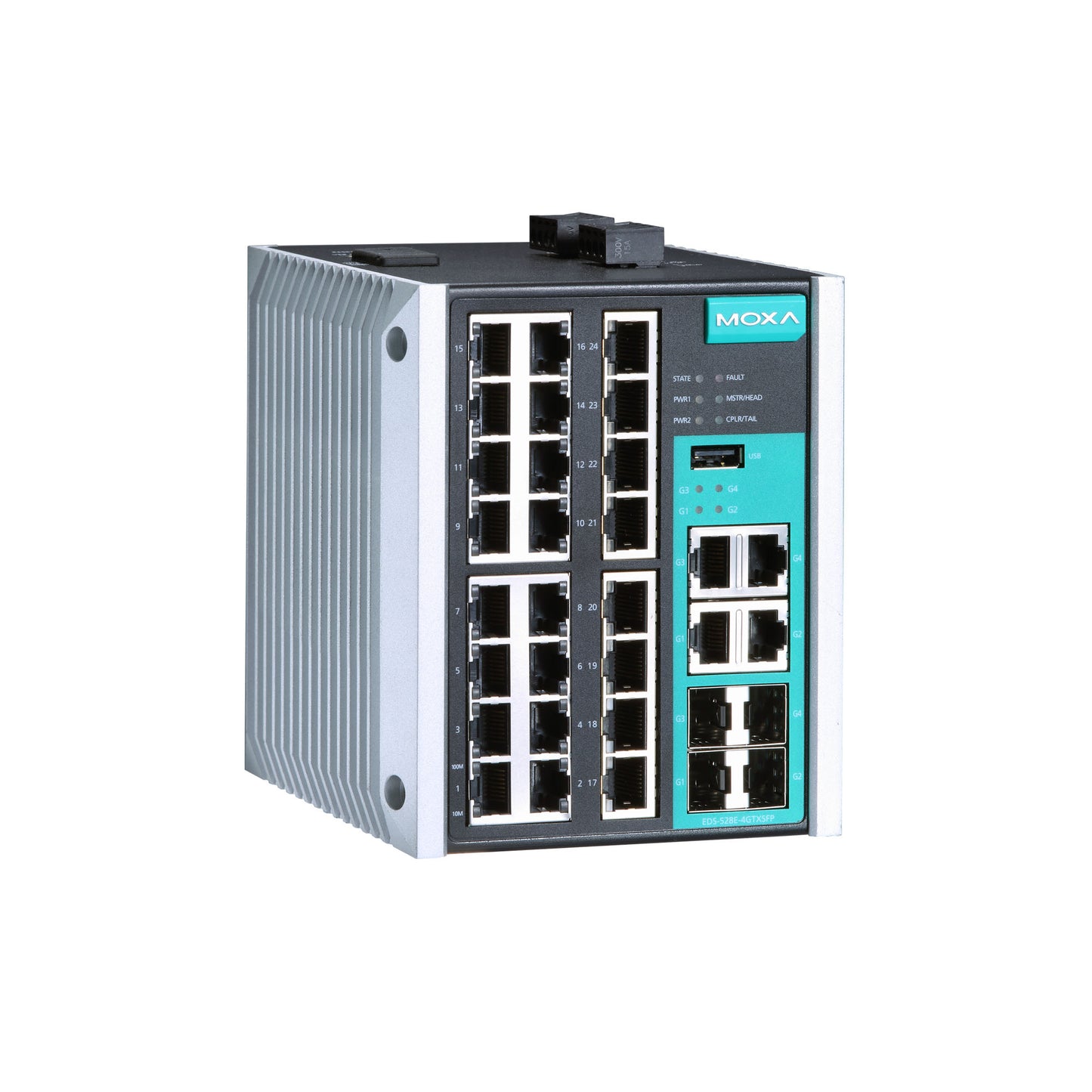

The Moxa EDS-528E-4GTXSFP-HV is a managed Layer 2 industrial Ethernet switch with 24 Fast Ethernet RJ45 ports and 4 Gigabit combo ports that accept either RJ45 copper or SFP fibre. This HV model runs from a single 110/220 VDC/VAC power input and uses the standard -10 to 60°C operating range, making it a good fit for rail, maritime, and oil and gas deployments.

The IP30 metal housing mounts on a DIN rail, with wall mounting available using an optional kit. Turbo Ring and Turbo Chain redundancy, RSTP/STP and MSTP, IEEE 802.1X, RADIUS, TACACS+, SNMPv3, HTTPS and SSH support resilient, secure networks, and EtherNet/IP, PROFINET and Modbus TCP support allow it to integrate with industrial automation systems. SFP modules are purchased separately.

Features

- 4 Gigabit combo ports plus 24 Fast Ethernet ports for copper and fibre connectivity
- Turbo Ring and Turbo Chain redundancy with recovery under 20 ms @ 250 switches, plus RSTP/STP and MSTP
- RADIUS, TACACS+, MAB authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH and sticky MAC addresses
- Security features based on IEC 62443
- EtherNet/IP, PROFINET and Modbus TCP support for device management and monitoring
- MXstudio support for visualised industrial network management
- V-ON for millisecond-level multicast data and video network recovery
- IGMP snooping and GMRP, 802.1Q VLAN and GVRP, QoS and port trunking
- Supports the ABC-02-USB tool for configuration backup and firmware upgrade

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 24 x 10/100BaseT(X) RJ45 ports
- 4 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- Managed Layer 2 switch
- MAC table size: 16 K
- Max. number of VLANs: 64, VLAN ID range 1 to 4094
- IGMP groups: 2048
- Packet buffer size: 1 Mbits
- Priority queues: 4
- Input voltage: 110/220 VDC/VAC, single power input
- Operating voltage: 88 to 300 VDC, 85 to 264 VAC
- Input current: 0.11/0.055 A @ 110/220 VDC, 0.21/0.13 A @ 110/220 VAC
- Overload current and reverse polarity protection
- 1 relay alarm contact output (1 A @ 24 VDC) and 1 digital input
- USB Type A storage port and USB-serial console (Type B)
- IP30 metal housing
- Dimensions (H x W x D): 115.4 x 135 x 137 mm
- Weight: 1850 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 808,428 hrs

FAQs

Q: What power input does the EDS-528E-4GTXSFP-HV use?
A: It has a single 110/220 VDC/VAC power input, with an operating voltage range of 88 to 300 VDC or 85 to 264 VAC.

Q: Do the four Gigabit ports support fibre?
A: Yes. The four Gigabit ports are combo ports that accept either 10/100/1000BaseT(X) RJ45 copper or 100/1000BaseSFP fibre modules.

Q: Are SFP modules included?
A: No. SFP modules must be purchased separately.

Q: What is the operating temperature range?
A: This model is rated for -10 to 60°C, the standard temperature range.

Q: How is the switch mounted?
A: It mounts on a DIN rail, and wall mounting is available with an optional kit.

Q: What redundancy protocols does it support?
A: It supports Turbo Ring and Turbo Chain with recovery under 20 ms @ 250 switches, as well as RSTP/STP and MSTP.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
