Description

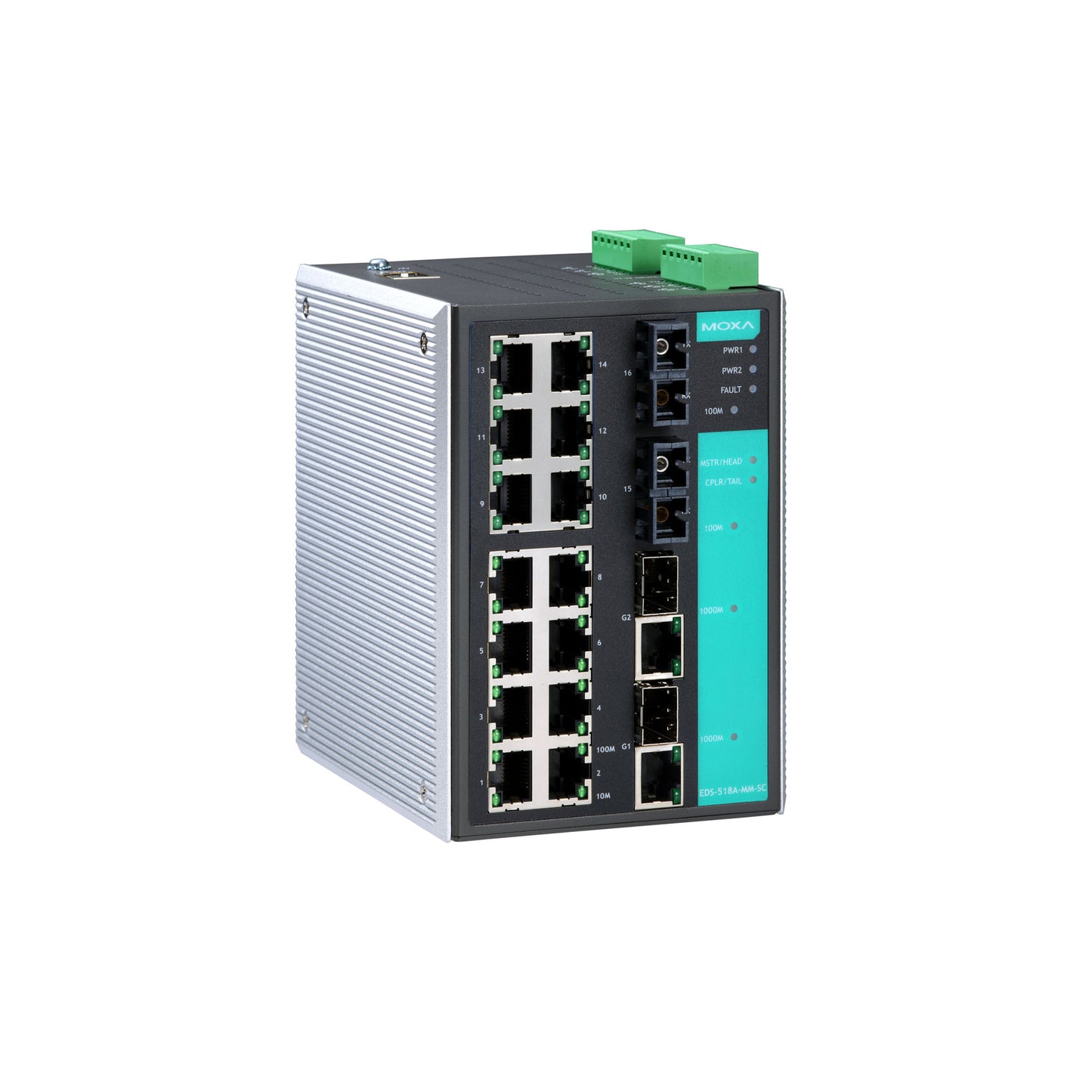

The EDS-518A-MM-SC is an industrial Layer 2 managed Ethernet switch built for factory floors, substations and transport systems. It provides 14 x 10/100BaseT(X) RJ45 ports, 2 x 100BaseFX multi-mode SC fibre ports and 2 combo 10/100/1000BaseT(X) or 1000BaseSFP Gigabit ports, and is rated for 0 to 60°C operation in an IP30 metal housing.

Turbo Ring and Turbo Chain redundancy, together with RSTP, STP, MSTP and LACP, keep industrial networks resilient. The switch has redundant dual 24 VDC power inputs with reverse polarity and overload protection, supports EtherNet/IP and Modbus TCP, and mounts on a DIN rail. ATEX, Class I Division 2 and maritime approvals (DNV, NK, LR) suit demanding environments.

Features

- Turbo Ring v1/v2 and Turbo Chain network redundancy
- RSTP, STP, MSTP, LACP and link aggregation
- Security: SSH, HTTPS/SSL, RADIUS, TACACS+, port lock and broadcast storm protection
- EtherNet/IP and Modbus TCP industrial protocol support
- Redundant dual power inputs with reverse polarity and overload protection
- Combo ports accept SFP-1G series modules
- Management via SNMPv1/v2c/v3, LLDP, RMON, port mirroring, DHCP server/client and Syslog
- ATEX, Class I Div 2 and maritime (DNV, NK, LR) approvals

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 14 x 10/100BaseT(X) RJ45 ports (auto negotiation, auto MDI/MDI-X)
- 2 x 100BaseFX multi-mode SC ports
- 2 x combo 10/100/1000BaseT(X) or 1000BaseSFP ports
- MAC table size: 8 K
- Packet buffer: 2 Mbits
- Max. VLANs: 64 (VID 1 to 4094)
- IGMP groups: 256
- Priority queues: 4
- Redundant dual 24 VDC inputs (12 to 45 VDC operating), 0.52 A @ 24 VDC
- Console port: RS-232 via 10-pin RJ45
- Housing: metal, IP30
- Dimensions (H x W x D): 94 x 135 x 142.7 mm
- Weight: 1630 g
- Installation: DIN-rail mounting, wall mounting with optional kit
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- MTBF: 250,966 hours
- Approvals: EN 62368-1, UL 60950-1, UL 508, ATEX, Class I Division 2, DNV, NK, LR

FAQs

Q: What fibre ports does the EDS-518A-MM-SC have?
A: It has 2 x 100BaseFX multi-mode SC ports, plus 2 combo Gigabit ports that accept either copper or SFP modules.

Q: Can the combo ports use SFP modules?
A: Yes. The 2 combo ports operate as 10/100/1000BaseT(X) copper or 1000BaseSFP and accept SFP-1G series modules.

Q: What is the operating temperature range?
A: This model is rated for 0 to 60°C, so it suits controlled industrial cabinets rather than extended temperature environments.

Q: Does it support ring redundancy?
A: Yes. It supports Turbo Ring v1/v2 and Turbo Chain, as well as RSTP, STP and MSTP.

Q: How is the switch powered?
A: It has redundant dual 24 VDC inputs (12 to 45 VDC operating range) on two removable terminal blocks, with reverse polarity and overload protection.

Q: How is it mounted?
A: It mounts on a DIN rail as standard. Wall mounting is available with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
