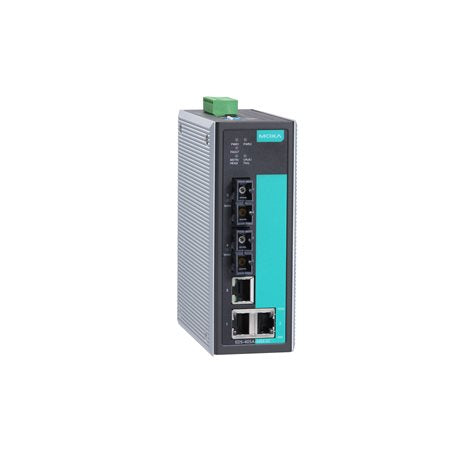

• Moxa EDS-405A-PN-T switch with sleek metallic chassis, teal panel, green bracket
1 1

Moxa

Moxa EDS-405A-PN-T | EDS-405A Managed Switch, 5-Port, PROFINET, -40 to 75C

Moxa EDS-405A-PN-T | EDS-405A Managed Switch, 5-Port, PROFINET, -40 to 75C

Authorised Moxa Partner

EDS-405A-PN-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa EDS-405A-PN-T is a 5-port entry-level managed industrial Ethernet switch with 5 x 10/100BaseT(X) RJ45 ports and PROFINET IO Device support enabled by default. Its wide-temperature design operates from -40 to 75°C, making it suited to factory automation, transport and outdoor control cabinet deployments that need a compact managed switch on the PROFINET network.

Built into an IP30 metal housing for DIN-rail mounting, the switch accepts redundant 12/24/48 VDC power inputs and supports Turbo Ring, Turbo Chain and RSTP/STP redundancy. A GSDML file and SIMATIC STEP 7 device icons are available for PROFINET integration, and the switch can be managed through MXstudio, web browser, CLI or serial console.

Features

- PROFINET enabled by default, with GSDML file and SIMATIC STEP 7 device icons available
- Turbo Ring and Turbo Chain with recovery time under 20 ms @ 250 switches, plus RSTP/STP
- IGMP Snooping, QoS, IEEE 802.1Q VLAN and port-based VLAN
- Redundant dual DC power inputs with overload current and reverse polarity protection
- Wide -40 to 75°C operating range in a rugged IP30 metal housing
- Web browser, CLI, Telnet/serial console, Windows utility and ABC-01 management
- MXstudio support for visualised industrial network management
- DHCP Option 82 for IP address assignment
- Port mirroring for online debugging
- RMON and SNMPv1/v2c/v3 for monitoring and security
- Bandwidth management

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 5 x 10/100BaseT(X) RJ45 ports (auto negotiation, full/half duplex, auto MDI/MDI-X)
- PROFINET IO Device (Slave) enabled by default
- Also supports EtherNet/IP and Modbus TCP industrial protocols
- Operating temperature: -40 to 75°C (wide temp model)
- Storage temperature: -40 to 85°C
- Input voltage: 12/24/48 VDC, redundant dual inputs (9.6 to 60 VDC operating)
- Input current: 0.21 A @ 24 VDC
- MAC table size: 2 K, up to 64 VLANs (VID 1 to 4094)
- Packet buffer: 1 Mbits, 4 priority queues, 256 IGMP groups
- Redundancy: Turbo Ring v1/v2, Turbo Chain, RSTP, STP
- Console port: RS-232 (10-pin RJ45)
- Alarm contact: relay output, 1 A @ 24 VDC
- IP30 metal housing, DIN-rail mounting (wall mounting with optional kit)
- Dimensions (H x W x D): 53.6 x 135 x 105 mm
- Weight: 650 g
- Safety and approvals: UL 508, UL 60950-1, ATEX, Class I Division 2, DNV-GL, NEMA TS2
- MTBF: 1,547,941 hrs (Telcordia)

FAQs

Q: Does the EDS-405A-PN-T support PROFINET?
A: Yes. PROFINET IO Device (Slave) is enabled by default on this PN model. A GSDML file and SIMATIC STEP 7 device icons are available for integration.

Q: What operating temperature range does this switch support?
A: The -T wide-temperature model operates from -40 to 75°C.

Q: What power input does it require?
A: It has redundant dual inputs for 12/24/48 VDC, with an operating range of 9.6 to 60 VDC, via a removable 6-contact terminal block.

Q: Which redundancy protocols are supported?
A: Turbo Ring v1/v2, Turbo Chain (recovery under 20 ms @ 250 switches), RSTP and STP.

Q: How is it mounted?
A: It mounts on a DIN rail. Wall mounting is possible with an optional kit.

Q: Does it support fibre ports?
A: No. This model has 5 x 10/100BaseT(X) RJ45 copper ports only.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
