Moxa EDS-2018-ML-2GTXSFP | EDS-2018-ML 18-Port Unmanaged Switch, 2x Gigabit SFP/RJ45

Authorised Moxa Partner

SKU:EDS-2018-ML-2GTXSFP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

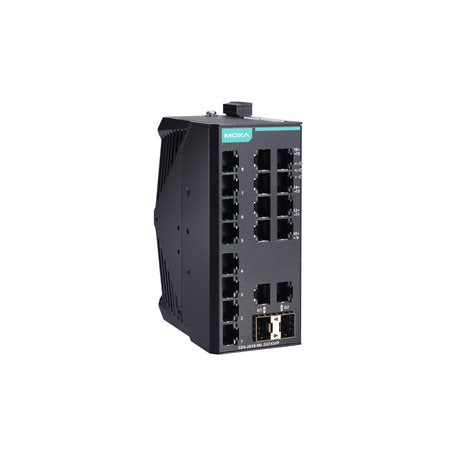

The Moxa EDS-2018-ML-2GTXSFP is an 18-port industrial unmanaged Ethernet switch from the EDS-2000-ML range, with 16 x 10/100BaseT(X) RJ45 ports and 2 x Gigabit combo 10/100/1000BaseT(X) or 100/1000BaseSFP uplink ports. This standard temperature model operates from -10 to 60°C and suits factory floors, control cabinets and other industrial networks needing simple plug-and-play connectivity with flexible copper or fibre aggregation.

Built in an IP30 metal housing for DIN-rail mounting, it accepts redundant dual 12/24/48 VDC power inputs and provides a relay alarm output for power failure and port break warnings. DIP switch settings enable QoS and broadcast storm protection without any software configuration.

Features

- Two Gigabit uplinks with flexible copper/SFP combo interface for high-bandwidth data aggregation
- QoS support to process critical data in heavy traffic
- Relay output warning for power failure and port break alarm
- IP30-rated metal housing
- Redundant dual 12/24/48 VDC power inputs
- Broadcast storm protection and port break alarm via DIP switches
- 100% burn-in tested

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x 10/100BaseT(X) RJ45 ports, auto MDI/MDI-X, auto negotiation
- 2 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p
- MAC table size: 8 K
- Packet buffer size: 4 Mbits
- Processing type: Store and Forward
- Input voltage: 12/24/48 VDC, redundant dual inputs (operating range 9.6 to 60 VDC)
- Input current: 0.277 A @ 24 VDC
- Relay alarm output: 1 A @ 24 VDC
- Overload current and reverse polarity protection
- Housing: Metal, IP30
- Dimensions (W x H x D): 58 x 135 x 95 mm
- Weight: 683 g
- Installation: DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 1,776,132 hrs (Telcordia)
- Hazardous locations: Class I Division 2, IECEx, ATEX
- Maritime: DNV, LR, ABS, NK
- Railway: EN 50121-4
- Traffic control: NEMA TS2

FAQs

Q: Is the Moxa EDS-2018-ML-2GTXSFP a managed switch?
A: No. It is an unmanaged switch configured through DIP switches, which enable QoS, broadcast storm protection and port break alarm without any software setup.

Q: What are the two Gigabit combo ports?
A: Each combo port can run as either a 10/100/1000BaseT(X) RJ45 copper connection or a 100/1000BaseSFP fibre connection, so you can choose copper or SFP uplinks to suit the installation.

Q: What operating temperature range does this model support?
A: This standard temperature model operates from -10 to 60°C. It is not the wide temperature variant.

Q: How is the switch powered?
A: It has redundant dual 12/24/48 VDC power inputs on a removable 6-contact terminal block, with an operating range of 9.6 to 60 VDC. Overload current and reverse polarity protection are supported.

Q: How do I mount the switch?
A: It is designed for DIN-rail mounting. Wall mounting is also possible with an optional mounting kit.

Q: Can the switch alert me to a fault?
A: Yes. A relay output (1 A @ 24 VDC) signals power failure and port break alarms, which can be tied into a monitoring or alarm system.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
