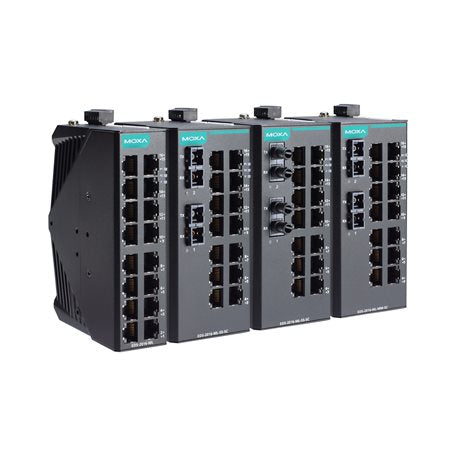

Moxa EDS-2016-ML-MM-SC-T | EDS-2016-ML 16-Port Unmanaged Switch, 2x MM SC, -40 to 75C

Authorised Moxa Partner

SKU:EDS-2016-ML-MM-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDS-2016-ML-MM-SC-T is an industrial unmanaged Ethernet switch with 14 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode ports with SC connectors. It is built for harsh environments, with a -40 to 75°C operating temperature range and an IP30-rated metal housing, making it suited to factory floors, outdoor cabinets and transport installations that need fibre uplinks alongside copper device connections.

Redundant 12/24/48 VDC dual power inputs with overload current and reverse polarity protection help keep the switch running if one supply fails. QoS, broadcast storm protection and port break alarm can be set via DIP switches, and a relay output provides warnings for power failure and port break. The switch mounts on a DIN rail, with wall mounting available using an optional kit.

Features

- Combines 14 copper RJ45 ports with 2 multi-mode SC fibre ports for mixed copper and fibre installations
- Wide -40 to 75°C operating temperature range for harsh industrial environments
- Redundant dual 12/24/48 VDC power inputs for continued operation if one supply fails
- QoS support to process critical data in heavy traffic
- QoS, broadcast storm protection and port break alarm configurable via DIP switches
- Relay output warning for power failure and port break alarm
- IP30-rated metal housing
- DIN-rail mounting for control cabinet installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 14 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX multi-mode SC ports
- Standards: IEEE 802.3, 802.3u, 802.3x flow control, 802.1p Class of Service
- Auto negotiation speed, full/half duplex, auto MDI/MDI-X
- Multi-mode fibre: OM1 50/125 µm, typical distance 4 km, 1300 nm wavelength
- Optical link budget (multi-mode): 12 dB
- Input voltage: 12/24/48 VDC redundant dual inputs, operating voltage 9.6 to 60 VDC
- Power connection: 1 removable 6-contact terminal block
- Overload current and reverse polarity protection
- Metal housing, IP30 rated
- Dimensions: 58 x 135 x 95 mm, weight 648 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -40 to 75°C, humidity 5 to 95% non-condensing
- Safety: UL 61010-2-201, EN 62368-1; EMC: EN 55032/35, EN 61000-6-2/-6-4

FAQs

Q: What fibre cable does the EDS-2016-ML-MM-SC-T use?
A: The two 100BaseFX ports are multi-mode with SC connectors and use OM1 50/125 µm fibre, with a typical distance of 4 km at 1300 nm.

Q: What is the operating temperature range?
A: This -T model operates from -40 to 75°C, suiting it to cold storage, outdoor cabinets and hot industrial sites.

Q: Is this a managed switch?
A: No, it is unmanaged. Features such as QoS, broadcast storm protection and port break alarm are enabled or disabled using the DIP switches.

Q: What power supply does it require?
A: It has redundant dual 12/24/48 VDC inputs via a removable 6-contact terminal block, with an operating voltage of 9.6 to 60 VDC. A power supply is not part of the switch itself.

Q: How is the switch mounted?
A: It is designed for DIN-rail mounting. Wall mounting is possible with the optional wall-mount kit.

Q: Does it alert me to a power failure or link loss?
A: Yes. A relay output provides warnings for power failure and port break alarm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
