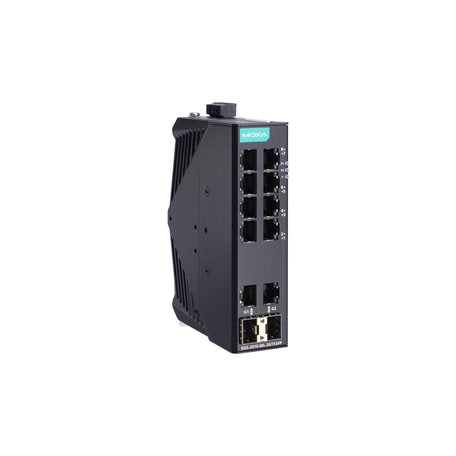

Moxa EDS-2010-ML-2GTXSFP | EDS-2010-ML Unmanaged Industrial Switch, 8-Port, 2x SFP/RJ45, -10 to 60°C

Authorised Moxa Partner

SKU:EDS-2010-ML-2GTXSFP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDS-2010-ML-2GTXSFP is an unmanaged Gigabit Ethernet industrial switch with eight 10/100BaseT(X) RJ45 ports and two combo uplink ports that accept either 10/100/1000BaseT(X) copper or 100/1000BaseSFP fibre. It suits factory floors, control cabinets and field installations where plug-and-play connectivity and high-bandwidth uplinks are needed. This standard temperature model operates from -10 to 60°C, while the -T sibling is rated -40 to 75°C.

Built in an IP30 metal housing for DIN-rail or wall mounting, it takes redundant dual 12/24/48 VDC power inputs with overload current and reverse polarity protection. A relay output signals power failure and port break alarms, and QoS support helps prioritise critical data during heavy traffic.

Features

- Two Gigabit combo uplinks with flexible copper or SFP fibre interface for high-bandwidth aggregation
- Redundant dual 12/24/48 VDC power inputs for continuous operation
- Relay output warning for power failure and port break alarm
- QoS support to process critical data in heavy traffic
- IP30-rated metal housing for industrial environments
- Unmanaged plug-and-play operation with no configuration required
- DIN-rail and wall-mount installation options

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x combo ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
- Switch type: Unmanaged
- Input voltage: 9.6 to 60 VDC, redundant dual inputs (12/24/48 VDC nominal)
- Overload current and reverse polarity protection
- Ingress protection: IP30 metal housing
- Mounting: DIN-rail or wall-mount
- Operating temperature: -10 to 60°C (14 to 140°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Relay output for power failure and port break alarm
- Safety: UL 61010-2-201, EN 62368-1 (LVD)
- EMC: EN 55032/35, EN 61000-6-2/-6-4, FCC Part 15B Class A
- ESD immunity: Contact 6 kV, Air 8 kV
- EFT and surge immunity: Power 2 kV, Signal 2 kV
- MTBF (Telcordia/Bellcore): 2,174,016 hrs

FAQs

Q: What is the operating temperature range of the EDS-2010-ML-2GTXSFP?
A: This model operates from -10 to 60°C. The -T sibling model extends the range to -40 to 75°C for harsher environments.

Q: Can the two uplink ports be used with fibre?
A: Yes. The two combo ports each support either 10/100/1000BaseT(X) copper or 100/1000BaseSFP, so you can fit SFP modules for fibre uplinks or use RJ45 copper.

Q: Is this a managed or unmanaged switch?
A: It is an unmanaged switch, so it works plug-and-play without configuration. It still supports QoS to prioritise critical traffic.

Q: What power inputs does it accept?
A: It has redundant dual DC inputs for 12/24/48 VDC nominal supplies, with a working range of 9.6 to 60 VDC, plus overload current and reverse polarity protection.

Q: How is the switch mounted?
A: It has an IP30 metal housing and can be mounted on a DIN rail or on a wall.

Q: Can it alert me to a power or link failure?
A: Yes. A relay output provides a warning signal for power failure and port break alarms, which can be connected to external monitoring equipment.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
