Moxa EDS-2005-EL-T | EDS-2005-EL 5-Port Fast Ethernet Switch, -40 to 75C

Authorised Moxa Partner

SKU:EDS-2005-EL-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

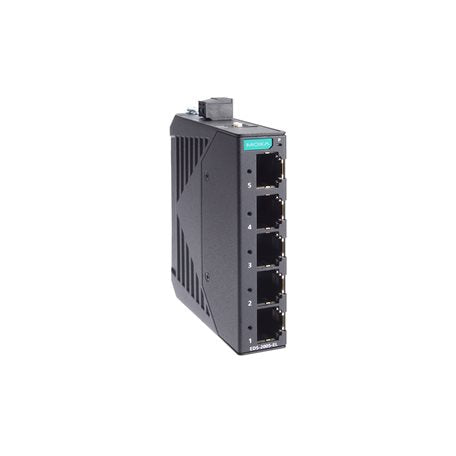

The EDS-2005-EL-T is an unmanaged 5-port Fast Ethernet industrial switch built for plug-and-play connectivity in harsh environments. It provides five 10/100BaseT(X) RJ45 ports with auto-negotiation and auto MDI/MDI-X, and this wide-temperature -T model is rated for operation from -40 to 75 C. The IP40-rated metal housing and compact DIN-rail form factor suit control cabinets, factory-floor cells and outdoor enclosures.

Power is supplied through a single 12/24/48 VDC input on a removable 2-contact terminal block. Quality of Service and Broadcast Storm Protection can be enabled with onboard DIP switches, so critical data is prioritised under heavy traffic without any software configuration. The switch is PROFINET Conformance Class A compliant and carries high-level EMI/EMC immunity for electrically noisy industrial sites.

Features

- Five 10/100BaseT(X) RJ45 ports for entry-level industrial device connectivity
- Compact size for easy installation in tight cabinets
- QoS support to process critical data in heavy traffic
- Broadcast Storm Protection selectable via DIP switch
- IP40-rated rugged metal housing
- Wide -40 to 75 C operating temperature range (-T model)
- 12/24/48 VDC single power input with DIN-rail mounting
- High-level EMI/EMC capabilities for noisy industrial environments
- 100% burn-in tested
- PROFINET Conformance Class A (CC-A) compliant

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 5 x 10/100BaseT(X) RJ45 ports, full/half duplex, auto MDI/MDI-X, auto negotiation
- Unmanaged, store-and-forward switching
- MAC table size: 2K
- Packet buffer size: 768 kbits
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x flow control, IEEE 802.1p Class of Service
- DIP switch configuration: QoS and Broadcast Storm Protection
- Power input: 12/24/48 VDC via 1 removable 2-contact terminal block
- Input current: 0.045 A @ 24 VDC
- Operating temperature: -40 to 75 C (-40 to 167 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, IP40 rating
- Dimensions: 18 x 81 x 65 mm
- Weight: 105 g
- Mounting: DIN-rail, wall mounting with optional kit
- Safety: UL 61010-2-201, EN 62368-1 (LVD)
- EMC: EN 55032/35, EN 61000-6-2/-6-4, FCC Part 15B Class A
- ESD: contact 6 kV, air 8 kV; surge: 2 kV power and signal
- MTBF: 5,258,930 hrs (Telcordia (Bellcore), GB)

FAQs

Q: Is the EDS-2005-EL-T a managed switch?
A: No. It is an unmanaged plug-and-play switch. QoS and Broadcast Storm Protection are enabled with onboard DIP switches rather than through a web or CLI interface.

Q: What does the -T in the model number mean?
A: The -T model is the wide-temperature version, rated for operation from -40 to 75 C. Standard models in the series have a narrower operating range.

Q: What power supply does the EDS-2005-EL-T need?
A: It takes a single 12/24/48 VDC input via a removable 2-contact terminal block. Input current is 0.045 A at 24 VDC. A DC power supply is not included in the package.

Q: How is the switch mounted?
A: It mounts on a DIN rail as standard. Wall mounting is also possible with an optional mounting kit.

Q: Does it support Gigabit or fibre connections?
A: No. All five ports are 10/100BaseT(X) RJ45 copper ports. There are no Gigabit or fibre ports on this model.

Q: Is it suitable for PROFINET networks?
A: Yes. The EDS-2005-EL series is PROFINET Conformance Class A (CC-A) compliant.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
