Moxa EDS-G205-1GTXSFP | EDS-G205 5-Port Gigabit Unmanaged Switch, SFP/RJ45 Combo

Authorised Moxa Partner

SKU:EDS-G205-1GTXSFP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

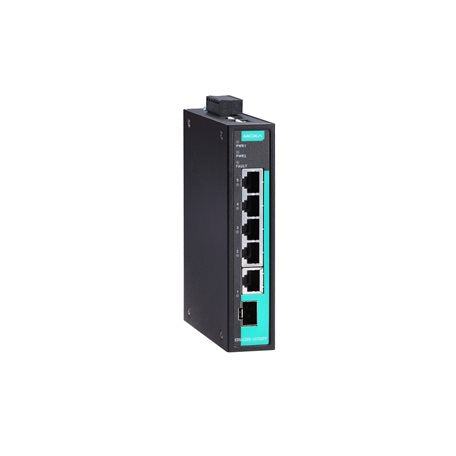

The Moxa EDS-G205-1GTXSFP is an industrial 5-port full Gigabit unmanaged Ethernet switch with 4 x 10/100/1000BaseT(X) ports and 1 combo 10/100/1000BaseT(X) or 100/1000BaseSFP port. The SFP combo port lets you extend a link over fibre for longer distances and improved electrical noise immunity, while the standard model operates across -10 to 60°C and mounts on a DIN rail.

Redundant dual 12/24/48 VDC power inputs and a relay alarm for power failure and port break help keep industrial networks running and visible. Support for 10 KB jumbo frames, broadcast storm protection and IEEE 802.3az energy saving make it a practical plug-and-play choice for machine, panel and field-cabinet networking.

Features

- Fibre-optic option via SFP combo port for extended distance and improved electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports 10 KB jumbo frames
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- IEEE 802.3az energy saving
- 100/1000 SFP speed switching for easy onsite configuration
- DIN-rail or distribution box installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100/1000BaseT(X) RJ45 ports
- 1 x combo port (10/100/1000BaseT(X) or 100/1000BaseSFP)
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x flow control
- Input voltage: 12/24/48 VDC, redundant dual inputs
- Operating voltage: 9.6 to 60 VDC
- Input current: 0.14 A @ 24 VDC
- 1 relay alarm output, 1 A @ 24 VDC
- Reverse polarity protection
- Operating temperature: -10 to 60°C
- 10 KB jumbo frame support
- Connection: 1 removable 6-contact terminal block

FAQs

Q: Is the Moxa EDS-G205-1GTXSFP a managed switch?
A: No. It is an unmanaged switch, so it works plug-and-play without configuration.

Q: What does the combo port support?
A: The combo port can be used as either a 10/100/1000BaseT(X) copper port or a 100/1000BaseSFP fibre port.

Q: What power input does this switch use?
A: It accepts redundant dual 12/24/48 VDC inputs, with an operating voltage range of 9.6 to 60 VDC and reverse polarity protection.

Q: What is the operating temperature range?
A: This standard model operates from -10 to 60°C.

Q: How can I be alerted to a power failure or port break?
A: The switch has a relay alarm output rated at 1 A @ 24 VDC that can signal power failure and port break events.

Q: How is the switch mounted?
A: It can be installed on a DIN rail or in a distribution box.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
