Moxa EDS-510E-3GTXSFP-T | EDS-510E Industrial Managed Switch, 7x 10/100, 3x Gigabit SFP/RJ45, -40 to 75C

Authorised Moxa Partner

SKU:EDS-510E-3GTXSFP-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

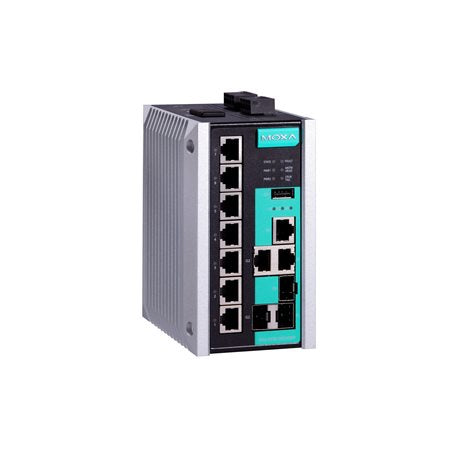

The Moxa EDS-510E-3GTXSFP-T is an industrial DIN-rail managed Gigabit Ethernet switch with seven 10/100BaseT(X) RJ45 ports and three Gigabit SFP/RJ45 combo ports. Rated for extended -40 to 75 C operation in an IP30 metal housing, it suits factory floors, outdoor cabinets and other harsh environments where standard office switches will not survive.

Turbo Ring and Turbo Chain redundancy delivers recovery in under 20 ms at 250 switches, while redundant dual 12/24/48 VDC power inputs keep the switch online if one supply fails. Management over SNMP, RMON and industrial protocols including EtherNet/IP, PROFINET and Modbus TCP makes it straightforward to integrate into automation networks.

Features

- 3 Gigabit Ethernet ports for redundant ring or uplink solutions
- Turbo Ring and Turbo Chain with recovery time under 20 ms at 250 switches
- Security features referencing IEC 62443-4-2 Security Level 1
- EtherNet/IP, PROFINET and Modbus TCP support for device management and monitoring
- QoS (IEEE 802.1p/1Q and TOS/DiffServ)
- Port trunking for improved bandwidth utilisation
- SNMPv1/v2c/v3 and RMON for network monitoring
- Bandwidth management
- Lock port function to block unauthorised MAC addresses
- Automatic warning by exception via email and relay output
- USB interface for configuration, backup and firmware upgrade

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 7 x 10/100BaseT(X) RJ45 ports
- 3 x 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports
- 10 ports in total, managed Layer 2 switch
- Switching capacity: 24 Gbps
- Forwarding rate: 17.9 Mpps
- MAC address table: 8K entries
- Supply voltage: 12/24/48 VDC, redundant dual inputs
- Input current: 0.58 A @ 24 VDC
- Operating temperature: -40 to 75 C (-40 to 167 F)
- IP30 metal housing, DIN-rail mount
- Width: 79.2 mm
- Redundancy: Turbo Ring and Turbo Chain (recovery under 20 ms @ 250 switches), RSTP/STP

FAQs

Q: What are the uplink options on the EDS-510E-3GTXSFP-T?
A: It has three Gigabit combo ports, each of which can run as 10/100/1000BaseT(X) copper or 100/1000BaseSFP fibre, so you can choose copper or SFP uplinks per port.

Q: What operating temperature range does this switch support?
A: It is rated for -40 to 75 C (-40 to 167 F), making it suitable for outdoor cabinets, cold storage and other extreme industrial environments.

Q: Does it support ring redundancy?
A: Yes. It supports Turbo Ring and Turbo Chain with recovery under 20 ms at 250 switches, as well as standard RSTP/STP.

Q: How is the switch powered?
A: It has redundant dual 12/24/48 VDC power inputs, so it continues to operate if one power source fails.

Q: Can it be integrated with industrial automation systems?
A: Yes. EtherNet/IP, PROFINET and Modbus TCP are supported for device management and monitoring, alongside SNMPv1/v2c/v3 and RMON.

Q: How is it mounted?
A: It has an IP30-rated metal housing designed for DIN-rail mounting and is 79.2 mm wide.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
