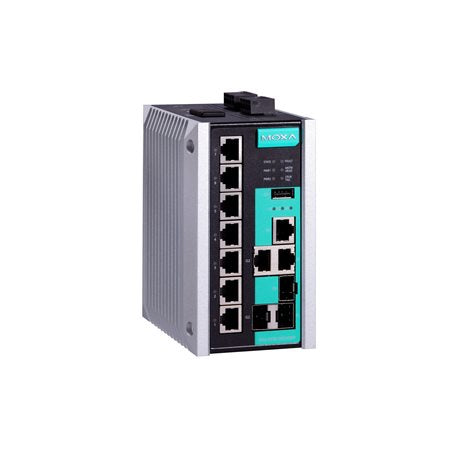

Moxa EDS-510E-3GTXSFP | EDS-510E Industrial Managed Gigabit Switch, 7x 10/100, 3x SFP/RJ45

Authorised Moxa Partner

SKU:EDS-510E-3GTXSFP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDS-510E-3GTXSFP is an industrial Layer 2 managed Ethernet switch with 7 x 10/100BaseT(X) RJ45 ports and 3 Gigabit combo ports that accept either 10/100/1000BaseT(X) copper or 100/1000BaseSFP fibre. Rated for -10 to 60 C standard-temperature operation, it suits factory automation, intelligent transport systems and process control networks that need resilient, manageable connectivity.

Redundant dual 12/24/48/-48 VDC power inputs, an IP30 metal housing and DIN-rail mounting make it suitable for control cabinets. Gigabit Turbo Ring recovery in under 50 ms, together with EtherNet/IP, PROFINET and Modbus/TCP support, lets it integrate into industrial automation environments, while MXstudio provides visualised network management.

Features

- Gigabit Turbo Ring with recovery time under 50 ms
- Configuration via web browser, Telnet/USB console, CLI, MXconfig and ABC-02-USB backup configurator
- SNMPv3, IEEE 802.1X, HTTPS, SSH and MAC address sticky security based on IEC 62443
- EtherNet/IP, PROFINET and Modbus/TCP support for management and monitoring
- MXstudio support for visualised network management
- V-ON for millisecond-level multicast data and video network recovery
- USB interface for configuration, system backup and firmware upgrade

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 7 x 10/100BaseT(X) RJ45 ports
- 3 x Gigabit combo ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
- Layer 2 managed
- 4 priority queues, up to 64 VLANs (VID 1 to 4094)
- 8 K MAC table, 2048 IGMP groups, 1 Mbit packet buffer
- Redundant dual 12/24/48/-48 VDC power inputs, 0.68 A @ 24 V
- Reverse polarity and overload current protection
- 1 relay alarm output (1 A @ 24 VDC) and 1 digital input
- USB Type B serial console and USB Type A storage port for ABC-02-USB
- IP30 metal housing, DIN-rail mounting (wall mount with optional kit)
- Dimensions: 79.2 x 135 x 116 mm, weight 1690 g
- Operating temperature: -10 to 60 C, storage -40 to 85 C
- Humidity: 5 to 95% non-condensing
- Safety UL 508, EMC EN 61000-6-2/-6-4, CISPR 32, FCC Part 15B Class A
- MTBF: 725,532 hrs

FAQs

Q: What type of ports does the EDS-510E-3GTXSFP have?
A: It has 7 x 10/100BaseT(X) RJ45 ports and 3 Gigabit combo ports. Each combo port can be used as 10/100/1000BaseT(X) copper or as a 100/1000BaseSFP fibre port.

Q: What temperature range is this model rated for?
A: This SKU is the standard-temperature model, rated for -10 to 60 C operation with a storage range of -40 to 85 C.

Q: Does it support redundant power?
A: Yes. It has redundant dual 12/24/48/-48 VDC inputs on two removable 4-contact terminal blocks, with reverse polarity and overload current protection.

Q: Which network redundancy protocol does it support?
A: It supports Gigabit Turbo Ring with a recovery time of under 50 ms. Turbo Ring, Master, Coupler and Reserve DIP switches are provided on the unit.

Q: How is the switch mounted?
A: It is DIN-rail mounted as standard in an IP30 metal housing. Wall mounting is available with an optional kit.

Q: Which industrial protocols does it support?
A: EtherNet/IP, PROFINET and Modbus/TCP are supported for management and monitoring, which allows integration with common industrial automation systems.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
