Ubiquiti WAVE-NANO | UISP Wave Nano 60GHz PtMP Station, 2Gbps, AU Plug

Name: Ubiquiti WAVE-NANO | UISP Wave Nano 60GHz PtMP Station, 2Gbps, AU Plug
Brand: Ubiquiti
SKU: WAVE-NANO
Price: 590.57 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:WAVE-NANO

In stock:44

$590.57 inc. GST

$536.88 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

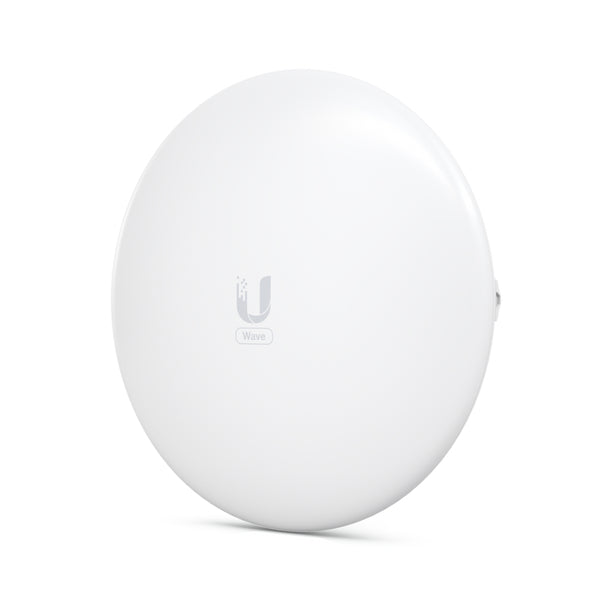

The UISP Wave Nano is a compact 60GHz point-to-multipoint (PtMP) station for connecting customer sites to Wave access points at distances of up to 5 km. It delivers up to 2 Gbps total throughput (1 Gbps duplex) from a 41 dBi antenna with a 1 degree beamwidth, and this SKU ships with the 48V 0.65A gigabit PoE adapter and AU plug.

A built-in 5GHz WiFi 6 back-up link adds resilience if the 60GHz path is disrupted, while integrated GPS, Bluetooth setup through the UISP app and Bridge or Router mode simplify deployment. The IPX6 weatherproof enclosure and pole mount suit outdoor installations from -40 to 60 degrees Celsius, and the unit can also be powered by a UISP Router or UISP Switch.

Features

- Integrated 60GHz radio powered by Wave technology
- 5GHz WiFi 6 back-up link for link resilience
- Built-in GPS for synchronisation
- Bluetooth setup through the UISP app
- Bridge or Router mode with UISP management, SNMP and NTP client
- Built-in tools: antenna alignment, discovery utility, ping, trace route and speed test
- Gigabit PoE adapter included, or power from a UISP Router or UISP Switch
- Weatherproof IPX6 enclosure with pole mount

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 60GHz PtMP station (57 to 71 GHz)
- Total throughput: 2 Gbps (1 Gbps duplex)
- Maximum range: 5 km
- Antenna gain: 41 dBi, 1 degree (3 dB) beamwidth
- Channel bandwidth: 2160 and 1080 MHz
- Modulation: 16QAM, QPSK
- Back-up link: 5GHz 802.11ax (WiFi 6), 5150 to 5875 MHz
- Networking interface: 1 x GbE RJ45 port
- Power: passive PoE, 44 to 54V DC, 48V 0.65A gigabit PoE adapter included (AU plug)
- Maximum power consumption: 20 W
- Processor: dual ARM Cortex-A53 cores at 1 GHz, 512 MB DDR3L memory
- Integrated GPS
- Weatherproofing: IPX6
- Operating temperature: -40 to 60 degrees Celsius
- Dimensions: 256.5 mm diameter x 113.5 mm
- Weight: 932 g without mount, 1.2 kg with mount
- Pole mount: 25 to 63.5 mm pipe outer diameter
- Operating system: airOS, Bridge or Router mode
- Certifications: FCC, IC, CE

FAQs

Q: What is the maximum range of the UISP Wave Nano?
A: The Wave Nano supports links of up to 5 km when connected to a Wave access point. Real-world performance depends on line of sight and environmental conditions.

Q: How is the Wave Nano powered?
A: It uses passive PoE at 44 to 54V DC. This SKU includes a 48V 0.65A gigabit PoE adapter with an AU plug, and the unit can also be powered by a UISP Router or UISP Switch.

Q: What is the 5GHz radio used for?
A: The 5GHz 802.11ax (WiFi 6) radio acts as a back-up link, helping maintain connectivity if the 60GHz path is disrupted.

Q: What throughput can I expect?
A: The Wave Nano delivers up to 2 Gbps total throughput (1 Gbps duplex) over the 60GHz link.

Q: How is the Wave Nano configured and managed?
A: It runs airOS and can be set up over Bluetooth using the UISP app. Ongoing management is through the web UI or UISP, with SNMP and NTP client support.

Q: Is it suitable for outdoor installation?
A: Yes. It has an IPX6 weatherproof enclosure, operates from -40 to 60 degrees Celsius and mounts to poles of 25 to 63.5 mm outer diameter.
