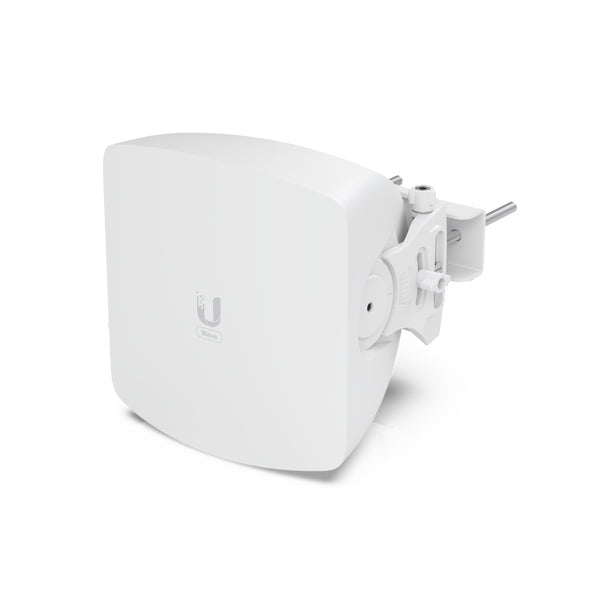

Ubiquiti WAVE-AP | UISP Wave AP 60 GHz PtMP Access Point, 5.4 Gbps, 30°

Name: Ubiquiti WAVE-AP | UISP Wave AP 60 GHz PtMP Access Point, 5.4 Gbps, 30°
Brand: Ubiquiti
SKU: Wave-AP
Price: 1010.38 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:Wave-AP

In stock:46

$1,010.38 inc. GST

$918.53 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The UISP Wave AP is a 60 GHz point-to-multipoint (PtMP) outdoor access point built on Ubiquiti's Wave Technology. It delivers up to 5.4 Gbps total throughput (2.7 Gbps duplex) across a 30° sector with a 24 dBi antenna, and reaches up to 8 km to a Wave Pro or Wave Long-Range station. This SKU is the International (non-US) version, with a 5 GHz backup radio and dual uplinks, one 10G SFP+ and one 2.5GbE RJ45.

The 5 GHz backup radio keeps links up when the 60 GHz path is interrupted, while the built-in Bluetooth radio allows quick setup through the UISP Mobile app. Integrated GPS supports synchronisation, and the IPX6-rated enclosure suits pole-mount outdoor deployments. A 48V 2.5GbE PoE adapter is included in the box.

Features

- 60 GHz PtMP access point powered by Wave Technology
- Up to 5.4 Gbps total throughput (2.7 Gbps duplex)
- 5 GHz backup radio for uninterrupted connectivity
- Bluetooth radio for simplified setup in the UISP Mobile app
- Integrated GPS for synchronisation
- Dual uplink ports: 2.5GbE RJ45 and 10G SFP+
- Rugged aluminium alloy and UV-stabilised polycarbonate enclosure, IPX6 rated
- Includes a 48V 2.5GbE PoE adapter
- Long range, up to 8 km with Wave Pro or Wave Long-Range

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 60 GHz PtMP access point, operating frequency 57 to 71 GHz (depends on regulatory region)
- Total throughput: 5.4 Gbps (2.7 Gbps duplex)
- Antenna: 24 dBi gain, vertically linear polarisation
- Beamwidth: 30° azimuth, 3 dB 3° elevation, 6 dB 4° elevation
- Interfaces: 1 x 2.5GbE RJ45 (100/1000/2500) and 1 x 10G SFP+ (1/10)
- 5 GHz backup radio with Bluetooth and integrated GPS
- Range: up to 8 km to Wave Pro or Wave Long-Range, up to 5 km to Wave Nano, up to 1.3 km to Wave Pico
- Processor: Quad-core ARM Cortex-A53 at 1.4 GHz, 512 MB DDR3L memory
- Power: passive PoE, 44-54V DC or 22-27V DC, 24W maximum consumption
- Power supply: 48V DC, 0.65A 2.5GbE PoE adapter included
- Encryption: WPA2-PSK (AES), bridge network mode
- Weatherproofing: IPX6
- Dimensions: 212 x 205 x 187 mm
- Weight: 2.3 kg
- Mounting: pole mount, 25 to 76 mm pipe outer diameter
- Wind loading: 98 N at 200 km/h
- Requires UISP version 1.5.7 or later
- Certifications: FCC, IC, CE, NDAA compliant

FAQs

Q: What is the maximum range of the Wave AP?
A: Up to 8 km to a Wave Pro or Wave Long-Range station, up to 5 km to a Wave Nano and up to 1.3 km to a Wave Pico.

Q: What happens if the 60 GHz link is interrupted?
A: The built-in 5 GHz backup radio maintains connectivity when the 60 GHz path is interrupted, for example by heavy rain or a temporary obstruction.

Q: What uplink ports does it have?
A: One 2.5GbE RJ45 port (100/1000/2500) and one 10G SFP+ port (1/10).

Q: How is the Wave AP powered?
A: By passive PoE at 44-54V DC or 22-27V DC, with a maximum draw of 24W. A 48V 0.65A 2.5GbE PoE adapter is included.

Q: How is it configured and managed?
A: It is managed through UISP, version 1.5.7 or later. The Bluetooth radio allows initial setup from the UISP Mobile app.

Q: What sector coverage does it provide?
A: A 30° azimuth sector using a 24 dBi antenna, with 3° elevation beamwidth at 3 dB.
